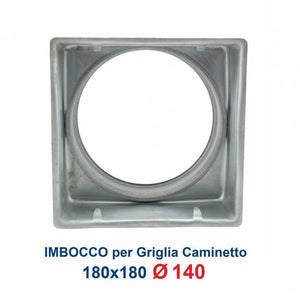

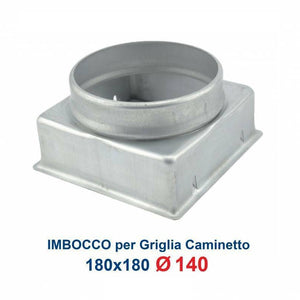

Adapter fitting for chimney opening (18x18 inlet grille, 140mm diameter)
FEATURES:
- 18x18 inlet adapter, 140mm rear diameter.
- The inlet allows for the installation of the 18x18 CHIMNEY GRILLE and then connects to a 140mm diameter air pipe.
- Electro-galvanized steel fitting, 0.6mm thickness

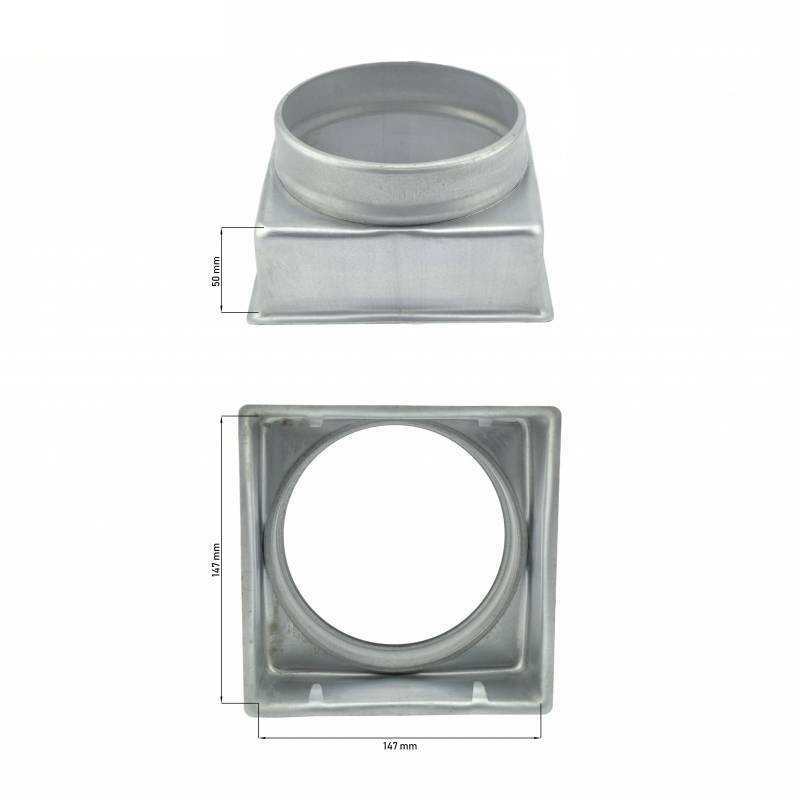

- External dimensions: 150x150 mm
- Internal dimensions: 147x147 mm
- Depth: 55 mm (excluding tube connection)
- Diameter: 140 mm
TECHNICAL DATA SHEET:
| Height | Internal 147 mm - External 150 mm |
| Width | Internal 147 mm - External 150 mm |
| Depth | 55 mm (excluding tube connection) |
| Color | Galvanized steel |
| Seat shape | Square |
| Material | Electro-galvanized steel |
| Connection | Dia. 140mm |
| Optional accessories | 18x18 cm chimney grilles |
< span style='font-size: medium;'>Product Code: IMB1818140< /strong></strong >
