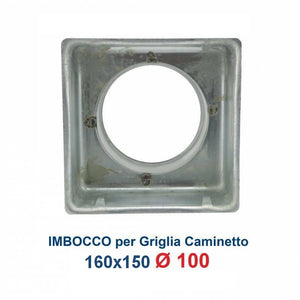

Adapter fitting for fireplace opening (16x15 inlet grill, 100mm diameter)
FEATURES:
- 16x15 inlet adapter, 100mm rear diameter.
- The inlet is used to install the 16x15 FIREPLACE GRILLE version and then connect to the 100mm diameter air duct.
- Electro-galvanized steel fitting, 6/10 thick

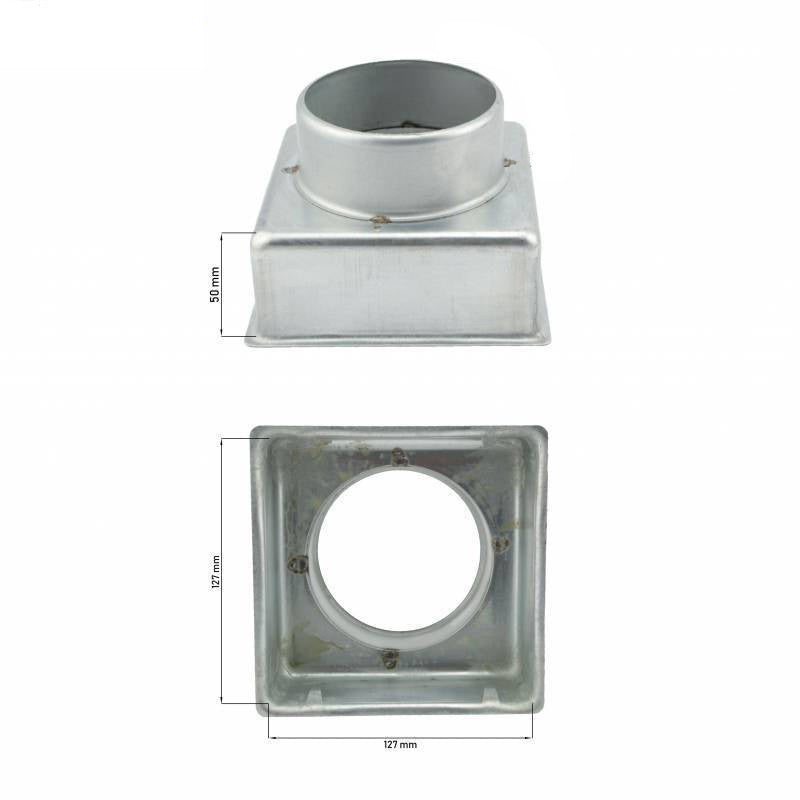

- External dimensions: 130x130 mm
- Internal dimensions: 127x127 mm
- Depth: 55 mm (excluding tube connection)
- Diameter: 100 mm
TECHNICAL DATA SHEET:
| Height | Internal 127 mm - External 130 mm |
| Width | Internal 127 mm - External 130 mm |
| Depth | 55 mm (excluding pipe connection) |
| Color | Galvanized steel sheet |
| Shape | Square |
| Material | Electro-galvanized steel |
| Connection | Dia. 100mm |
| Optional accessories | 16x15 fireplace grilles |
Product code: IMB1615100
