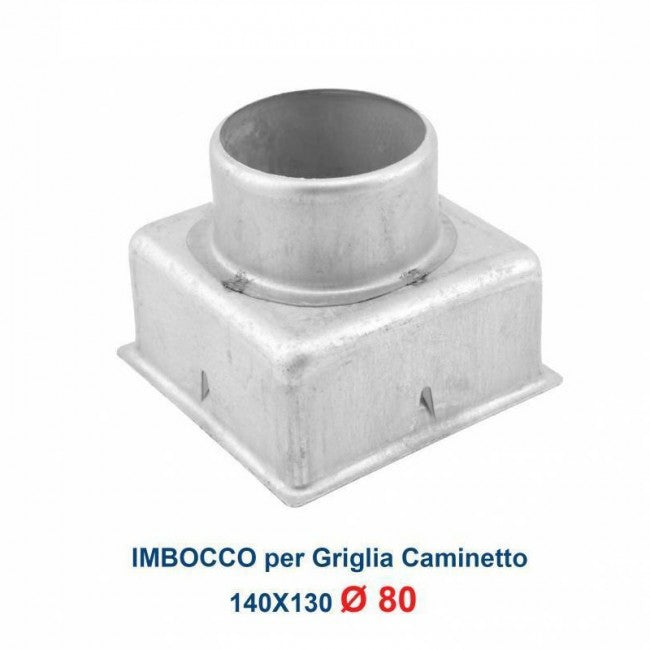

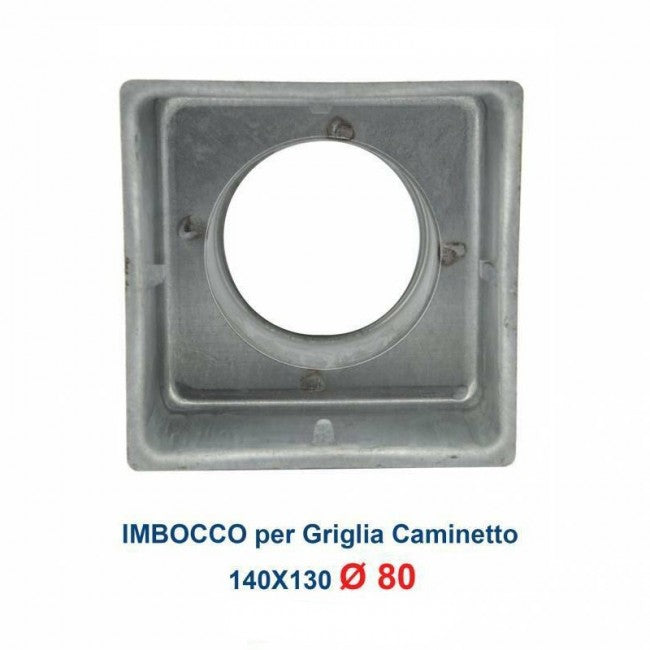

Adapter fitting for fireplace vent (14x13 inlet grille, 80mm diameter)
FEATURES:
- 14x13 inlet adapter, 80mm rear diameter.
- The inlet is used to install the 14x13 version CHIMNEY GRILLE and then connect the 80mm diameter air duct.
- Electro-galvanized steel fitting, 6/10 thickness

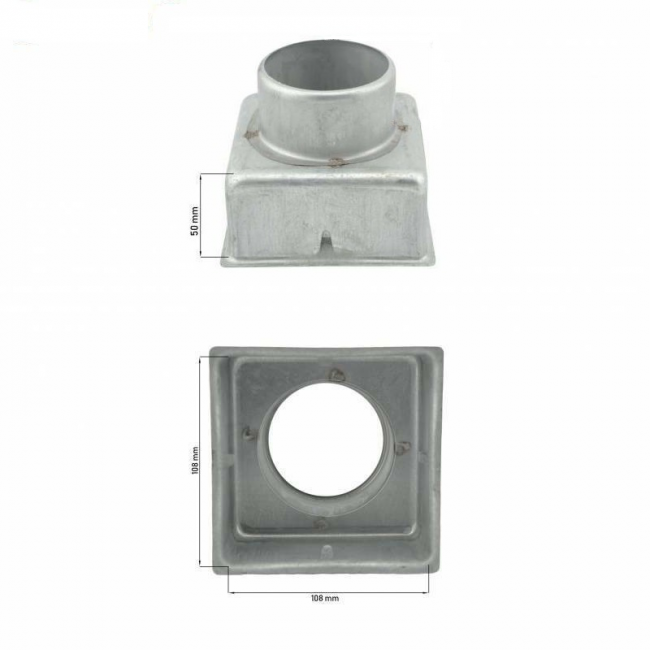

- External dimensions: 111x111 mm
- Internal dimensions: 108x108 mm
- Depth: 55 mm (excluding tube connection)
- Diameter: 80 mm
TECHNICAL SHEET:
| Height | Internal 108 mm - External 111 mm |
| Width | Internal 108 mm - External 111 mm |
| Depth | 55 mm (excluding pipe connection) |
| Colour | Galvanized steel sheet |
| Seat shape | Square |
| Material | Electro-galvanized steel |
| Connection | Dia. 80mm |
| Optional accessories | Fireplace grilles 14x13 cm |
Product code: IMB1413080
