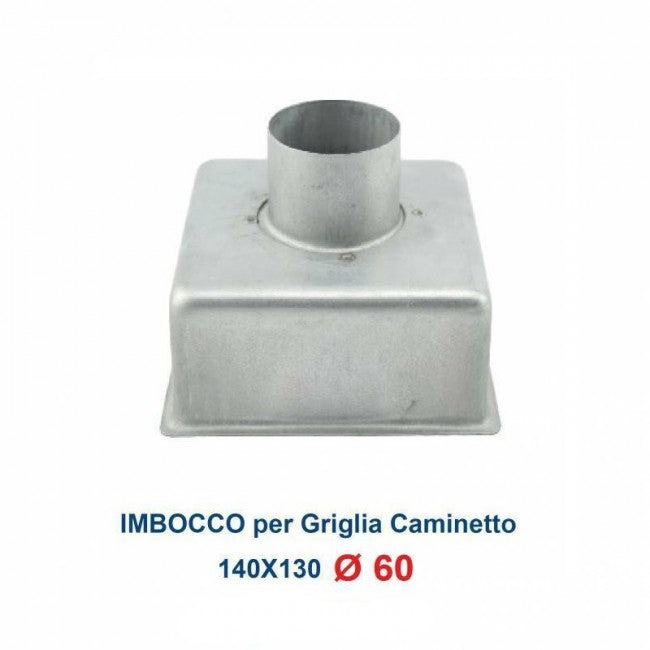

Adapter fitting for fireplace opening (Inlet grille 14x13 diameter 60mm)
FEATURES:
- 14x13 inlet adapter with 80mm rear diameter.
-
The inlet is used to install the 14x13 version of the FIREPLACE GRILLE and then connect the 60mm diameter air pipe.
- Electro-galvanized steel fitting, 6/10 thickness

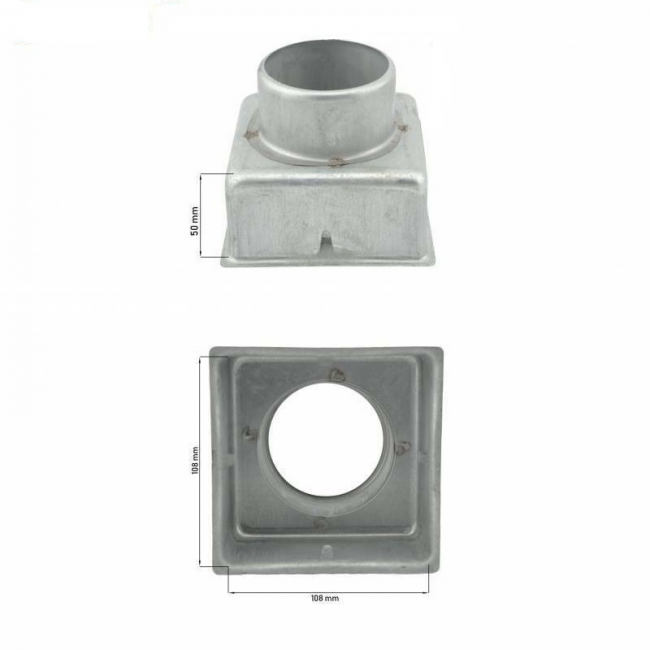

- External dimensions: 111x111 mm
- Internal dimensions: 108x108 mm
- Depth: 55 mm (excluding pipe fitting)
- Diameter: 60 mm
TECHNICAL DATA:
| Height | Internal 108 mm - External 111 mm |
| Width | Internal 108 mm - External 111 mm |
| Depth | 55 mm (excluding tube connection) |
| Color | Galvanized sheet |
| Seat shape | Square |
| Material | Electro-galvanized steel |
| Connection | Diam. 60mm |
| Optional accessories | 14x13 cm fireplace grilles |
Product code: IMB1413060
