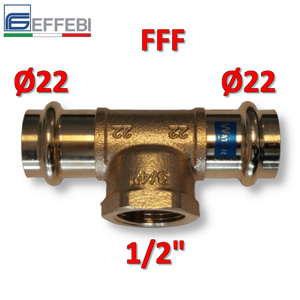

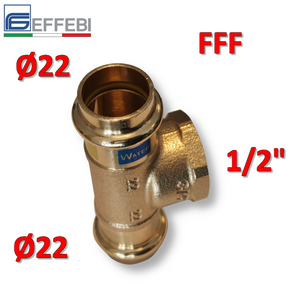

SINGLE COPPER AND BRONZE PRESS FITTING

Ø22 - 1/2″ - 22 mm - FEMALE - FEMALE - TEE

EFFEBI-PRESS® - Unico

EFFEBI-PRESS® UNICO®, the new range of EFFEBI copper press fittings, was born from the desire to continue and strengthen our mission.

EFFEBI-PRESS® UNICO® is a connection system suitable for the construction of domestic methane systems - LPG and domestic water heating systems.
UNICO® is the universal fitting with double Yellow (GAS) and Blue (WATER) marking. The UNICO® series can be used for both gas and water transport systems, consisting of copper-copper and bronze-copper press fittings. A complete range of intermediate fittings that includes 20 types of figures between Copper-Copper press fittings from diameter 12 to 54 mm and Bronze threaded Copper press fittings from ø12 mm - 3/8" to ø54 mm - 2".
The UNICO® series fittings comply with the requirements indicated by the UNI EN 11065 standard for classes 1 (water application) and 2 (gas application) and are characterized by the double yellow and blue marking.
Threaded connections to other systems are made using bronze threaded parts with a press mouth. Male threads comply with UNI EN 10226.

Features:

UNIQUE double use for water and gas
• Double Blue and Yellow marking
that identifies the use
• Reduces stock.
• Simplify code management
• Speed of installation
• Hermetic and resistant hydraulic seal
• High quality gaskets tested and certified
• Complete Copper-Copper and Bronze-Copper range
• Certified quality:
• V-profile series
• Can be used with Presstige series valves

The special gasket is characterized by physico-chemical properties capable of satisfying the hygiene and non-toxicity requirements necessary for applications in contact with drinking water.
The material it is made of complies with both EN 681-1 (water applications) and EN 549 (gas applications).

Product code: RKF130V220422
