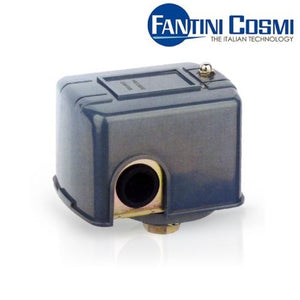

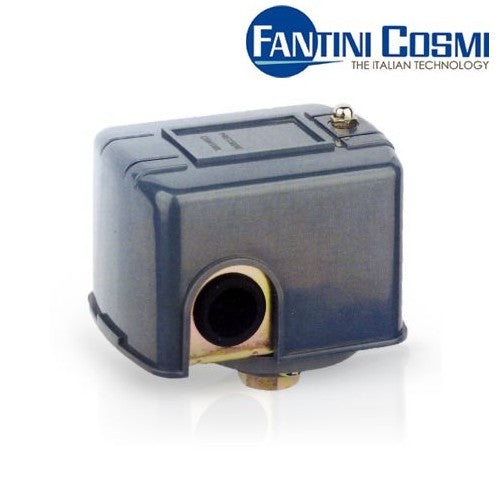

PRESSURE SWITCH for MOTOR CONTROL

FANTINI COSMI B71A

< span style='font-size: 14pt;'>

< img src=' alt='B71A - Fantini Cosmi Motor Control Pressure Switch' />

DESCRIPTION:

Control pressure switches for direct control of electric motors of pumps, compressors or domestic or industrial autoclave units. Suitable for fluids (gases or liquids) chemically compatible with the rubber diaphragm.

REGULATIONS and APPROVALS:

Conformity to CEI EN 60947-4-1 standards

FEATURES:

·          Rubber diaphragm sensing element.

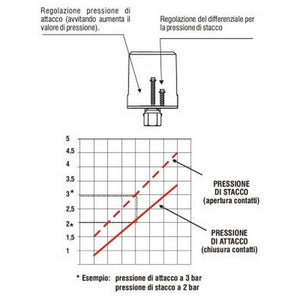

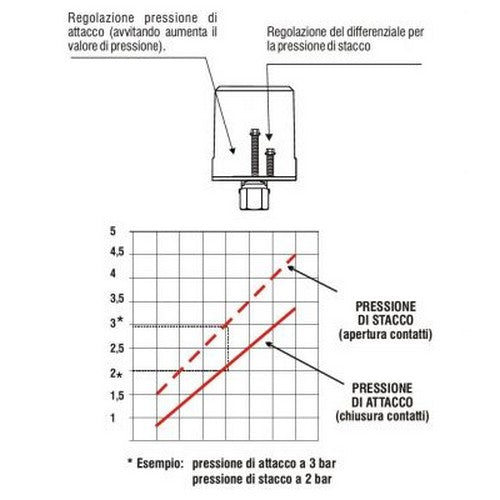

·          Adjustable differential

·          G 1/4 female connection

·          Cover in shockproof thermoplastic material

·          Metal parts in steel.

·          Grounding

·          Connection outlet with 2 cable glands.

·          Maximum controlled fluid temperature 70°C

·          Permissible pressure switch body temperature 60°C.

·          Storage and transport temperature -15 ÷ 60°C.

·          Unit weight 0.35 Kg

Product code: B71A
