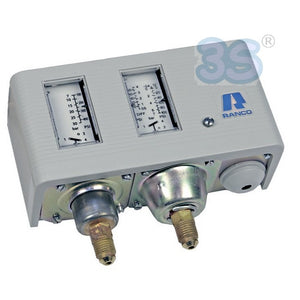

DOUBLE HIGH/LOW PRESSURESTAT
RANCO O17H4701
FEATURES:
RANCO double mechanical refrigeration pressure switch for HIGH or LOW pressure, with single-pole SPDT switch, with automatic reset. High pressure range 7/30 bar - Low pressure -0.3/+7 bar, High differential 3.5 bar - Low differential 0.6/4 bar, Maximum stationary pressure High 35 bar - Low 20 bar, Burst pressure High 128 bar - Low 80 bar. Standard bellows type, 1/4 SAE male connection. Operating ambient temperature -30°C/+55°C. Installation: two threaded holes at the rear of the regulator for M4x6mm screws (supplied). Adjustment: by hexagonal nut with slotted cross head for both range and differential. Devices suitable for use with most common gases. Dimensions: 135 x 49 x 76 mm.
Product Code: O17H4701
