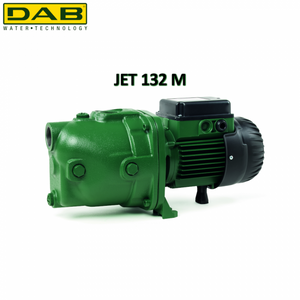

SELF-PRIMING CENTRIFUGAL ELECTRIC PUMP - 132 M - DAB
CAST IRON PUMP BODY
DESCRIPTION:
Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles.
Suitable for use with water with small sandy impurities.
Particularly used for water supply in domestic systems.
Suitable for small agriculture and gardening, for industrial services on a limited scale and where the self-priming function is necessary.
Operating range: from 0.4 to 10.5 m3/h with a head up to 62 meters.
Self-priming: up to 9 meters.
Maximum operating pressure: 8 bar (800 kPa).
Maximum ambient temperature: +40°C.
PUMP CONSTRUCTION FEATURES
Pump body and motor support in cast iron.
Motor support in die-cast aluminum.
Impeller, diffuser, venturi tube and sand guard in technopolymer.
Stainless steel adjustment rings.
Mechanical seal in carbon/ceramic.
MOTOR CONSTRUCTION FEATURES
Asynchronous, closed type, cooled by external ventilation.
Rotor mounted on lifelong greased and oversized ball bearings to ensure silence and durability.
Built-in thermo-amperometric protection and permanently inserted capacitor in the single-phase version.
For the protection of the three-phase motor, the use of a remote safety switch in accordance with current regulations is recommended.
Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41) regulations.
Product code: 102660100
