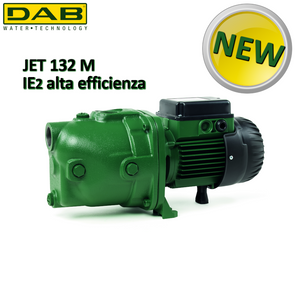

NEW SELF-PRIMING CENTRIFUGAL ELECTRIC PUMP - 132 M - DAB
HIGH EFFICIENCY IE2 - CAST IRON PUMP BODY
Pump body and motor support in cast iron; .
Die-cast aluminum motor support.
Impeller, diffuser, venturi tube and sand guard in technopolymer.
Stainless steel adjustment rings.
Carbon/ceramic mechanical seal.
Motor construction features:
Asynchronous type, closed, externally ventilated.
Rotor mounted on lifetime-lubricated and oversized ball bearings to ensure quietness and durability.
Built-in thermal-amperometric protection and permanently inserted capacitor in the single-phase version.
For three-phase motor protection, it is recommended to use remote motor protection in accordance with current regulations.
Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).
