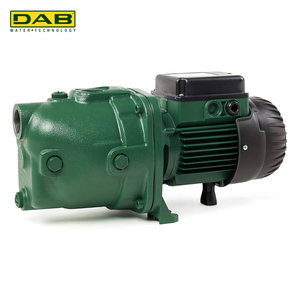

NEW SELF-PRIMING CENTRIFUGAL ELECTRIC PUMP - 102 M - DAB
HIGH EFFICIENCY IE2 - CAST IRON PUMP BODY
Cast iron pump body and motor support; .
Die-cast aluminum motor support.
Impeller, diffuser, Venturi tube and sand guard in technopolymer.
Stainless steel adjustment rings.
Carbon/ceramic mechanical seal.
Motor construction features:
Asynchronous, closed type, externally ventilated.
Rotor mounted on oversized ball bearings lubricated for life to ensure quiet operation and durability.
Thermo-amperometric protection and capacitor permanently integrated in the single-phase version.
For three-phase motor protection, it is recommended to use remote motor protection in accordance with current regulations.
Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).
