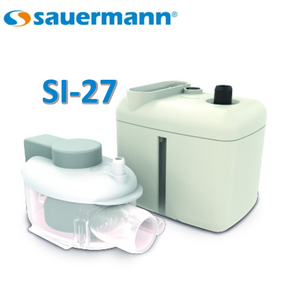

Description:
The Si-27 is suitable for air conditioners up to 20 kW. The piston pump technology is specially designed to remove the condensate they produce.
Highly reliable in all types of environments, the Si-27 offers one of the quietest sound levels, regardless of the volume of condensate to be removed.

Technical details

• Maximum flow rate: 20 l/h
• Maximum discharge head: 10 m
• Maximum pressure: 14 m
• Maximum suction head: 3 m
• Insulation class: Double insulation
• Power supply: 230V 50/60Hz 14W
• Operational conditions: 100% Continuous duty cycle
• Protection: IP20
• Master pack: 20
• Safety switch: NA - NC 8A resistive - 250 V
• Detection: Detection block

Advantages:

Patented technology

• High performance: a single product code for a product suitable for air conditioners up to 20 kW.
• High resistance to pollution in all types of environment. Capable of removing small particles.
• Proven reliability.

Silent

• Reduced sound levels during operation (20 dBA, tested by an independent laboratory).
• The air conditioner's power and the volume of condensate to be removed do not affect the pump's sound level.

Easy installation

• Compact design.
• Pump mounting plate allowing wall mounting, on pipes, or suspended.
• Removable power cable to simplify maintenance and replacement operations.
• Safety contact

Energy saving

• Thanks to high flow rate, reduced operating times, and limited power consumption.

Kit contents

•  Piston pump
•  Mounting plate
•  1.5 m removable power cable
•  Transparent PVC tube Ø int. 6 mm, L 1.5 m
•  6 Rilsan clamps
•  Detection block (SI2958, 1.5 m power cable))
•  Detection block installation kit:

Product code: SI27CE01UN23
