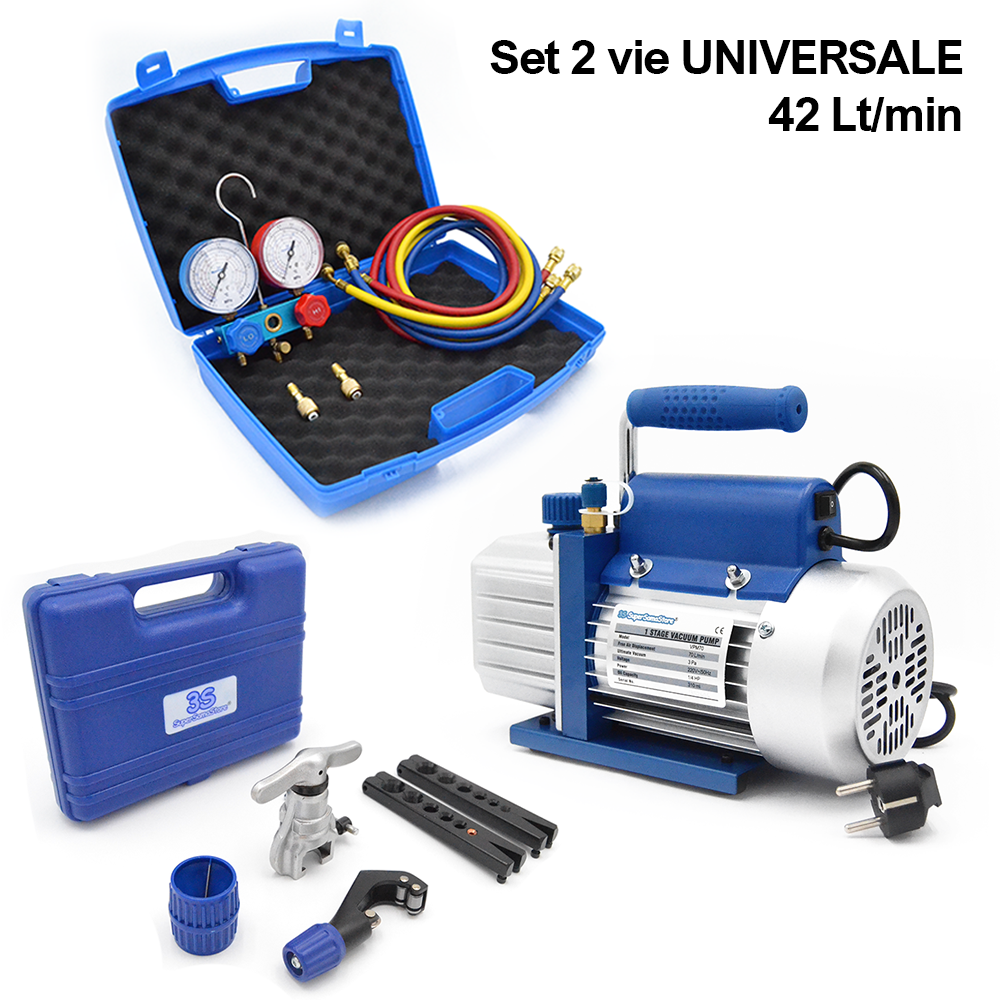

Single-stage vacuum pump 42 L + 2-WAY manifold gauge set + friction flaring tool
PUMP CHARACTERISTICS:
-
Sight glass for oil level
-
1 bottle of oil included
-
Anti-vibration base
-
CE certified
-
1 STAGE
-
Flow rate: 42 L/min
-
Motor: 1/4 HP
-
Oil capacity: 310 ml
-
Connection: 1/4" SAE
-
Vacuum: 3 Pa
-
Dimensions (mm): 290X110X240
-
Weight: 6.20 kg

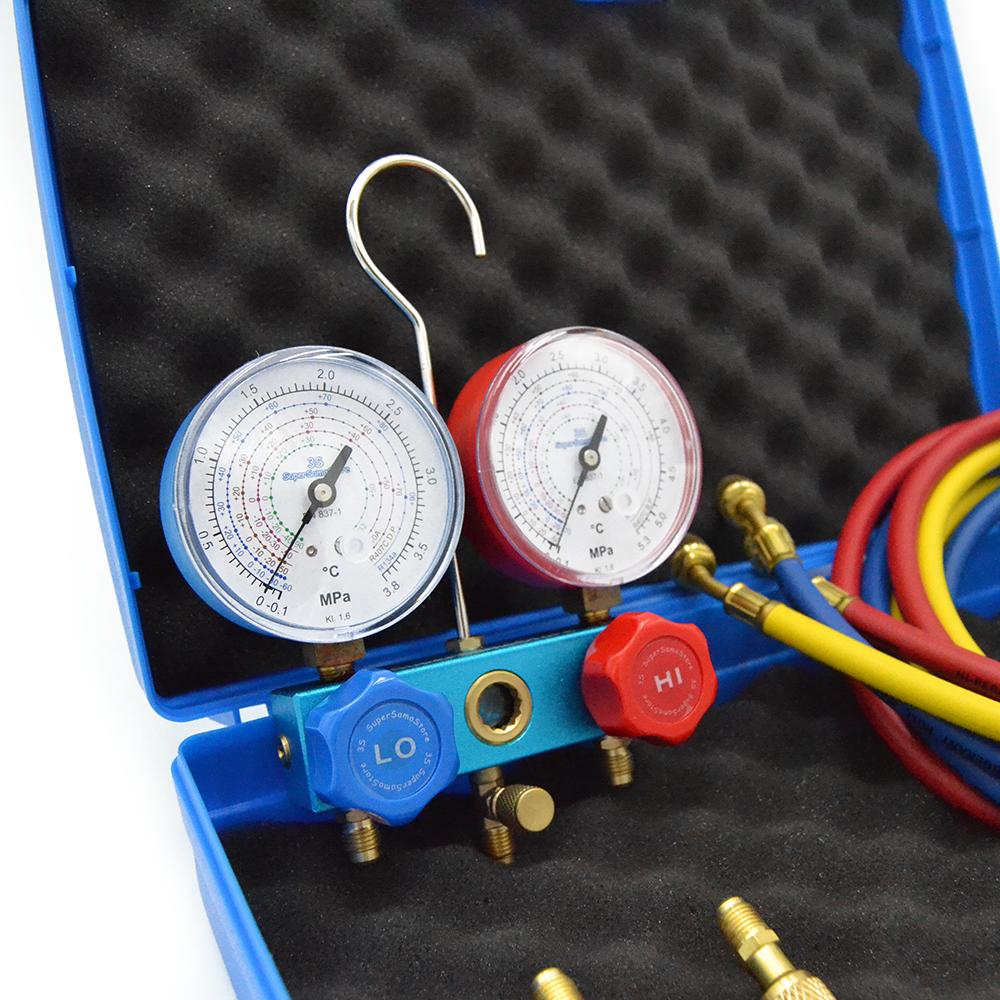

MANOMETER CHARACTERISTICS:
-
2-valve blue-red aluminum body manifold with connection control
-
Hanging hook
-
Supplied with 3 flexible hoses of 15 cm 1/4 sae
-
Supplied with 2 reducers 1/4 x 5/16 sae
-
Sight glass
-
Supplied in its carrying case

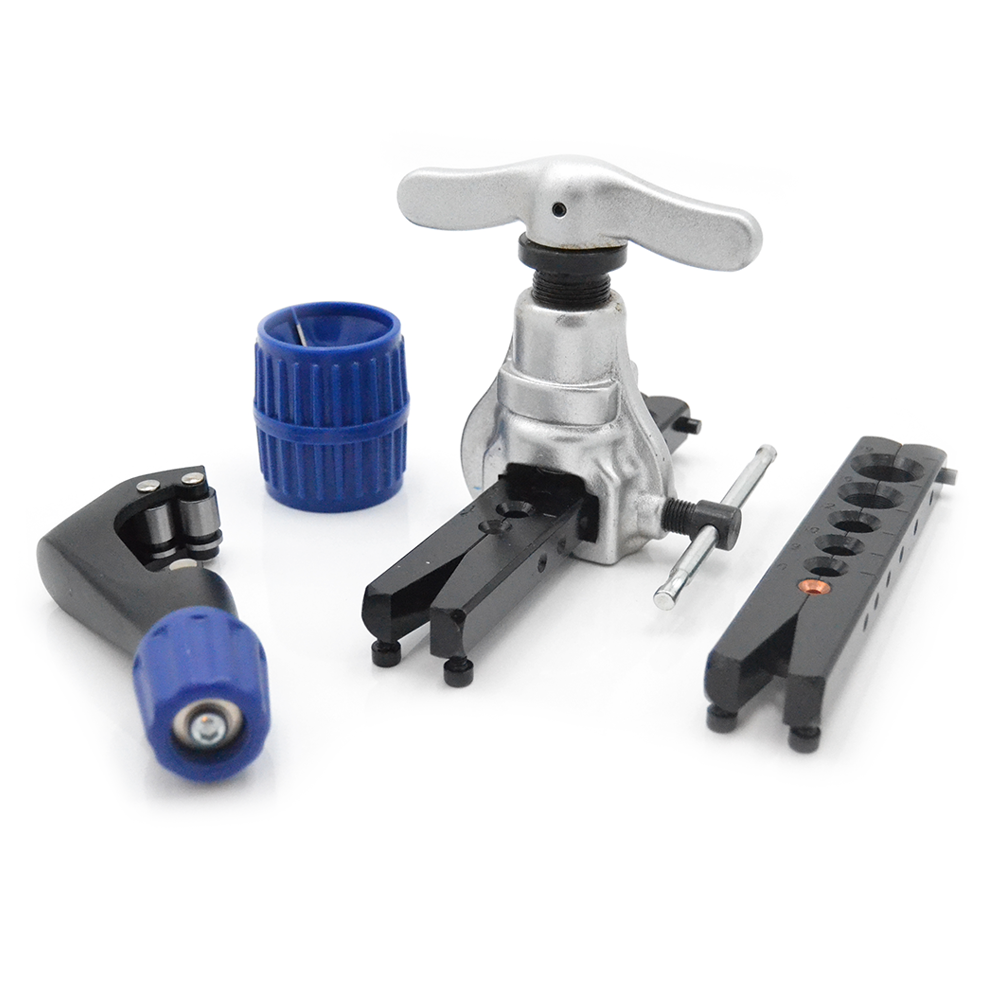

FLARING TOOL CHARACTERISTICS:
-
Inch template for tubes of 1/4" - 3/8" - 1/2" - 5/8" - 3/4"
- Equipped with a friction system, automatic removal of the torch once the flare is complete
- Equipped with a ratchet system, it allows you to flare and extract, always turning in the same direction
- Equipped with a special eccentric tip, for more precise flares
Product code: KT.VPM422CF
