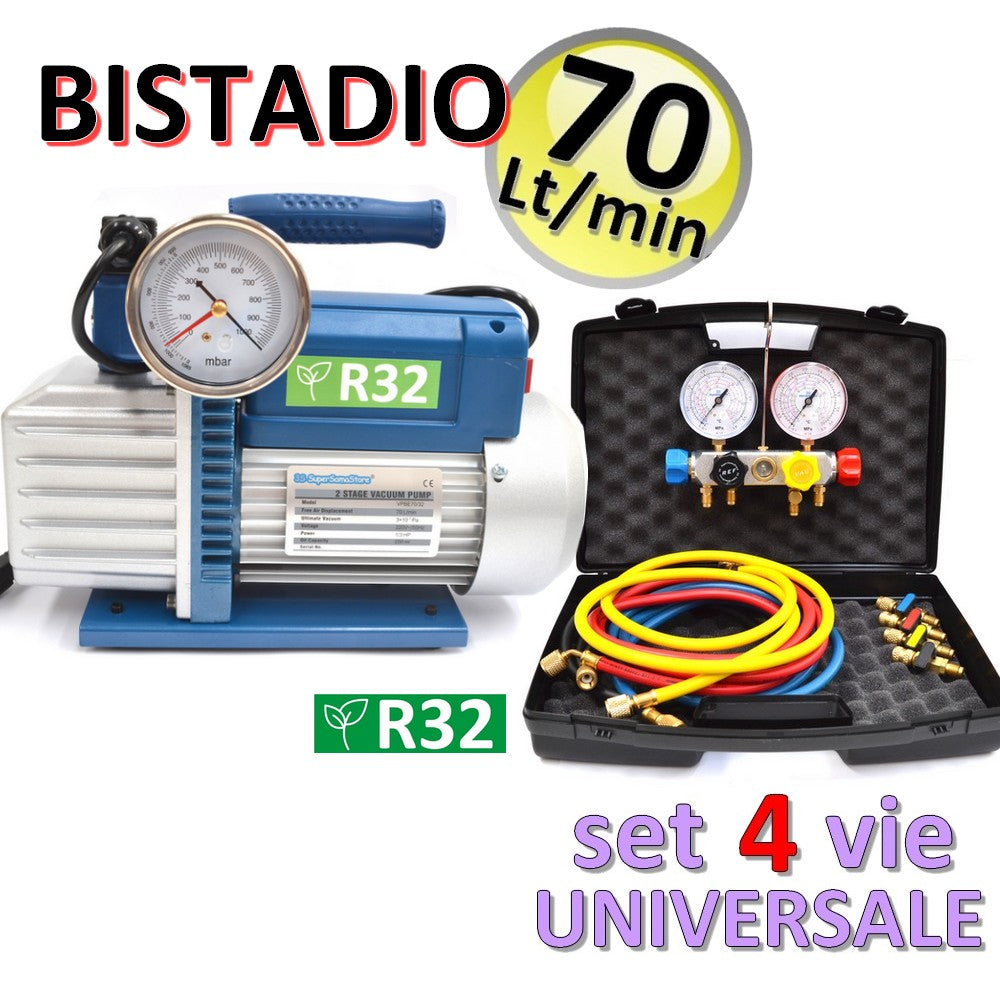

TWO-STAGE 70 LT R32 APPROVED VACUUM PUMP
+
4-WAY PRESSURE GAUGE SET
with R410A - R32 - R407C - R134A Scales

FEATURES:

VACUUM PUMP:

• INSTRUCTIONS IN ITALIAN

  TWO-STAGE MODEL 70 LITERS PER MINUTE - SPECIFIC FOR R32 and R1234YF GASES for evacuation according to DIN 8975

  THIS PUMP MODEL IS MADE WITH SPECIAL FIREPROOF INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY TO BE CERTIFIED AGAINST ANY EXPLOSIONS OR BLASTS CAUSED BY THE FLAMMABILITY OF THE 2 GASES R32 and R1234YF

  THE PUMP CAN OF COURSE ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22....

  SUPPLIED WITH A VACUUM GAUGE TO DISPLAY VACUUM OPERATION

  SUPPLIED WITH A SOLENOID VALVE TO AVOID OIL BACKFLOW IN CASE OF ACCIDENTAL CUTTING OFF.

  EQUIPPED WITH AN ON- OFF SWITCH

  OIL LEVEL INDICATOR

  1 PACK OF OIL INCLUDED

  POWER CABLE WITH SHUKO PLUG

  ERGONOMIC CARRY HANDLE

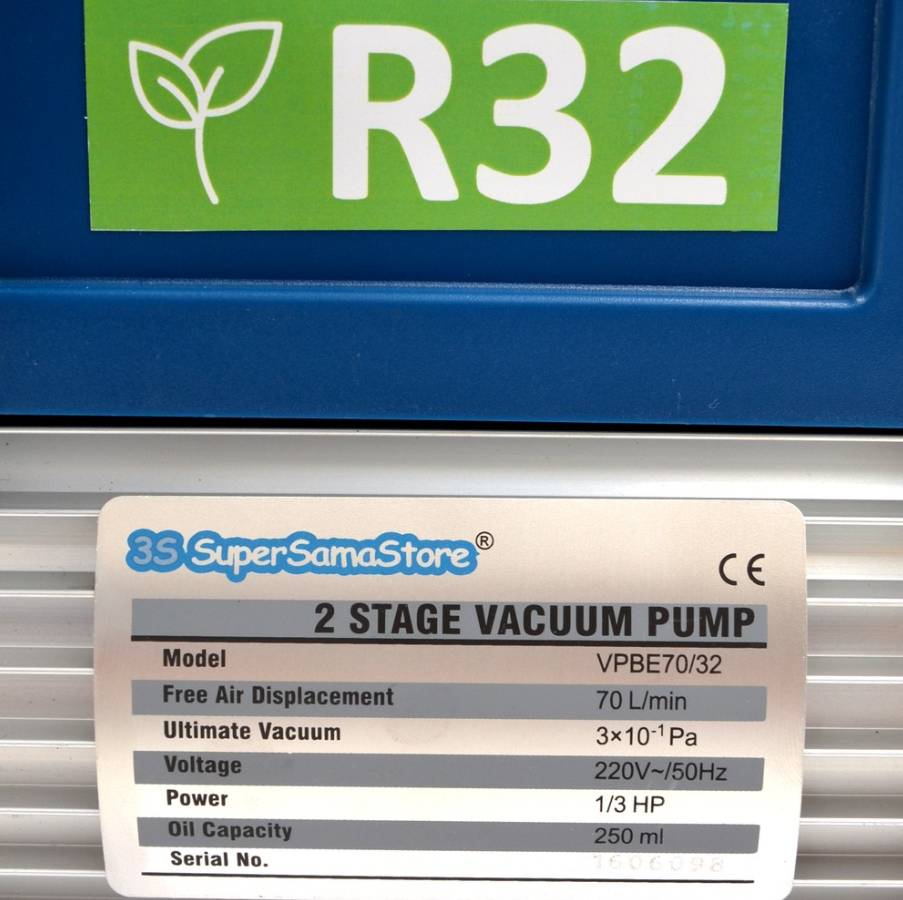

• TECHNICAL DATA:

  TWO-STAGE MODEL

  SUCTION CAPACITY IN LITERS PER MINUTE 70 - 2.5 CFM

  MOTOR POWER 1/3 HP

  POWER SUPPLY 220 V - 50 Hz

  FINAL VACUUM: 3x10-1 Pa - 0.003 mbar

  OIL IN THE PUMP 310 ML.

  DIMENSIONS 320X160X240 (mm)

  WEIGHT 9.30 KG

  CONNECTION 1/4" SAE

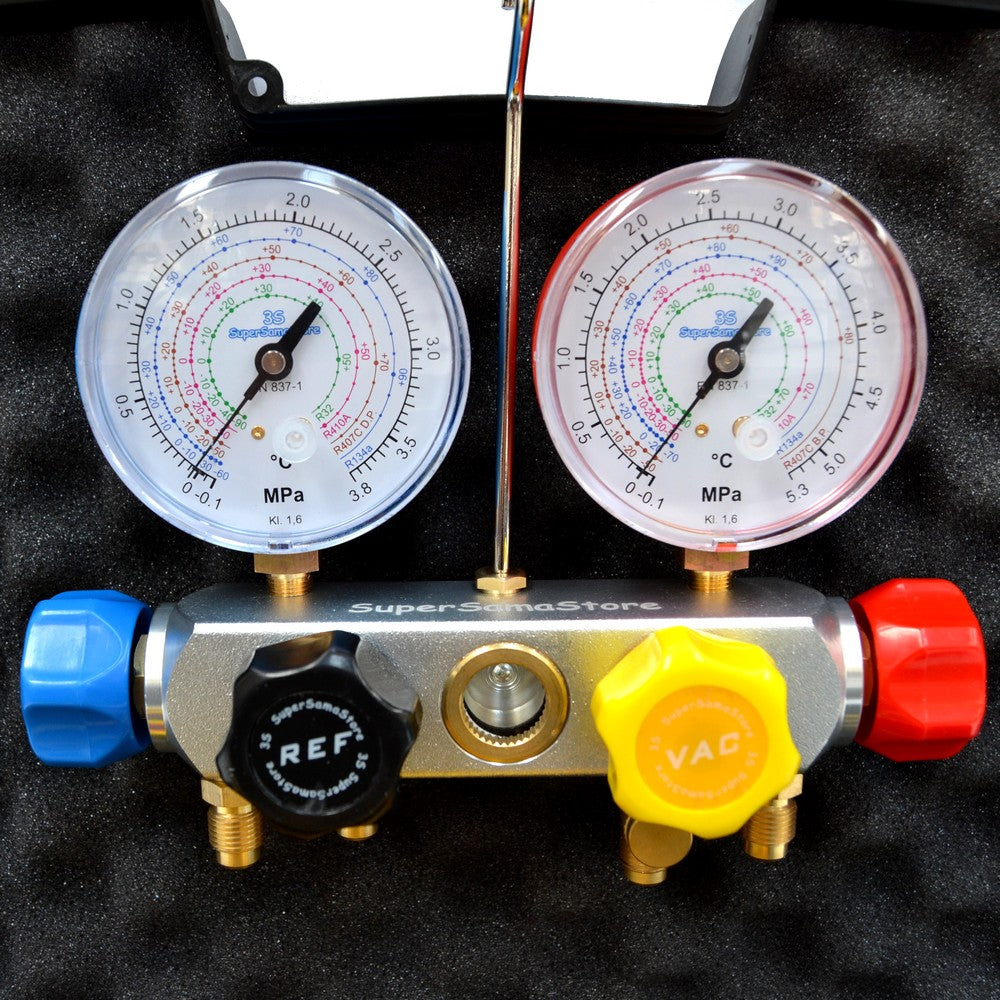

4-WAY UNIVERSAL PRESSURE GAUGE SET:

PRESSURE GROUP WITH 4 BLUE-BLACK-YELLOW-RED CONTROL VALVES ON THE ALUMINUM BODY THAT CONTROL THE 4 CONNECTION OUTLETS.
UNIVERSAL WITH R410A / R32 R407C / R134A GAS SCALE
HOOK FOR HANGING THE MANOMETER
FOUR 1500 mm LONG BLUE-BLACK-YELLOW-RED HOSES WITH 5/16 SAE FITTINGS AT BOTH ENDS INCLUDING A SUPPLY OF VALVE PRESSES.
2 TAPS-FITTINGS FOR R32 and R410A MALE 5/16 SAE WITH VALVE PRESSES TO BE ATTACHED TO THE ENDS FLOATING HOSES FOR INDEPENDENT CLOSURE.
2 TAPS-FITTINGS FOR R407C and R134A MALE 5/16 SAE FEMALE 1/4 SAE CO VALVE-PRESS TO BE ATTACHED TO THE ENDS FLOATING LINKS FOR INDEPENDENT CLOSURE.
1 PLASTIC PRESSURE GAUGE CASE.

Product code: KT.70B4R32
