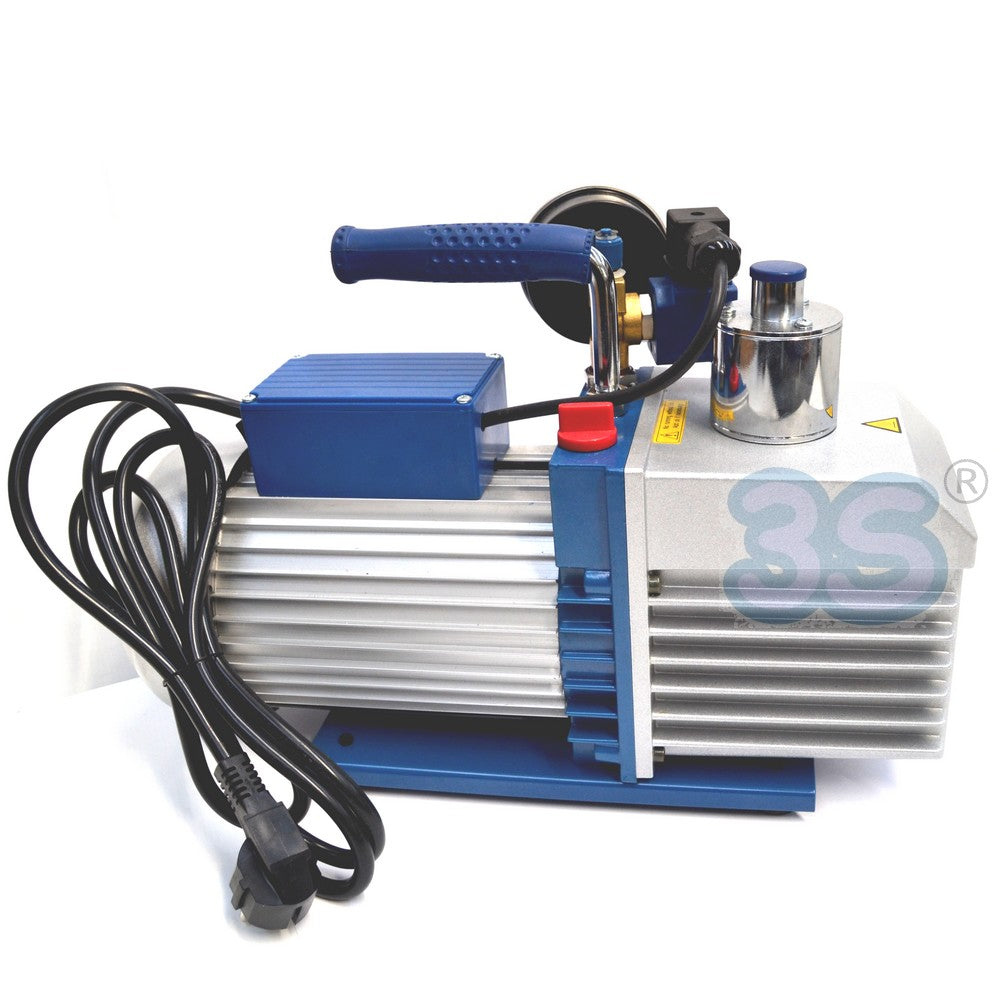

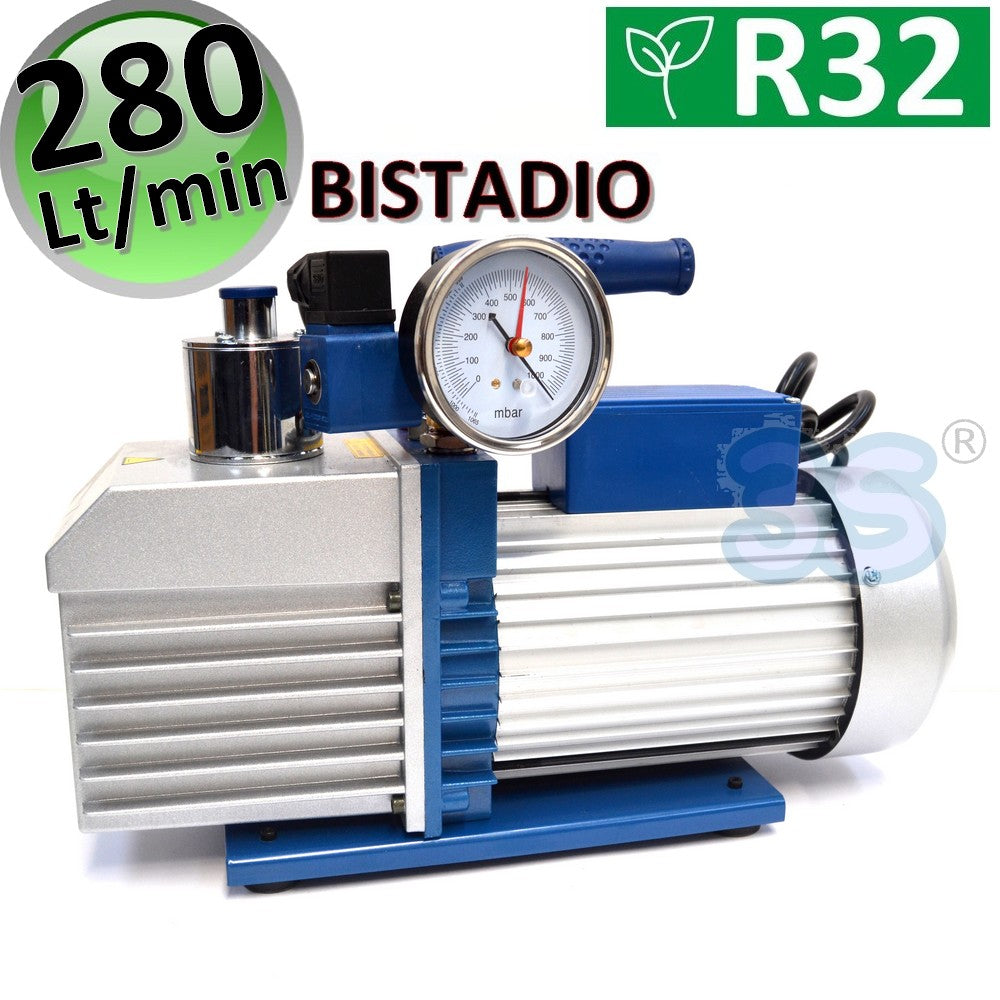

VACUUM PUMP with SOLENOID VALVE and VACUUM GAUGE

FEATURES:  < /span>

INSTRUCTIONS IN ITALIAN

TWO-STAGE MODEL 280 LITERS PER MINUTE - SPECIFIC FOR R32 and R1234YF GASES for evacuation according to DIN 8975< /p>

THIS PUMP MODEL IS MADE WITH SPECIAL FLAME-RETARDANT INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY TO BE CERTIFIED AGAINST ANY EXPLOSIONS CAUSED BY THE FLAMMABILITY OF THE 2 R32 AND R1234YF GASES

THE PUMP CAN, OF COURSE, ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22... .< /span>

SUPPLIED WITH A VACUUM GAUGE TO MONITOR VACUUM OPERATION

SUPPLIED WITH SOLENOID VALVE TO PREVENT OIL RETURN IN CASE OF ACCIDENTAL POWER CUT.

EQUIPPED WITH AN ON-OFF SWITCH

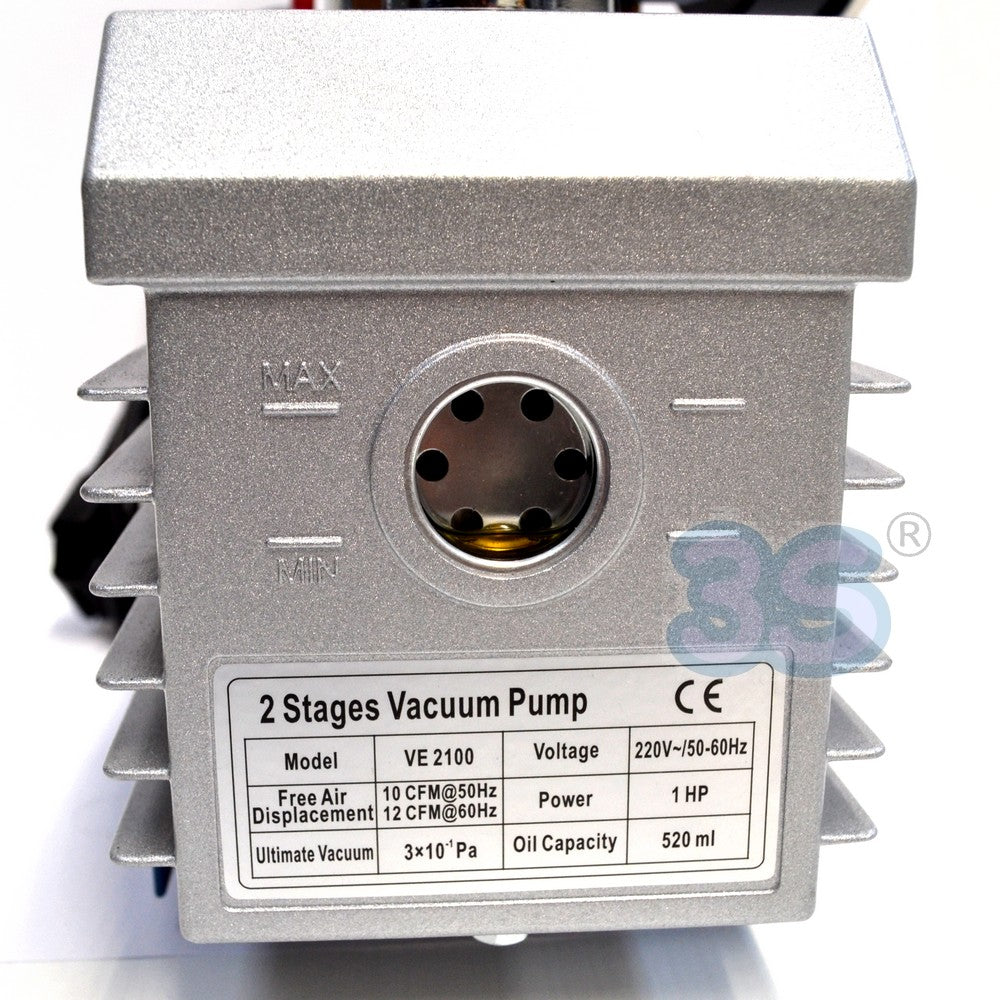

OIL LEVEL INDICATOR

2 BOTTLES OF OIL INCLUDED

POWER CORD WITH SCHUKO PLUG

ERGONOMIC CARRY HANDLE

TECHNICAL DATA:

• TWO-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 280< /span>
• MOTOR POWER 1 HP
• POWER SUPPLY 220 V - 50Hz < / span>
• FINAL VACUUM 3x10-1 Pa - 0.003 mbar
• OIL IN THE PUMP 520 ML. < / span>
• DIMENSIONS 395X135X280 (mm)
• WEIGHT 16.90 KG
• OUTLET CONNECTION: 1/4' SAE MALE
• CE CERTIFIED < /li>

Product code: VE2100 + E
