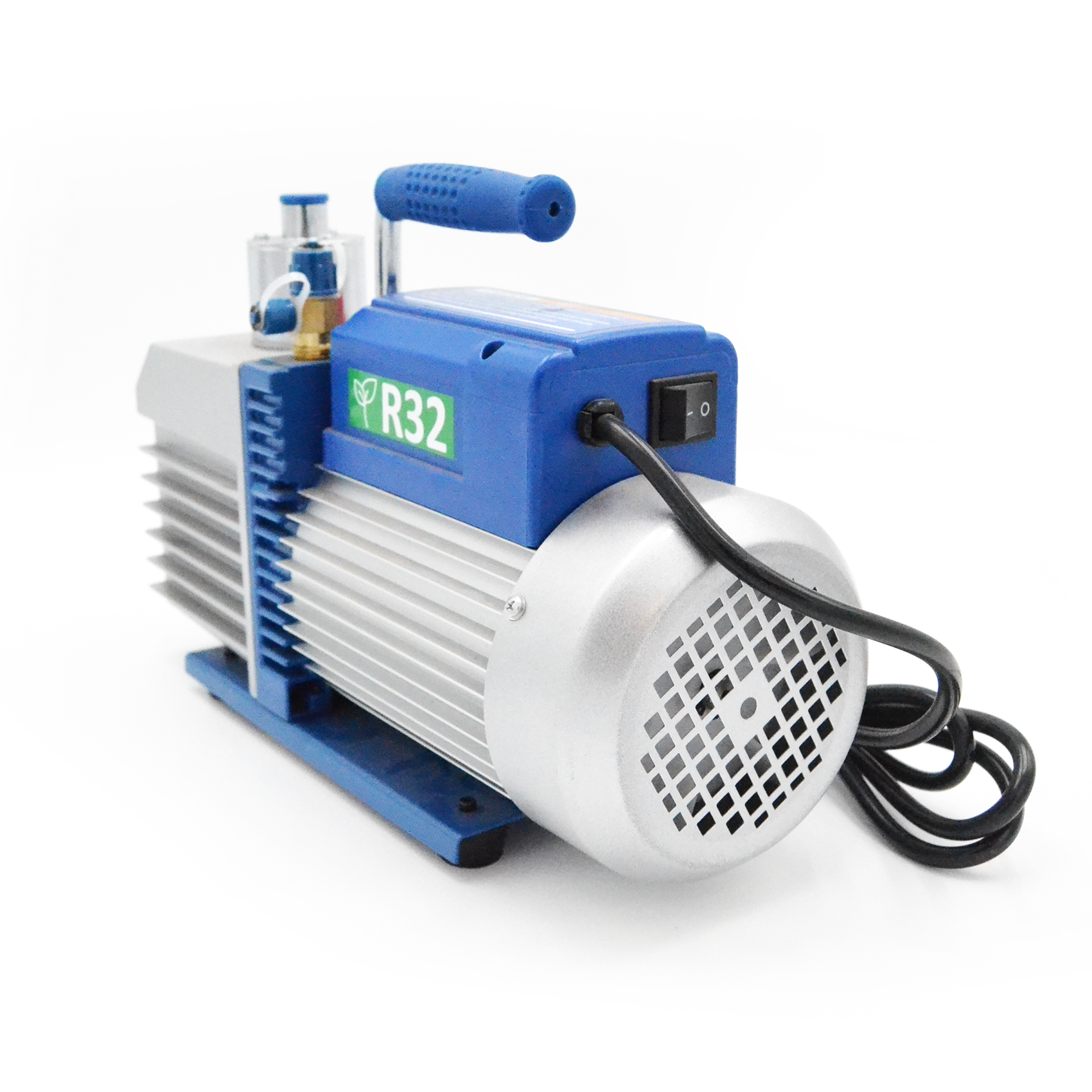

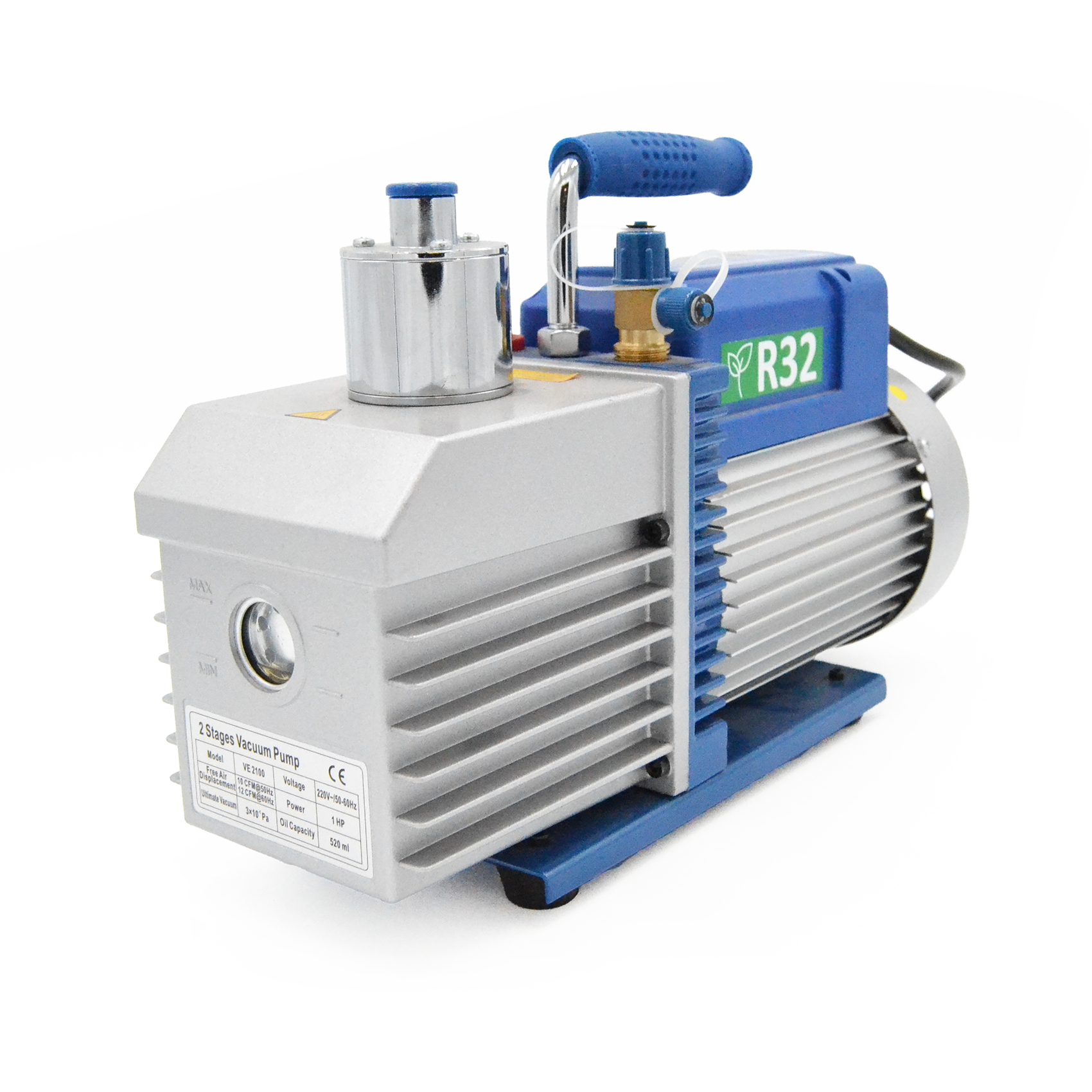

VACUUM PUMP

INSTRUCTIONS IN ITALIAN

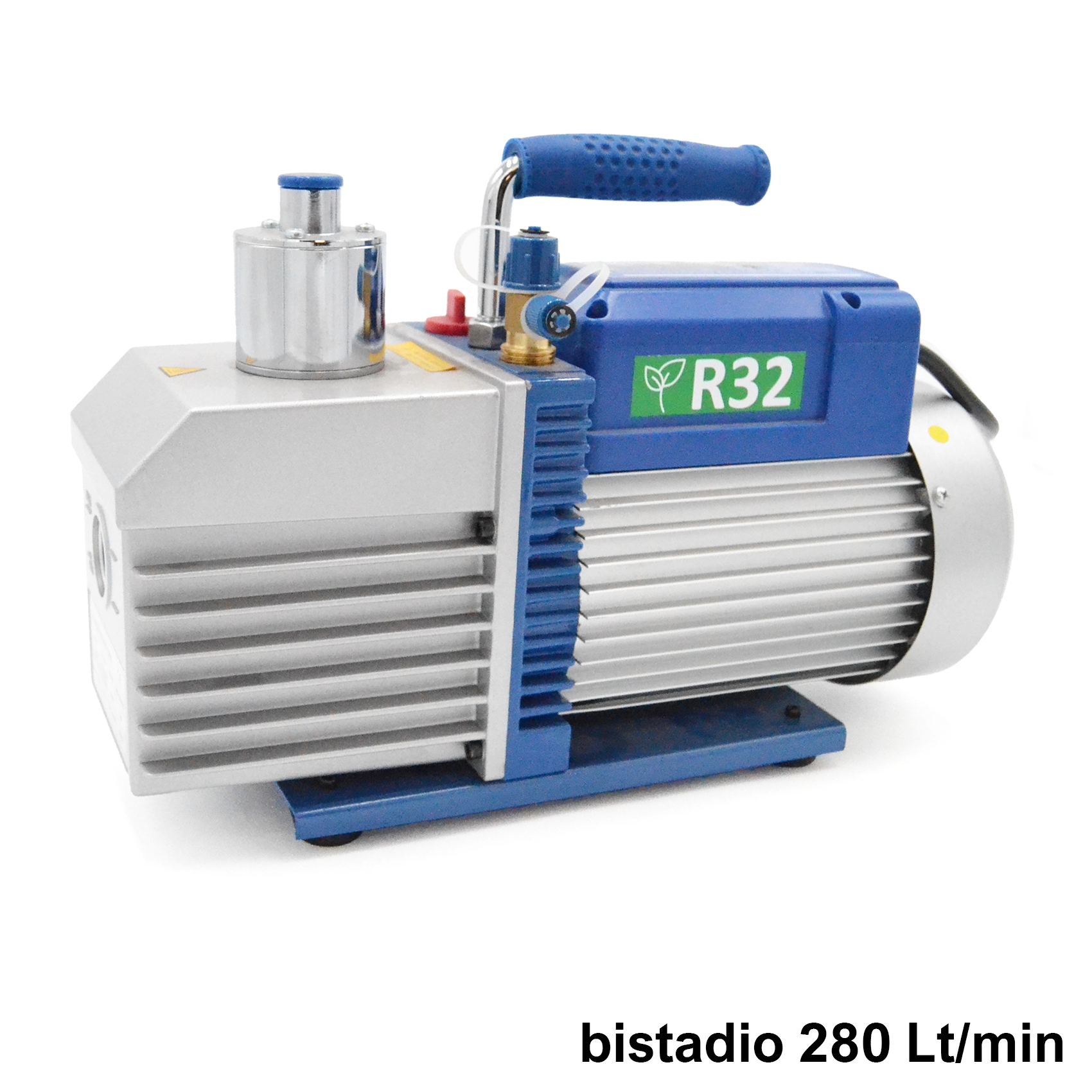

TWO-STAGE MODEL 280 LITERS PER MINUTE - SPECIFIC FOR R32 and R1234YF GASES for evacuation according to DIN 8975< /p>

THIS PUMP MODEL IS CONSTRUCTED WITH A PARTICULAR FLAME-RETARDANT INSULATION ON THE ELECTRICAL COMPONENTS, THIS GIVES IT THE POSSIBILITY TO BE CERTIFIED AGAINST ANY EXPLOSIONS OR BURSTS CAUSED BY THE FLAMMABILITY OF THE 2 GASES R32 and R1234YF

THE PUMP CAN OF COURSE ALSO BE USED ON SYSTEMS WITH OTHER REFRIGERANT GASES SUCH AS: R410A / R407C / R404A / R22....< /span>

EQUIPPED WITH AN ON-OFF SWITCH

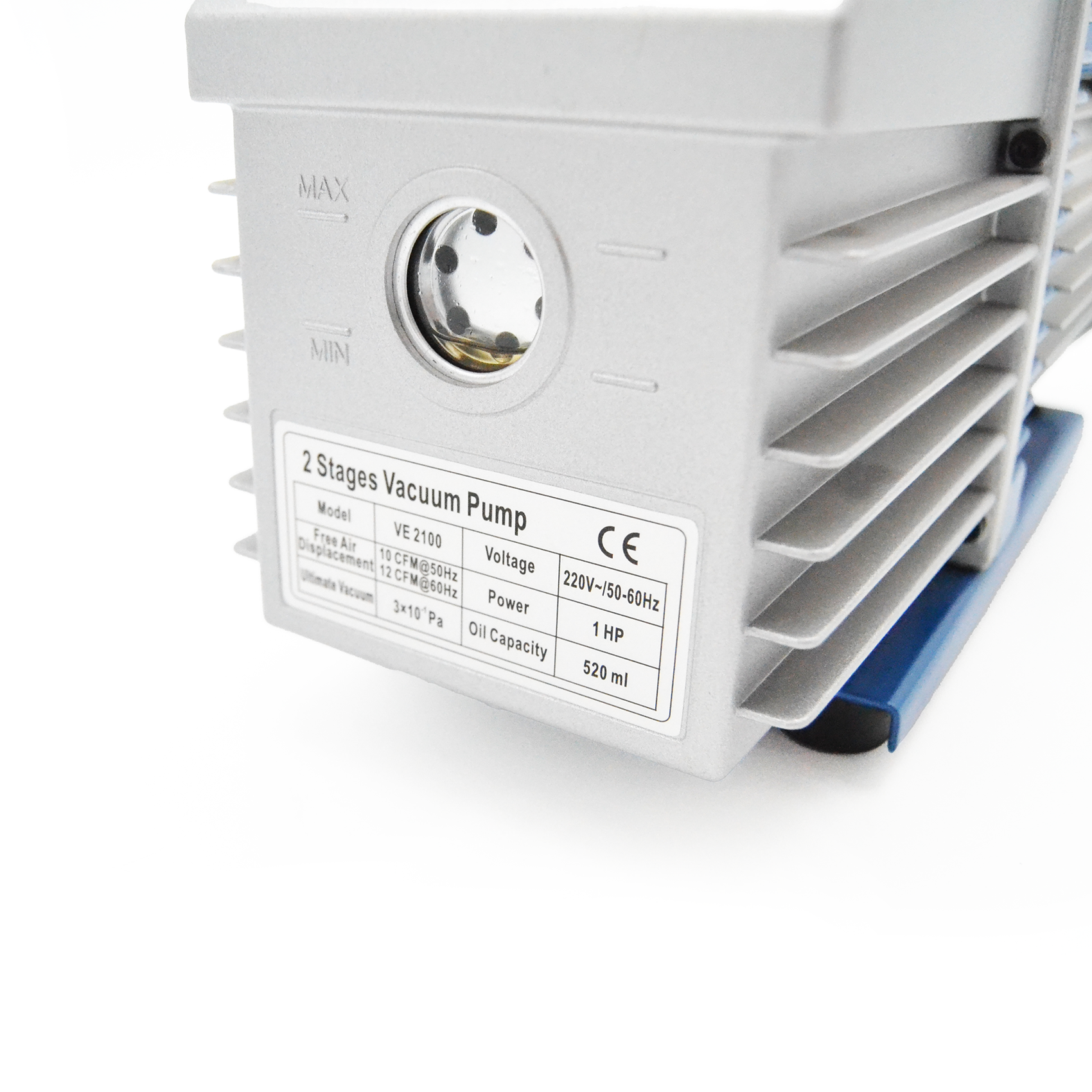

OIL LEVEL INDICATOR

2 OIL BOTTLES INCLUDED

POWER CABLE WITH SHUKO PLUG

ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• TWO-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 280< /span>
• MOTOR POWER 1 HP
• POWER SUPPLY 220 V - 50 Hz
• FINAL VACUUM 3x10-1 Pa - 0.003 mbar
• OIL IN PUMP 520 ML.
• DIMENSIONS 395X135X280 (mm)
• WEIGHT 16.50 KG
• DUAL OUTLET CONNECTION: 1/4' and 3/8' SAE
• CE CERTIFIED < /li>

Product code: VE2100
