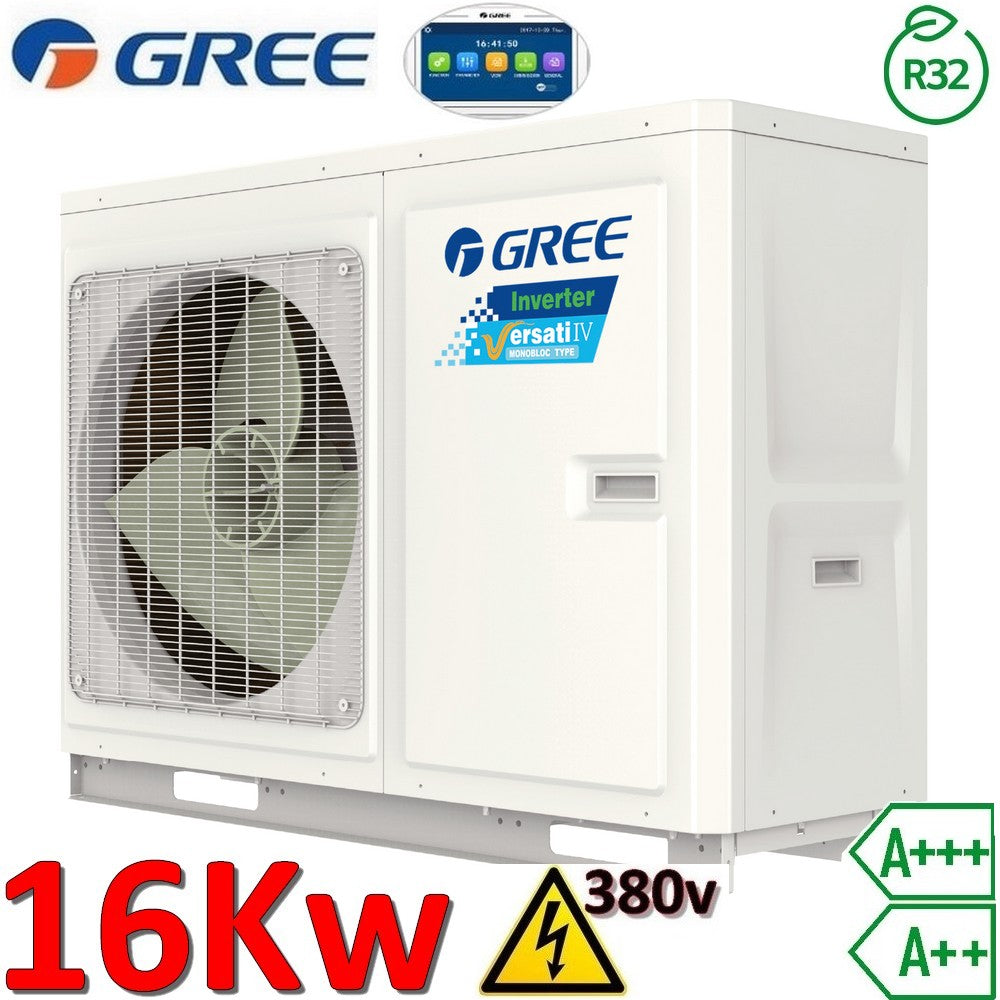

GREE VERSATI IV

Monobloc Air/Water Heat Pump</ p >

16 Kw - R32 -Three-phase 380 V

• Single-phase version

• Achieves very high heating efficiency levels, up to 5 COP.

• Its integrated structure, which includes all hydraulic components, allows for easy installation, with savings on associated costs.

• It uses R32, a refrigerant with low global warming impact and no effect on the ozone layer, characterized by high energy efficiency and a 30% reduced charge compared to R410A.</ span></ p>

• The two-stage compressor, thanks to its special technology, guarantees exceptional performance over a very wide operating range.

• The outdoor temperature range is indeed from -25°C to ~+35°C for Heating, from +10 to +48°C for Cooling, and from -25°C to +45°C for domestic hot water production.

• The water outlet temperature range is 25~65°C: this allows the use of this heat pump with both radiant floors, hydronic terminals, and medium-temperature radiators.

• DC brushless axial fans are designed for aerodynamic optimization: they guarantee a low noise level, but high efficiency and a large air flow.

• The heat exchangers are equipped with a special Anti-Corrosion treatment: the fins, made of

• Aluminum-Manganese, they are covered with a special layer of epoxy resin, with a typical golden color and another hydrophilic layer.

• It is equipped with an electric resistance on the base, to prevent ice formation during winter operation.

• It is equipped with an electronic expansion valve.

• All main hydraulic components are integrated inside.

• Inverter pump

• Plate heat exchanger

• Expansion vessel

• Safety valve

• Flow Switch

• Water filter supplied (mandatory installation)

• Settings are made via a multifunctional touchscreen control panel, which allows you to manage:

• A 3-way diverter valve (not supplied) for domestic hot water production

• A 2-way valve (not supplied) to close off part of the system

• Weekly programming by time slots

• Automatic restart after a power outage

• Emergency operation (can activate a backup heat source)

• Fast hot water heating function

• Climate regulation (weather-dependent mode)

• Silent function for quiet operation, programmable with timer

• Condensation control

• Activation of the anti-legionella cycle: heating the entire tank weekly to a temperature (max 70°C) helps eradicate the bacteria responsible for the infection

  GREE by Argo
