Description

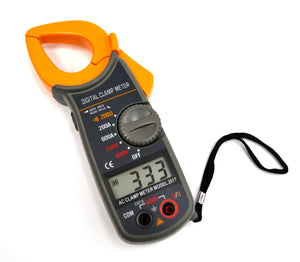

DIGITAL CLAMP METER

CM-2017

Pince ampèremétrique numérique CM-2017 avec câbles et boîtier - CM-2017



Clamp Multimeter CM-2017

Digital clamp multimeter complying with standards IEC 1010IEC61010-1, UL3111 and VDE0411

< ul>
  • Three functions in one: alternating current, alternating voltage and resistance.
  • For resistance testing, an audible signal is expected.
  • Frequency response from 40 Hz to 1 kHz for alternating currents and voltages.
  • Measurements can be made up to a maximum of 600A and 600V.
  • The 'DATA HOLD' function makes it possible to stop the instrument reading, thus giving the possibility
  • of reading the detected value afterwards.

    • Technical specifications:

    • Altitude: < 2000 m

    • Operating temperature: -10 to +50°C, (<80% RH)

    • Storage temperature: -10 to 60°C (<65% RH, without battery)< /span >

    • MAX. voltage between terminals and ground: 600Vrms .

    • Response time : approx. 1 second (2 seconds in resistance range).

      < /li>

    • Display: 3 1/2 digit LCD with max. 1999.

    • Automatic indication of functions and symbols.

    • Dimensions (WxHxD): 208 x 90 x 40 mm.

    • Weight: approx. 400 g (battery included).

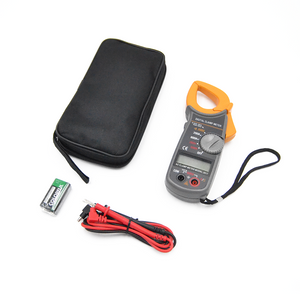

    • Accessories: User manual in Italian and English - Test leads - Carrying case and 9v battery

    Product code : CM-2017



    Description

    DIGITAL CLAMP METER

    CM-2017

    Pince ampèremétrique numérique CM-2017 avec câbles et boîtier - CM-2017



    Clamp Multimeter CM-2017

    Digital clamp multimeter complying with standards IEC 1010IEC61010-1, UL3111 and VDE0411

    < ul>
  • Three functions in one: alternating current, alternating voltage and resistance.
  • For resistance testing, an audible signal is expected.
  • Frequency response from 40 Hz to 1 kHz for alternating currents and voltages.
  • Measurements can be made up to a maximum of 600A and 600V.
  • The 'DATA HOLD' function makes it possible to stop the instrument reading, thus giving the possibility
  • of reading the detected value afterwards.

    • Technical specifications:

    • Altitude: < 2000 m

    • Operating temperature: -10 to +50°C, (<80% RH)

    • Storage temperature: -10 to 60°C (<65% RH, without battery)< /span >

    • MAX. voltage between terminals and ground: 600Vrms .

    • Response time : approx. 1 second (2 seconds in resistance range).

      < /li>

    • Display: 3 1/2 digit LCD with max. 1999.

    • Automatic indication of functions and symbols.

    • Dimensions (WxHxD): 208 x 90 x 40 mm.

    • Weight: approx. 400 g (battery included).

    • Accessories: User manual in Italian and English - Test leads - Carrying case and 9v battery

    Product code : CM-2017



    MARQUE by FAVORCOOL

    CM-2017 Digital Clamp Meter with Test Leads and Case

    CM-2017

    38,26 €
    38,26 €
    Tax included. Shipping calculated at checkout.
    Delivery in 2 to 3 days
    Fast delivery throughout Belgium. Free on orders over €200.
    You have 30 days to return your product.
    Free returns for any product not installed in its original packaging.
    2-year warranty
    Parts and labor covered. 24/7 STS technical support included.
