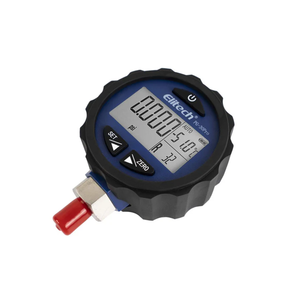

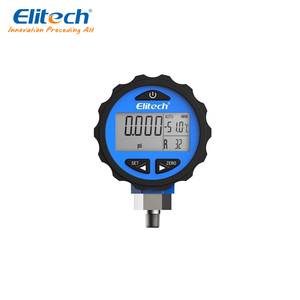

Elitech PG-30PRO.B Digital Low Pressure Gauge for Refrigerant Gas

Description:

The PG-30Pro is a digital manifold gauge that measures the system pressure in real time. It features a stylish large display and a one-year battery life. The gauge is equipped with backlight, auto-off, low battery indicator, over-range alarm and other functions. It is designed for use in piping systems, refrigeration systems, and other applications. Features: Stable and Reliable Sensor: Temperature compensated pressure sensor, thermal drift is less than ±0.04% PE/°C. Blue Backlit LCD: Display divided into different measurements, direct reading for all measurements. Variety of Display Options. Refrigerants: 87 common types. Built-in PT refrigerant comparison chart for your convenience

Features:

1. Pressure range: -0.1 to 3.448 MPa (0 to 500 psi)
2. Resolution: 0.001 MPa, 0.5 psi
3. Accuracy: ±0.5% of full scale
4. Sampling period: 1 s
5. Temperature unit: °C/°F
6. Backlight idle time: 3, 4, 5, 10 or 15 seconds.
7. Blue backlit LCD, 50 × 26 mm
8. Measurement units: MPa, bar, psi, kPa, kg/cm², cmHg
9. Auto-off: 10 minutes (or 20, 30 or 40 minutes) depending on the setting. You can also disable this function by setting it to OFF; the light will then remain on permanently.
10. Settings: Auto-off, pressure/temperature unit, backlight duration
11. The PT table lists the pressure and temperature of 87 common types of refrigerants.
12. Batteries: 3 AAA batteries
13. Battery life: approximately 1 year
14. Low battery indicator
15. Operating environment: Temperature: -10 °C to 60 °C; Humidity: 35% to 85% RH
16. Overpressure alarm: ALARM appears at the top right of the screen if the blue gauge pressure exceeds 500 psi and the red gauge pressure exceeds 800 psi; ALARM flashes if the blue gauge pressure exceeds 625 psi and the red gauge pressure exceeds 1,000 psi.
17. Packaging: Blister
18. Connection: 1/8 NPT

Product code: PG-30PRO.B
