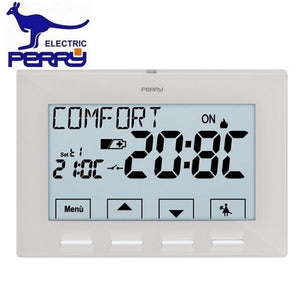

PERRY 1TPTE028B - NEXT Series
Battery-powered backlit wall thermostat - white
DIGITAL THERMOSTAT MENU NAVIGATION and BRIGHT DISPLAY Wall installation Battery powered Winter / Summer 2 temperature levels + anti-freeze Input for remote contact Input for remote temperature probe
The battery-powered thermostat is suitable for all heating and/or cooling systems, it is equipped with a clear backlit screen to monitor all its functions in real time. Ease of use via menu navigation is the fundamental characteristic; in fact, despite the completeness of its functions, it is very easy to use. The thermostat, by default, regulates the temperature in ON/OFF Differential mode and the hysteresis is adjustable from 0.2°C to 1.2°C to adapt to the thermal inertia of your specific system - alternatively, it is possible to select operation in proportional modulating mode with adjustable cycle durations (from 7 to 20 minutes): this system allows the desired temperature to be kept more stable, increasing the feeling of comfort for the user and is particularly suitable for systems with high thermal inertia such as radiant floor panels. The factory-set temperature scale is in Celsius with the possibility of calibrating the ambient temperature measurement by setting a correction value (from -3 to +3 °C).
The thermostat can be connected to a separate remote temperature probe (optional) and then set according to the needs of your system: remote, floor, external.
Particular attention has been paid to energy saving: the suspension of thermoregulation for domestic cleaning, the optional blocking of the set temperatures (MAX/MIN), the adjustable anti-freeze temperature value, control via an external contact (e.g. optional telephone programmer), allow energy waste to be avoided with consequent economic savings
Main features of the electronic thermostat:
Digital menu thermostat 3V "NEXT" series white color
Multilingual menu
Power supply 3V – 2x1.5 V AA alkaline
4.3" backlit LCD display
Backlit buttons
Output 1 potential-free changeover contact: 5(3)A / 250Vac.
ON/OFF operation with adjustable differential from 0.2 – 1.2°C or modulating with control period from 7 to 20 min
2 temperature levels + anti-freeze
Temperature adjustable by 0.1°C increments
Suspension button for cleaning
Input for telephone or remote control
Remote probe input
< span style='color: #000000;'>SUM/WIN Control
Pump activation program
Temperature setting lock
User password
Installer password
Timed backlight
Relay status indication;
Detection correction based on product positioning
Wall mounting
Adjustment range 5 - 37.7°C
Dimensions (LxDxH) 128.5 x 88.5 x 26 mm
Product code: 1TPTE028B
