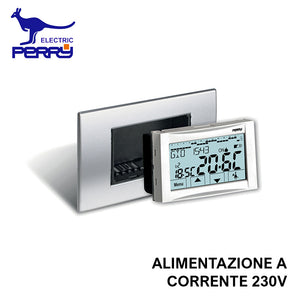

PERRY 1CRCDS27
Built-in Digital Chronothermostat
Moon Soft Series TOUCH SCREEN - 230v Power Supply
plate not included
FEATURES:
< p style='margin-bottom: 0cm; orphans: 1;' align='LEFT'>• Multilingual menu• 230v a.c. 50-60 Hz power supply
• Backlit TOUCH SCREEN LCD display
• Equipped with three front panels included in the package: anthracite, white, silver
• User and installer password
• Anti-limescale cycle: with the "pump activation" option the chronothermostat automatically starts the pump or valve device for two minutes each day, even during suspension periods, to prevent possible incrustations and seizing due to prolonged inactivity. This eliminates any risk at the time of system reactivation
• Eco operation: the chronothermostat anticipates shutdown by exploiting the thermal inertia of the system, allowing considerable energy savings
• Cleaning suspension button: allows you to stop the system operation for a preset time. Without waste and with extreme simplicity, just press the button with the "suspend cleaning" symbol and the segments corresponding to the two hours from the current one disappear from the display: system off
• Temperature setting lock: for systems intended for second homes, public environments, hotels, offices, as well as domestic environments, where it is necessary to set minimum and maximum general thermoregulation temperatures of the environments to avoid heat theft (minimum temperature) and/or heat waste (maximum temperature)
• Holiday program: for those who are away for longer days, the "Countdown" or "Weekend" which suspends the operation of the chronothermostat for a preset period of time, maintaining the temperature at the anti-freeze level
Multilingual menu
230v a.c. 50-60 Hz power supply
Backlit touch screen LCD display
Output 1 potential-free deviation contact: 5(3)A/250Vac.
ON/OFF operation with adjustable differential from 0.2 to 0.2 – 1.2°C or modulating with a control period of 7 – 20 min
4 editable preset programs
3 temperature levels + anti-freeze
Autonomous manual temperature
Temperature adjustable by 0.1°C set
Minimum programming 30 minutes
Permanent/temporary manual operation
Automatic daylight saving time change
Suspension button for cleaning
Telephone or remote control input
SUM/WIN command
Holiday program
Pump activation program
Temperature setting lock
User password
Installer password
Timed backlight
Relay status indication
Operating detection correction
product positioning
Recessed mounting
Adjustment range 5 - 37.7°C
Dimensions (LxDxH) 65 x 53 x 47 mm
COMPATIBILITY OF SUPPLIED FACEPLATES
ABB Chiara
BTICINO
Light, LivingLight Bianca, Light Tech, LivingLight Tech, Living, Living Light Anthracite,
Matix, Axolute Tech, Axolute Anthracite, Axolute Bianca
VIMAR
Plana, Plana Silver, Eikon Grey, Eikon Next, Eikon Bianca, Arkè White, Arkè Black
GEWISS
Chorus ONE/LUX/FLAT/GEO White
Chorus ONE/LUX/FLAT/GEO Black
Chorus ONE/LUX/FLAT/GEO Titanium
Product code: 1CRCDS27
