PERRY 1CRCDS26
Built-in digital chronothermostat
Moon Soft Series TOUCH SCREEN - battery powered
plate not included
FEATURES:
< p style='margin-bottom: 0cm; orphans: 1;' align='LEFT'>• Multilingual menu• Power supply 3V - 2x1.5 V AA alkaline
• TOUCH SCREEN backlit LCD display
• Equipped with three front panels included in the package: anthracite, white, silver
• User and installer password
• Anti-limescale cycle: with the "pump activation" option, the chronothermostat automatically starts the pump or valve device for two minutes every day, even during suspension periods, to prevent possible encrustations and seizing due to prolonged inactivity. This eliminates any risk at the time of system reactivation
• Eco function: the chronothermostat anticipates shutdown by exploiting the thermal inertia of the system, allowing considerable energy savings
• Suspension cleaning button: allows you to stop the system operation for a pre-established duration. Without waste and with simplicity, just press the button with the "suspend cleaning" symbol. and the segments corresponding to the two hours from the current one disappear on the screen: system off
• Temperature setting lock: for systems intended for second homes, public environments, hotels, offices, as well as domestic environments, where it is necessary to set minimum temperatures and general thermoregulation rules for environments to prevent heat theft (minimum temperature) and/or heat waste (maximum temperature)
• Holiday program: for those who are away for longer periods, the "Countdown" or "Weekend" programs suspend the chronothermostat's operation for a pre-established period, maintaining the temperature at anti-freeze level
Multilingual menu
Power supply 3V – 2x1.5 V AA alkaline
TOUCH SCREEN backlit LCD display
1 potential-free changeover contact output: 5(3)A/250Vac.
ON/OFF operation with adjustable differential from 0.2 – 1.2°C or modulating with a control period of 7 to 20 min
4 editable preset programs
3 temperature levels + anti-freeze
Autonomous manual temperature
Temperature adjustable in 0.1°C increments
Minimum programming 30 minutes
Permanent/temporary manual operation
Automatic daylight saving time change
Suspension button for cleaning
Telephone or remote control input
SUMMER/WINTER control
Holiday program
Pump activation program
Temperature setting lock
User password
Installer password
Timed backlight
Relay status indication
Operating detection correction
product positioning
Flush mounting
Setting range 5 - 37.7°C

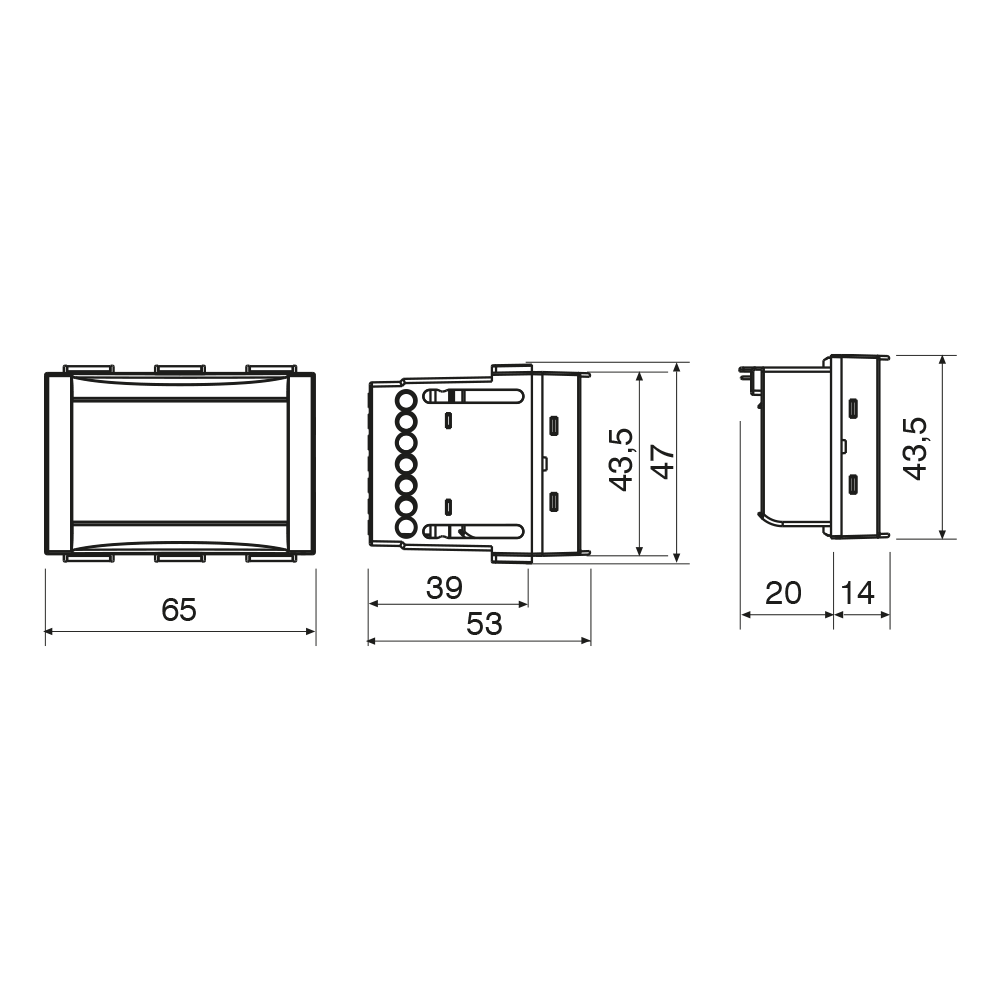

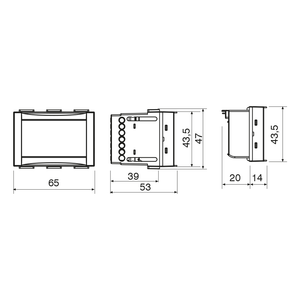

Dimensions (WxDxH) 65 x 53 x 47 mm
COMPATIBILITY OF SUPPLIED FRONT PLATES
ABB Chiara
BTICINO
Light, LivingLight Bianca, Light Tech, LivingLight Tech, Living, Living Light Anthracite,
Matix, Axolute Tech, Axolute Anthracite, Axolute Bianca
VIMAR
Plana, Plana Silver, Eikon Grey, Eikon Next, Eikon Bianca, Arké White, Arké Black
GEWISS
Chorus ONE/LUX/FLAT/GEO White
Chorus ONE/LUX/FLAT/GEO Black
Chorus ONE/LUX/FLAT/GEO Titanium
Product code: 1CRCDS26
