BATTERY POWERED 18V
DESCRIPTION:
• Part of the SKIL Energy Platform system: the flexible battery system with **Keep Cool TM technology.
• The battery's “**Keep Cool TM” technology increases runtime by 25% and doubles the lifespan
• Our patented “ActivCell™” system optimizes energy utilization, prevents overheating and maximizes battery performance
• “Brushless motor” for greater power, efficiency and longer life
• 3 functions: screwdriving, drilling and hammer drilling
• Hammer drill function for drilling in masonry work
• Two speeds: high speed for drilling and high torque for heavy screwdriving jobs
• 13mm keyless metal chuck with single ring nut and lock
• Automatic spindle lock for quick and easy accessory changes
• 17 torque settings for more precise screwdriving, 1 setting for regular drilling and 1 for hammer drilling
• The function selector to easily switch between screwdriving, drilling and hammer drilling functions
• Variable speed ensures smooth start and full control at all times
Technical data
| Voltage: | 20 V Max |
| Sound power: | 91.5 |
| Battery capacity: | 2.0 & 4.0 Ah |
| Battery cells: | "Brushless" motor |
| Number of batteries: | 2 |
| No-load speed: | 0-480/0-1800 /min |
| Maximum torque. hard joint: | 60 nm |
| Brushless: | Yes |
| Spindle type: | Self-locking metal one-handed |
| Two mechanical speeds: | Yes |
| Drilling capacity in masonry: | 13 mm |
| Drilling capacity in wood: | 50 mm |
| Drilling capacity in steel: | 13 mm |
| Maximum screw size: | 10 mm |
| Maximum number of strokes: | 0-7200/0-27000 /min |
| Charging time: | 1 h |
| Net weight, without battery: | 1.1 kg |
| Voltage/frequency (charger): | 220-240 V /50-60 Hz |
| Current charge: | 2.4 A |

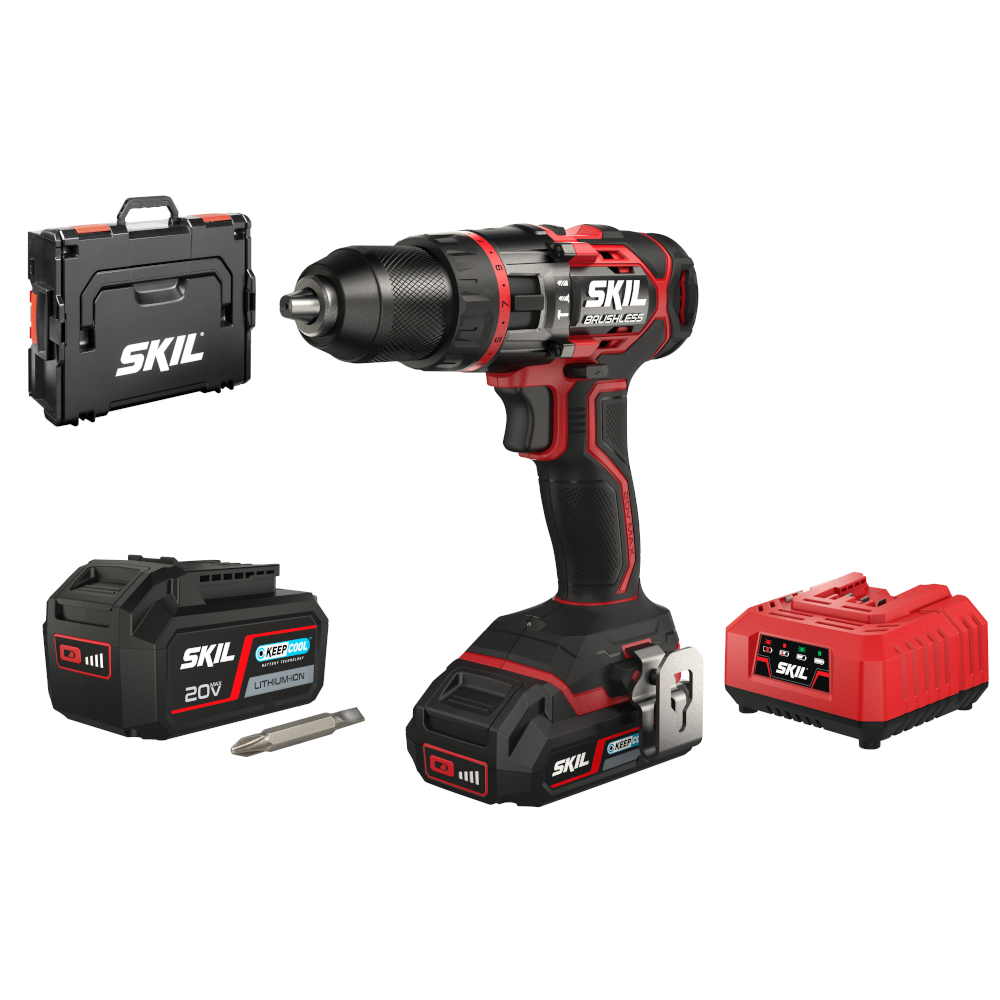

Contents

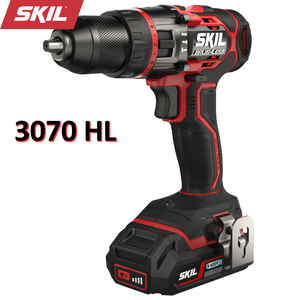

✓ SKIL 3070 "brushless" cordless hammer drill

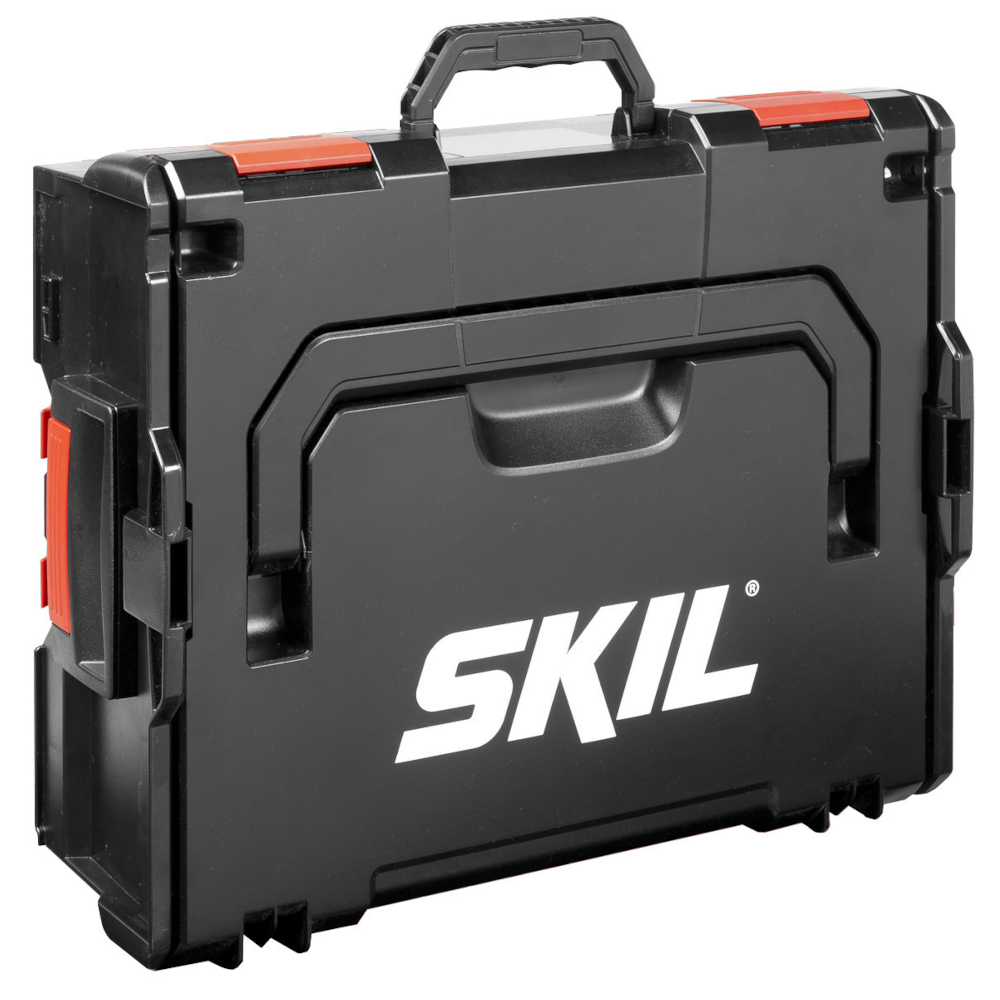

✓ L-BOXX

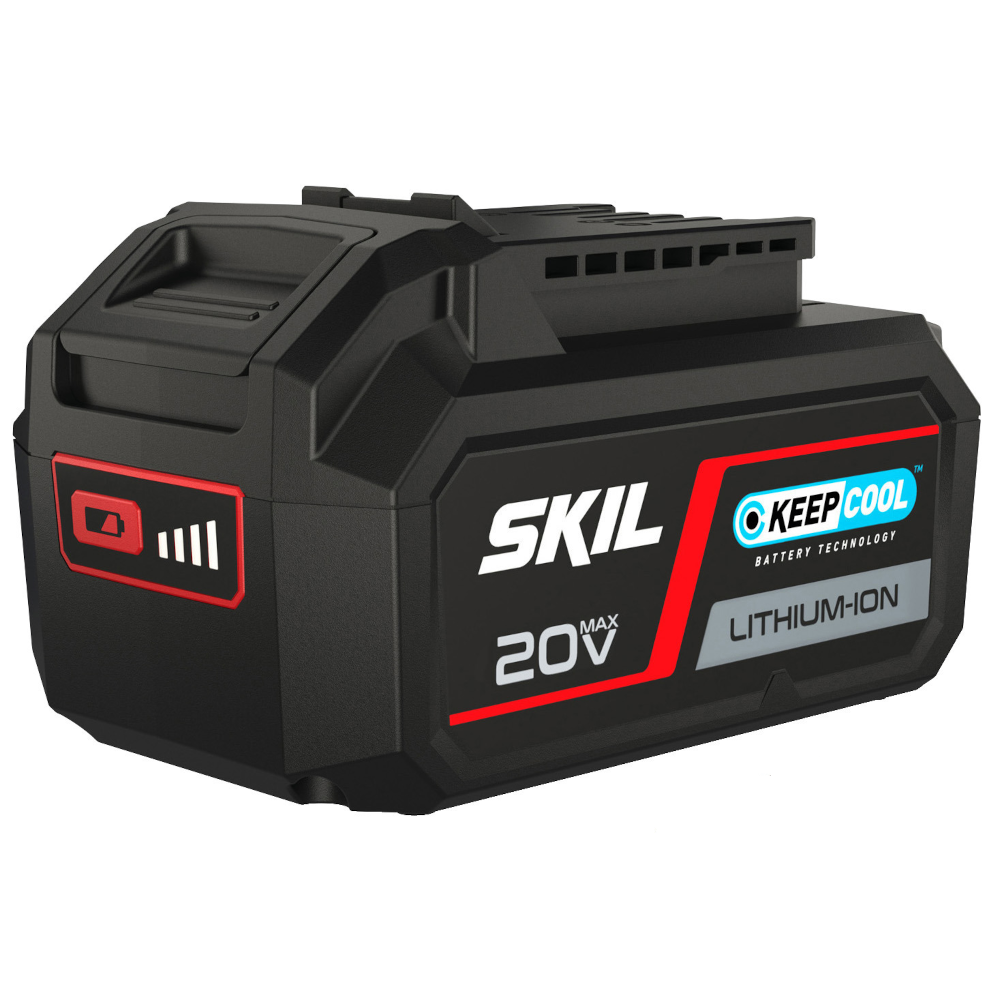

✓ "20V Max" (18 V) 4.0 Ah "Keep Cool TM" Lithium battery

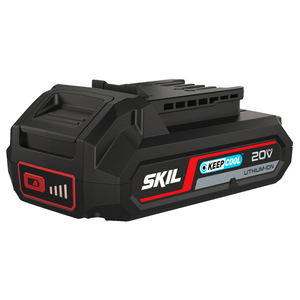

✓ "20V Max" (18 V) 2.0 Ah " Keep Cool TM" Lithium battery

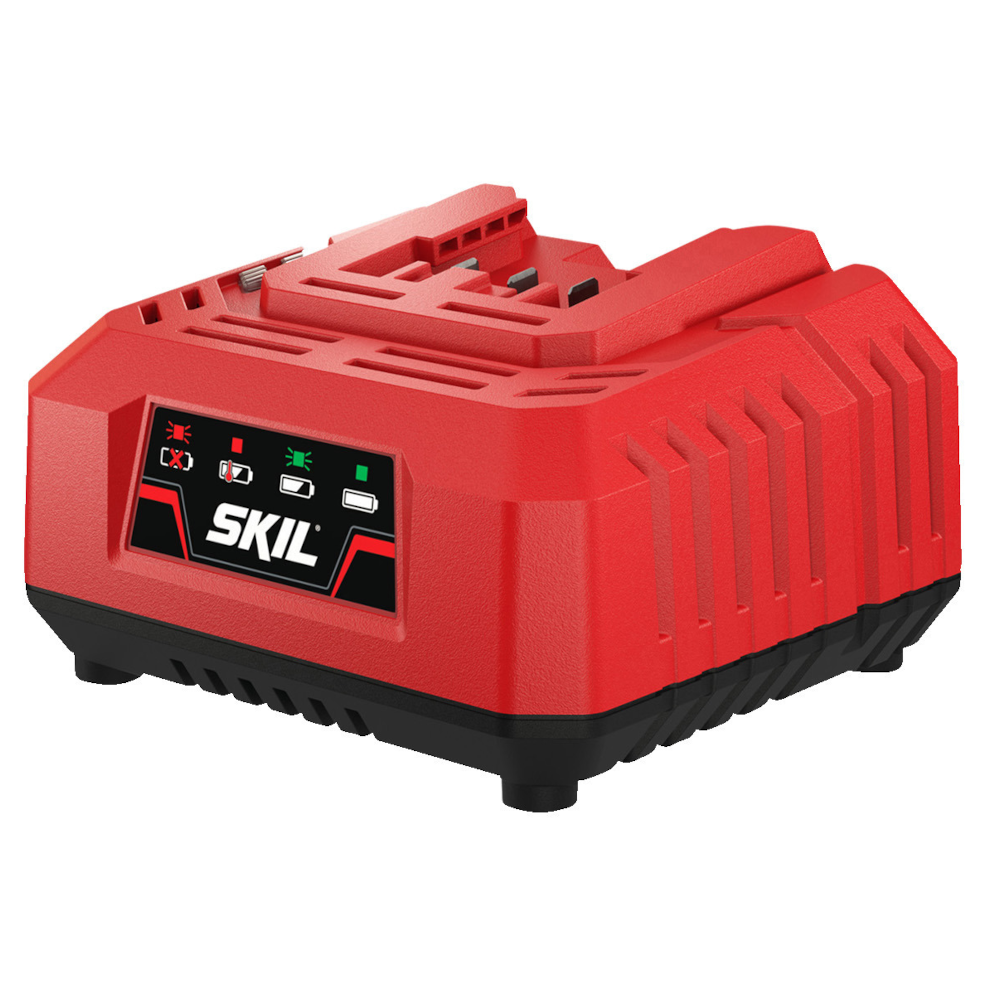

✓ Charger (3122 AA)
✓ Double-ended screwdriver bit
✓ Belt clip
✓ Instruction manual
Dimensions
• Tool length: 192 mm
• Tool width: 73 mm
• Tool height: 194 mm
• Net weight: 1.10 kg
Product code: CD1E3070HL
**KEEP COOL TM TOP ↑
OUR BEST INNOVATION
Energy Platform cordless power tools have integrated Keep Cool TM technology, which increases battery life by 25% and doubles its useful life. Each cell is incorporated into the Keep Cool TM phase change material, which changes from solid to liquid as the cell emits heat. This phase change material absorbs heat and keeps the battery operating at its optimal temperature for longer. This patented technology prevents batteries from overheating, thereby improving their performance.
