ELECTRIC AIR CURTAIN CM.200
 RETAINS HEAT & COLD

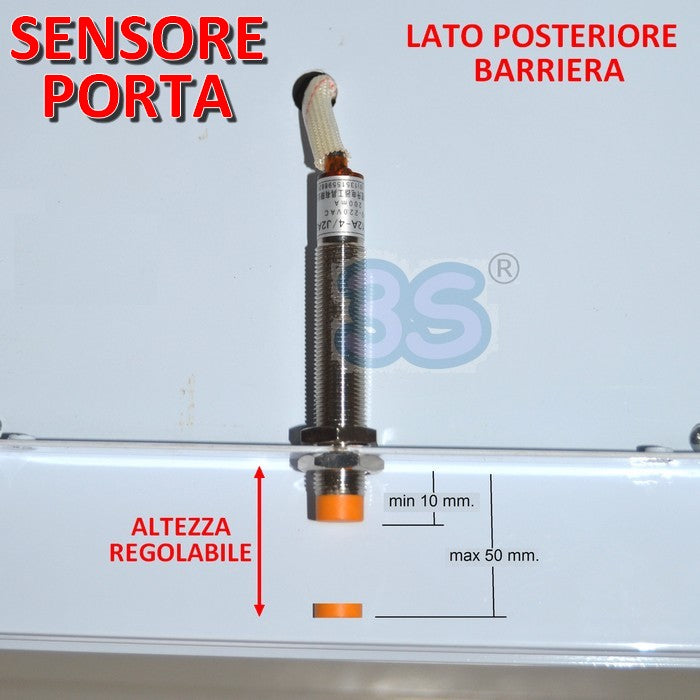

WITH DOOR SENSOR FOR AUTOMATIC ON AND OFF

WHAT IS THE AIR CURTAIN FOR?

IT IS USED TO RETAIN THE HEAT FROM WINTER HEATING AND THE COOLNESS FROM SUMMER AIR CONDITIONING IN SHOPS, OFFICES, SHOPPING CENTERS, BARS, PUBLIC PLACES, HOMES ETC.< br />ESSENTIAL AND IDEAL IN PREMISES WHERE THERE IS A CONTINUOUS FLOW OF PEOPLE ENTERING AND EXITING AND THEREFORE A CONTINUOUS OPENING AND CLOSING OF DOORS, OR WHERE THERE IS A NEED TO ALWAYS LEAVE THE DOORS OPEN TO FULLY OR FACILITATE ACCESS TO PEOPLE AND CUSTOMERS.

 Electric air curtain 90 cm

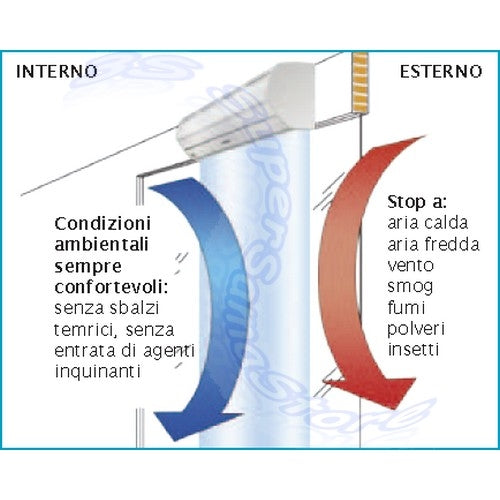

< p>AIR CURTAINS CAPABLE OF CREATING A SHIELD THAT SEPARATES COMMUNICATING ENVIRONMENTS, AVOIDING THERMAL EXCHANGES BETWEEN INSIDE AND OUTSIDE, CONTRIBUTING TO SIGNIFICANT SAVINGS IN HEATING AND AIR CONDITIONING.< br />THE ECONOMIC ADVANTAGE WOULD BE NOT ONLY ON ENERGY SAVINGS BUT ALSO ON A GREATER FLOW OF CUSTOMERS. IN FACT, A SHOP, BAR, ICE CREAM SHOP, RESTAURANT OR OTHER COMMERCIAL ACTIVITY THAT KEEPS THE DOORS OPEN SIGNIFICANTLY INCREASES THE STIMULUS FOR PEOPLE PASSING BY TO COME IN AND MAKE THEIR PURCHASES.

TECHNICAL DATA:

  • VOLTAGES AND FREQUENCY: 220-240 V 50 HZ
  • CURRENT POWER ACCORDING TO THE SECOND SPEED: 305/700W - 1.5 A
  • AIR VOLUME: 2550 / 2980 m3/h
  • AIR SPEED: Min 9.0 m/s - Medium 13.0 m/s - Max 16.0 m/s
  • NOISE: 58-64 db
  • NET WEIGHT: 32.5 Kg
  • DOOR SIZES TO BE APPLIED: 2000/2100 mm
  • CURTAIN DIMENSIONS: 2000X235X207

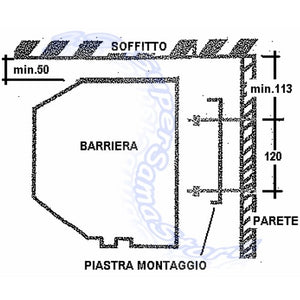

  • WALL MOUNTING - BRACKET INCLUDED

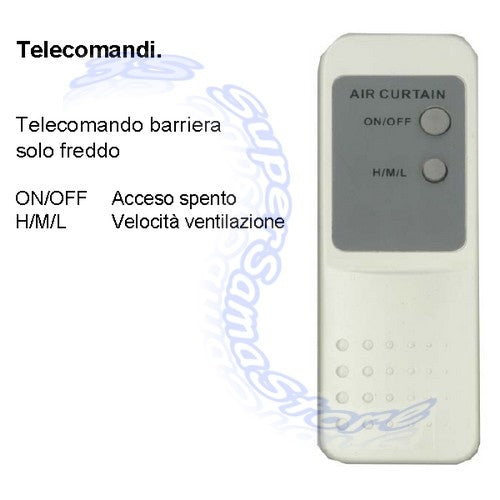

  • REMOTE CONTROL INCLUDED
  • WITH DOOR SENSOR FOR AUTOMATIC ON AND OFF

Product code: ACN-20





 technical data sheet





Description

ELECTRIC AIR CURTAIN CM.200
 RETAINS HEAT & COLD

WITH DOOR SENSOR FOR AUTOMATIC ON AND OFF

WHAT IS THE AIR CURTAIN FOR?

IT IS USED TO RETAIN THE HEAT FROM WINTER HEATING AND THE COOLNESS FROM SUMMER AIR CONDITIONING IN SHOPS, OFFICES, SHOPPING CENTERS, BARS, PUBLIC PLACES, HOMES ETC.< br />ESSENTIAL AND IDEAL IN PREMISES WHERE THERE IS A CONTINUOUS FLOW OF PEOPLE ENTERING AND EXITING AND THEREFORE A CONTINUOUS OPENING AND CLOSING OF DOORS, OR WHERE THERE IS A NEED TO ALWAYS LEAVE THE DOORS OPEN TO FULLY OR FACILITATE ACCESS TO PEOPLE AND CUSTOMERS.

 Electric air curtain 90 cm

< p>AIR CURTAINS CAPABLE OF CREATING A SHIELD THAT SEPARATES COMMUNICATING ENVIRONMENTS, AVOIDING THERMAL EXCHANGES BETWEEN INSIDE AND OUTSIDE, CONTRIBUTING TO SIGNIFICANT SAVINGS IN HEATING AND AIR CONDITIONING.< br />THE ECONOMIC ADVANTAGE WOULD BE NOT ONLY ON ENERGY SAVINGS BUT ALSO ON A GREATER FLOW OF CUSTOMERS. IN FACT, A SHOP, BAR, ICE CREAM SHOP, RESTAURANT OR OTHER COMMERCIAL ACTIVITY THAT KEEPS THE DOORS OPEN SIGNIFICANTLY INCREASES THE STIMULUS FOR PEOPLE PASSING BY TO COME IN AND MAKE THEIR PURCHASES.

TECHNICAL DATA:

  • VOLTAGES AND FREQUENCY: 220-240 V 50 HZ
  • CURRENT POWER ACCORDING TO THE SECOND SPEED: 305/700W - 1.5 A
  • AIR VOLUME: 2550 / 2980 m3/h
  • AIR SPEED: Min 9.0 m/s - Medium 13.0 m/s - Max 16.0 m/s
  • NOISE: 58-64 db
  • NET WEIGHT: 32.5 Kg
  • DOOR SIZES TO BE APPLIED: 2000/2100 mm
  • CURTAIN DIMENSIONS: 2000X235X207
  • WALL MOUNTING - BRACKET INCLUDED
  • REMOTE CONTROL INCLUDED
  • WITH DOOR SENSOR FOR AUTOMATIC ON AND OFF

Product code: ACN-20





 technical data sheet





MARQUE by WINTECO

200 cm electric centrifugal air curtain

ACN-20

395,55 €
395,55 €
Tax included. Shipping calculated at checkout.
Delivery in 2 to 3 days
Fast delivery throughout Belgium. Free on orders over €200.
You have 30 days to return your product.
Free returns for any product not installed in its original packaging.
2-year warranty
Parts and labor covered. 24/7 STS technical support included.
