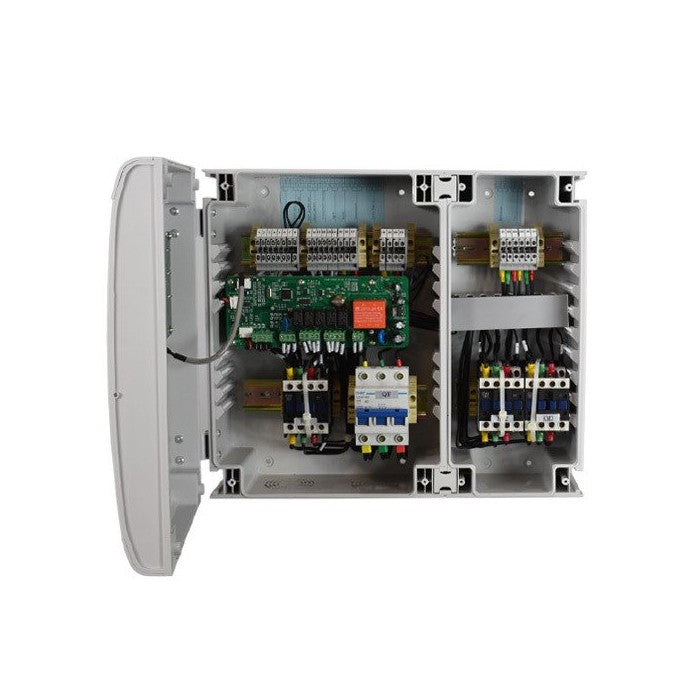

Versatile Electrical Control Panel for Cold Rooms

up to 5HP 380v 3Ph 50Hz

Elitech ECB-2030

Features:

The ECB-2030 is a modern controller for the complex operation of refrigeration systems with a three-phase compressor up to 5HP. Supervises the operation of the compressor, fan, trimmer, alarm, and lighting.

The hermetic casing with a large LED display ensures high safety and ease of use, reducing installation costs and time by combining the controller and panel with DIN rail protection.

Here are the main features of the ECB-2030:

1) Control temperature: -40 +85°C

2) Maximum fan capacity: 500w

3) Maximum cell light capacity: 300w

4) Defrost: 8A 220v

5) Alarm: 5A 200V

6) Probe type: NTC

7) Dimensions: 380x140x329 mm

< span style='font-size: 12pt;'>FUNCTIONS:

- Gas defrost
- Evaporator fan control
- Real-time clock
- Signaling with audible alarm
- RS-485 communication interface with Modbus protocol
- Compressor crankcase heater activation
- Two auxiliary outputs for control: lighting, condensate pump or alarm
- Two logic inputs: door, pressure switch, buttons, alarm, remote defrost, etc.

Product Code to: ECB-2030
