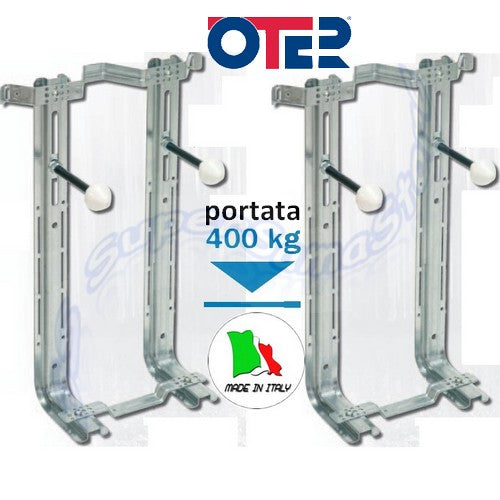

PAIR OF SUPPORTS for WALL-HUNG TOILETS
SUITABLE for WC and BIDET - OTER BASE
FEATURES:
About Us
Description
• It complies with regulations: UNI EN 997:2004 - When installed in the wall, it is tested for a load of 400 kg.
• Sanitaryware spacing: 160 - 180 - 200 - 230 [mm].
• Material: High-strength structural sheet metal, hot-dip galvanized Sendzimir. 20/10.

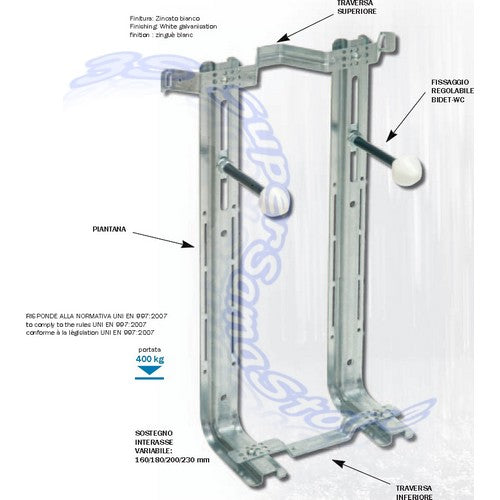

• The assembly between the uprights and crossbars is carried out using a PIN/HOLE coupling, secured by three-lobe self-tapping screws, which guarantees rigidity to the structure and maintains the defined wheelbase.
• Possibility to adjust the height of the sanitary fixture attachments during pipe installation.
• The upper crossbar allows the installation of the waste water pipe from the cistern, without any interference, even when insulated.
• It is assembled using a PH3 Phillips screwdriver and a 19 mm wrench.
Product Code: 0490Zx2
Description
PAIR OF SUPPORTS for WALL-HUNG TOILETS
SUITABLE for WC and BIDET - OTER BASE
FEATURES:
• It complies with regulations: UNI EN 997:2004 - When installed in the wall, it is tested for a load of 400 kg.
• Sanitaryware spacing: 160 - 180 - 200 - 230 [mm].
• Material: High-strength structural sheet metal, hot-dip galvanized Sendzimir. 20/10.
• The assembly between the uprights and crossbars is carried out using a PIN/HOLE coupling, secured by three-lobe self-tapping screws, which guarantees rigidity to the structure and maintains the defined wheelbase.
• Possibility to adjust the height of the sanitary fixture attachments during pipe installation.
• The upper crossbar allows the installation of the waste water pipe from the cistern, without any interference, even when insulated.
• It is assembled using a PH3 Phillips screwdriver and a 19 mm wrench.
Product Code: 0490Zx2
MARQUE
by
Prodotti KIT
Pair of universal mounting frames for wall-hung toilets and bidets - Oter Base Model
SKU:0490Zx2
