DESCRIPTION

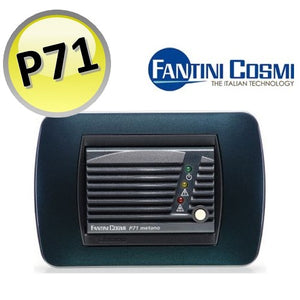

SICURGAS is a device that uses a highly sensitive probe to detect dangerous concentrations of methane and LPG.

ELECTRICAL CHARACTERISTICS

Power supply voltage 230 V~ 50 Hz

Consumption 3 VA< /span>

Output via electromagnetic relay

Contact rating: 5(3) A - 250 V~

REGULATIONS AND APPROVALS

Complies with CEI EN 60730-1 standards

INSTALLATION

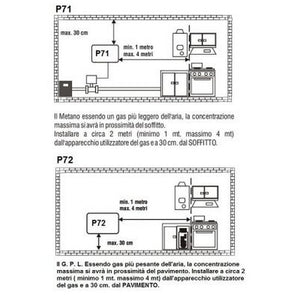

Flush mounted in 3-module flush-mounted boxes type 503 using 2 screws (kit).

FEATURES

Housing made of shockproof insulating material

Semiconductor sensor for gas detection

On Sicurgas, there are three warning lights:

-the green light indicates that the detector is working correctly

-the yellow light indicates a fault in the detector< /span>

-the red light indicates the presence of gas in the environment (ALARM).

The relay used is of the sealed type filled with inert gas, which in all cases ensures the absolute absence of sparks during switching phases.
