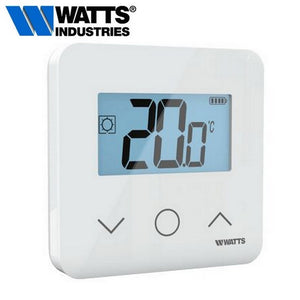

Wired digital room thermostat WATTS Vision WT-D03 HC 24-230 V. Power supply 24-230 V AC with automatic voltage detection. Description: Wired electronic room thermostat with backlit LCD display, setting range 5 - 35 °C, ambient temperature 0 - 40 °C. Protection rating IP 30. Power supply 24-230 V AC with automatic voltage detection. Various operating modes: comfort, eco, off, frost protection, timer. Control type: hysteresis (selectable from 0.2 to 3.0 K) or proportional (PWM), selectable in the menu. Open window detection. PIN code display lock and locking pins for installation in public areas. Sensing element: internal – Input for external NTC 10 kΩ temperature sensor at 25 °C (optional – ref. PPLELE06019) – e.g., remote sensor or floor sensor. Input for heating/cooling switching, in combination with WFC-..HC connection modules. Power: 1,000 W. Switching capacity: up to 5 actuators 24 V AC (1.6 W each) or up to 8 actuators 230 V AC (1.8 W each).
Complies with directives: 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU, 2015/1188/EU, 2013/813/EU.Product code: P08043
