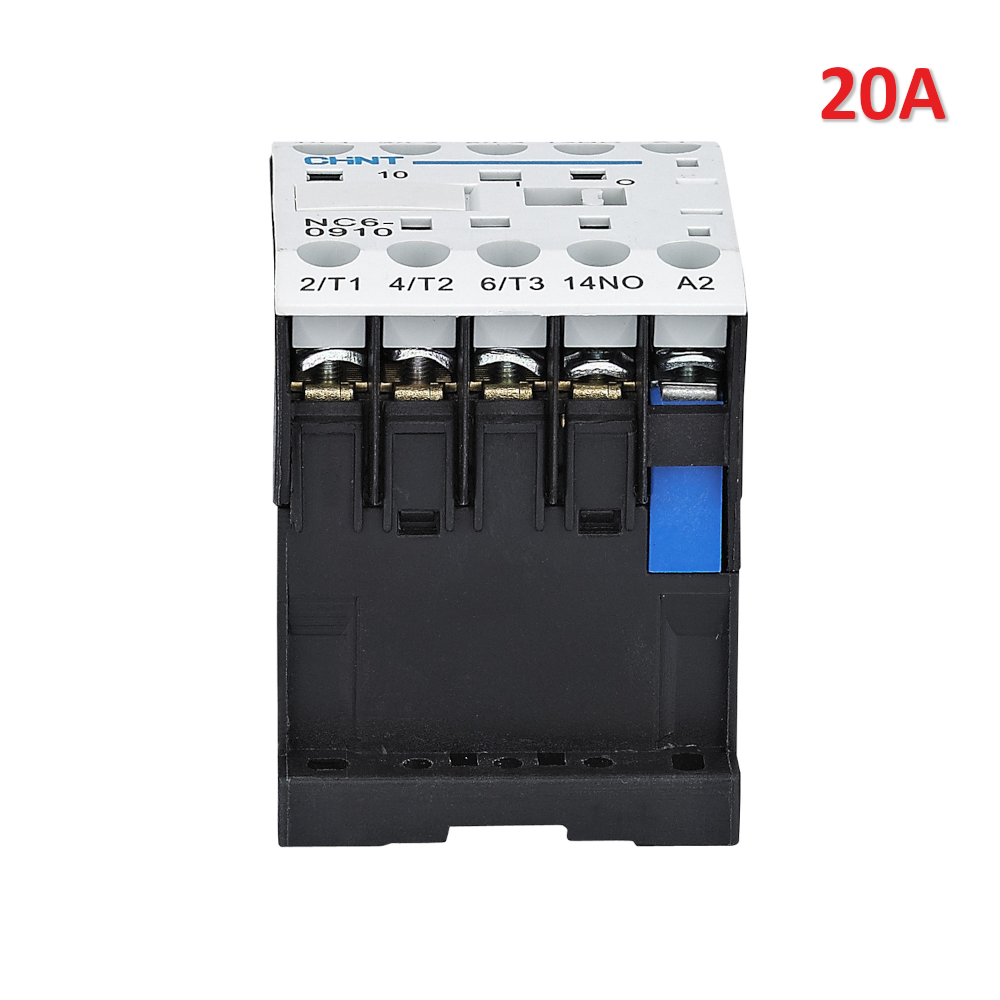

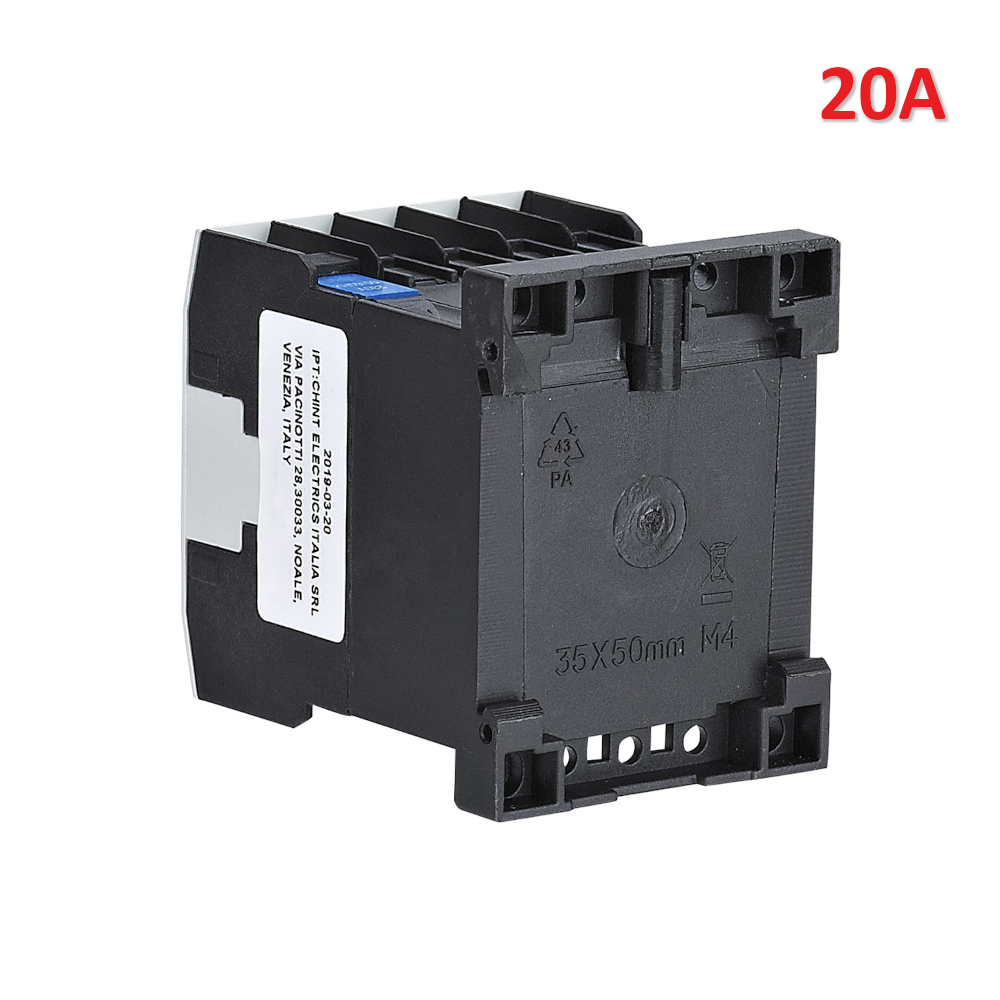

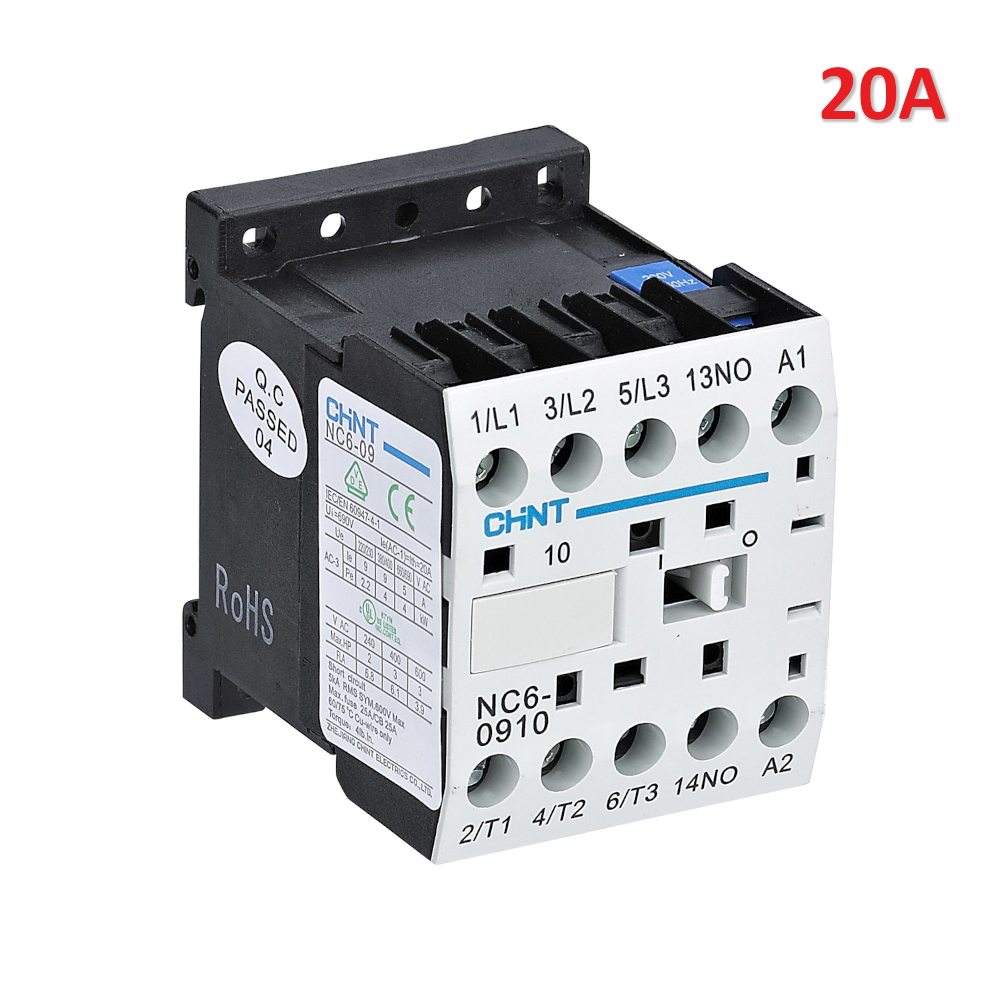

NC6-09.22/230V Mini Contactor NC6 Series 4P 20A(AC1) 9A(AC3) 2NC+2NO 230Vac
DESCRIPTION:
NC6, NC8 and NC8D series four-pole mini contactors. Rated voltage: 230-400-690 V. Insulation voltage: 690 V. NC6 and NC8 series: AC coil. NC8D series: DC coil. Current in AC1: 20 A. Current in AC3 at 400 V: up to 12 V. Operating temperature: -25°C~+70°C. Maximum altitude: ≤ 2000m. Mounting: horizontal or vertical mounting plane inclination not exceeding ±30°.
Technical characteristics:
- Reference standard: IEC/EN 60947-4-1
- Number of poles: 4P
- Rated contact current: AC-15; Ie = 0.95 A; Ue 400 V. Ie = 1.6 A; Ue 230 V. Ie = 10 A; Eu 36 V. DC-13; Ie = 0.15 A; Ue 220/250 V. Ie=0.92 A; Ue 24 V. Conventional thermal current Ith=10 A
- Rated voltage Vn: 230/400/690 Vac
- Rated frequency f: 50/60 Hz
- Insulation voltage Ui: 690 Vac
- Number of DIN modules (1 DIN = 18 mm): 2.5
- Protection rating: IP20
- Auxiliary contacts: 2NO+2NC
- Dimensions (h)x(w)x(d): 59x46x58 mm
- Current in AC1: 20 A
- Current in AC3 at 400V: 9 A
- Power in AC3 at 230V 2.2 kW
- Coil voltage in VAC 50/60 Hz: 230 Vac
- Coil absorption: In excitation 30 VA / In maintenance 4.5 VA
- More information: AC coil
- Corresponding accessories: NC6-F6 series top auxiliary contacts. NR2-11.5 thermal series relays.
Product code: 247538
