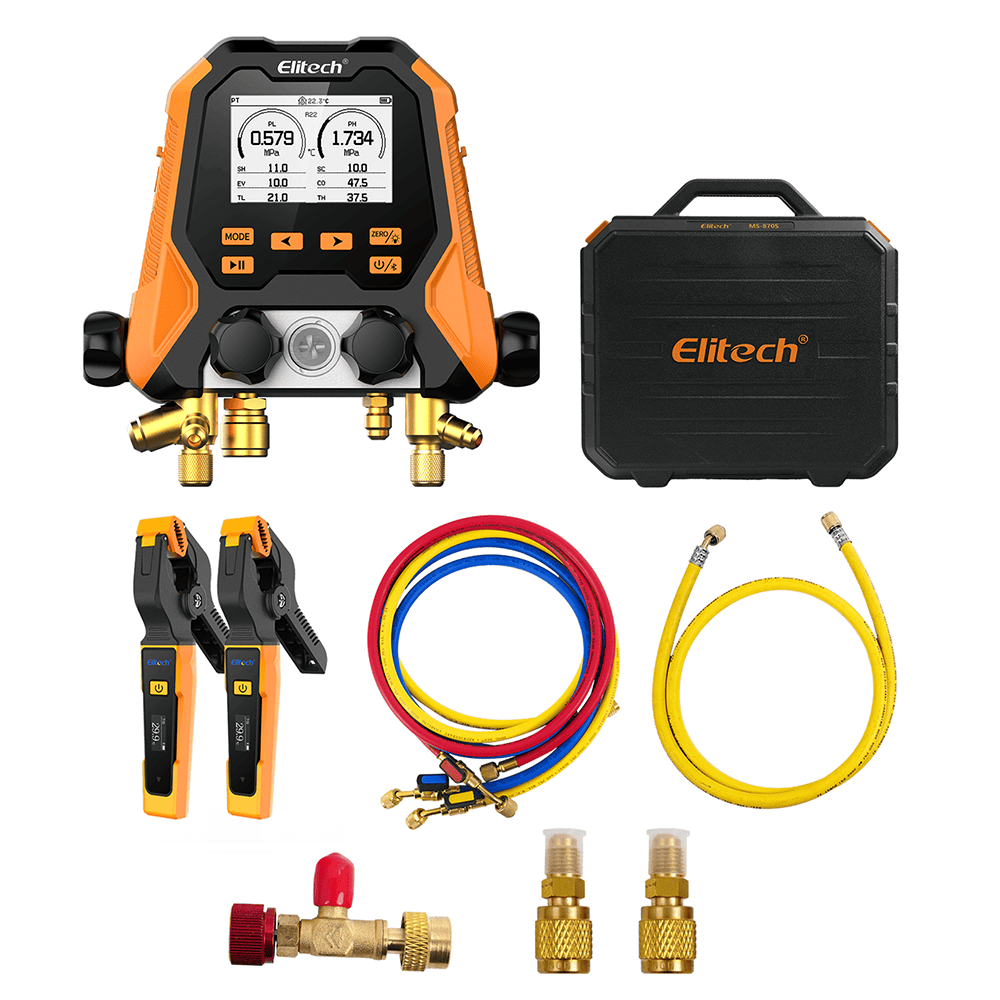

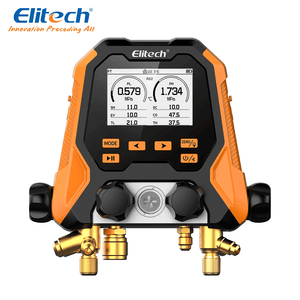

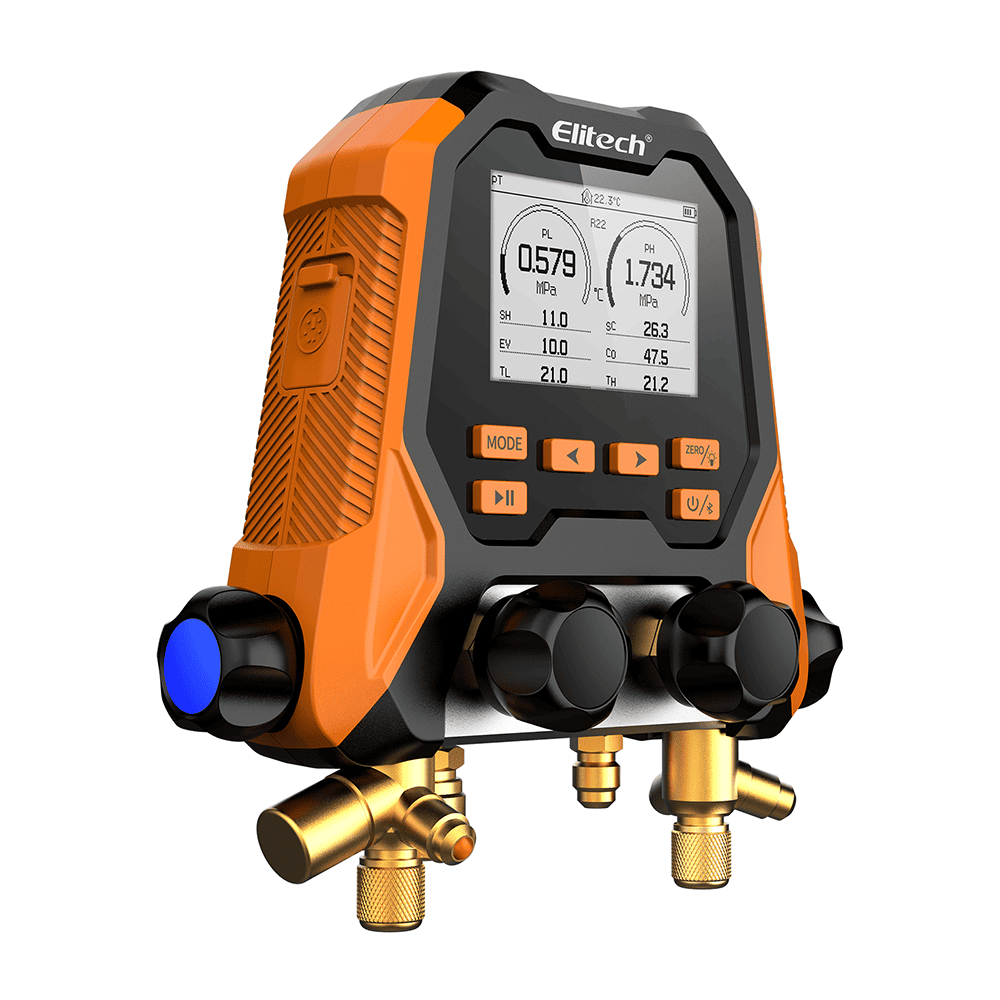

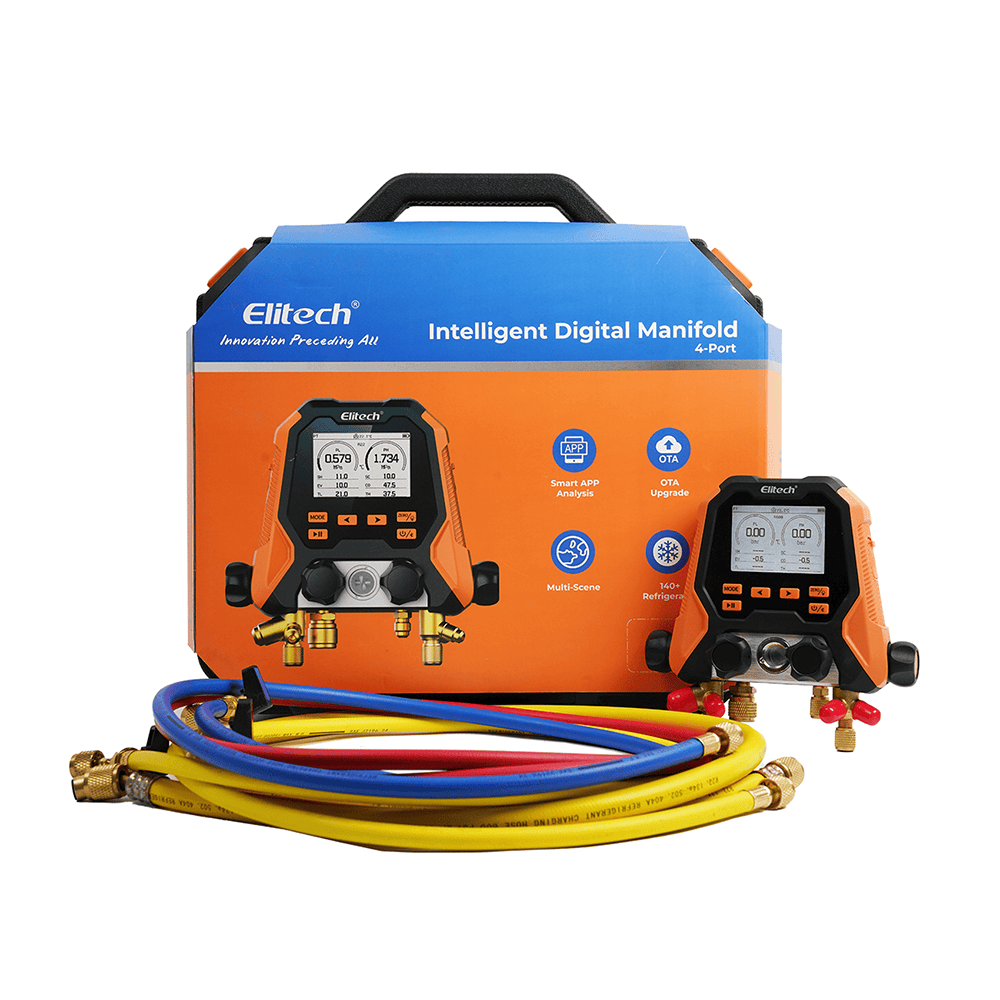

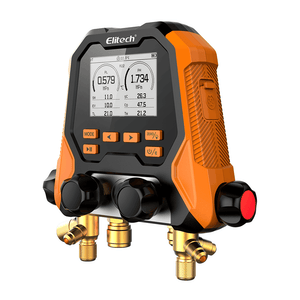

Elitech MS-870S 4-Way Smart Digital Manifold Gauge

Description:

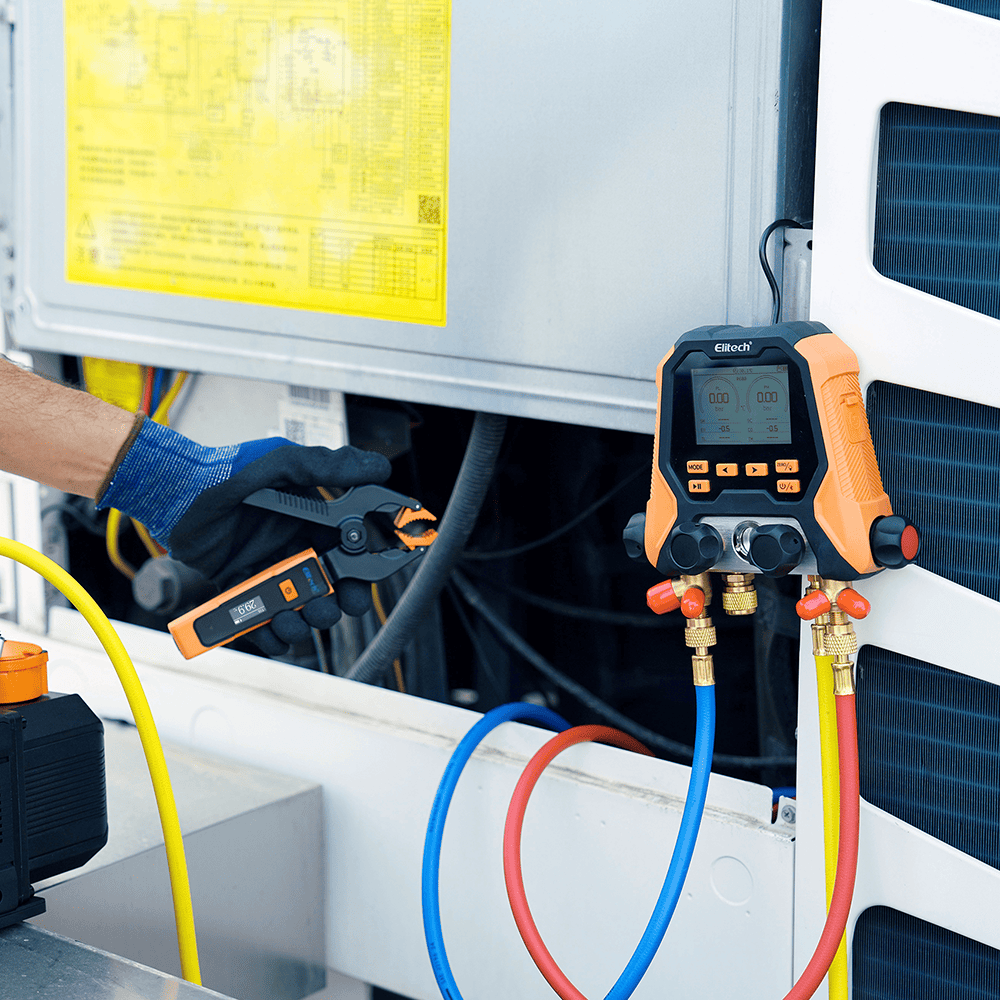

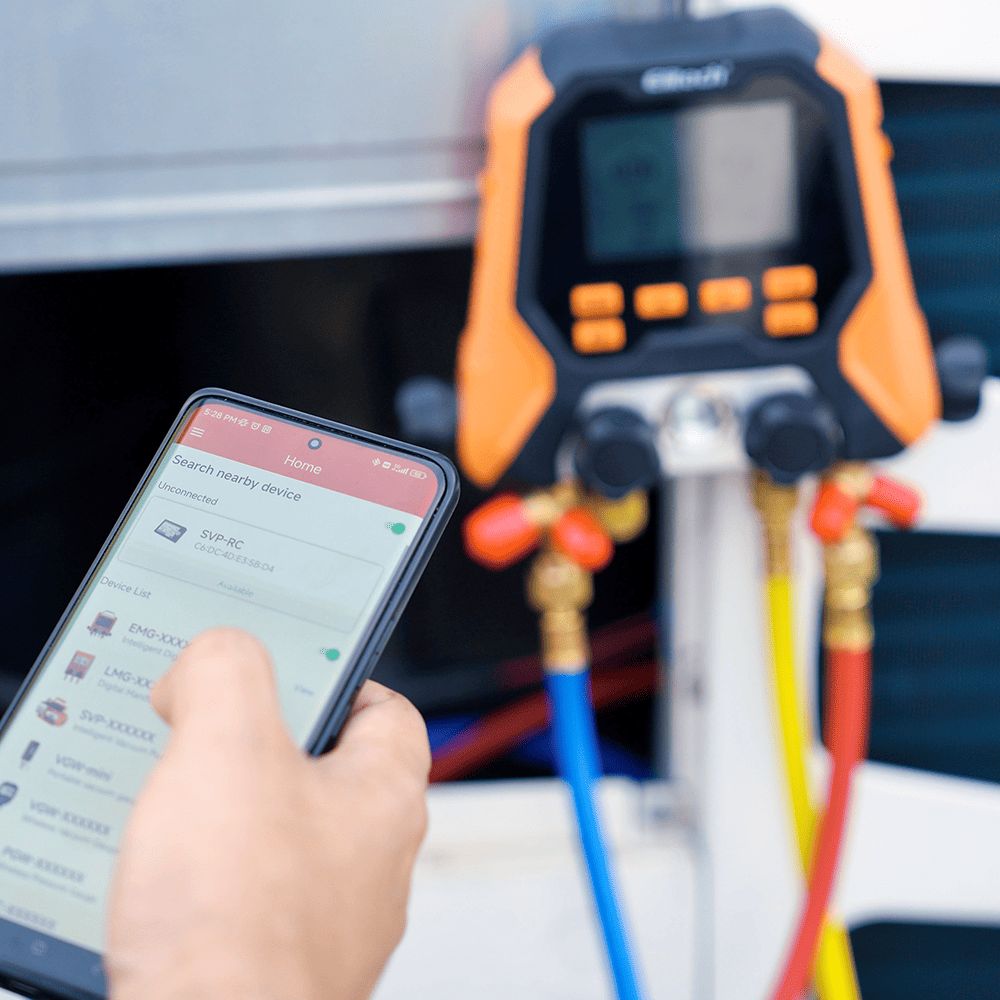

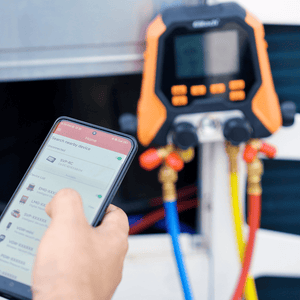

The Elitech MS-870 digital manifold gauge is a 4-in-1 manifold for HVAC systems. It combines pressure and temperature measurement, pressure holding, vacuum testing, and data logging. It offers high accuracy (±0.5% F.S.), supports 18 refrigerants, and connects via Bluetooth to the Elitech app for real-time monitoring, report viewing, and remote data management. Designed for durability, it boasts a long battery life of up to 150 hours and operates reliably even in harsh environments. Technical Data: Measuring Range: -14.5 to 800 psi Accuracy: ±0.5% F.S. Resolution: 0.5 psi style="line-height:1.5em;">Unit of Measurement: psi, kPa, MPa, bar, inHg

  • Selectable Refrigerants (preset in device): R11, R12, R13, R22, R290, R32, R134a, R404A, R410A, R407C, R408A, R409A, R458A, R448A, R449A, R500, R502, R600
  • Interface: 1/4 SAE ×3, 3/8 SAE ×1
  • Power Supply: 3*AA 1.5V battery
  • Battery Life: At least 150 hours (Bluetooth and backlight off)
  • Display: LCD
  • Dimensions: 186×186×66 mm
  • Weight: 1300g
  • Working Temperature: -10 to 50°C / 14 to 122°F
  • Storage Temperature: -20 to 60°C / -4 to 140°F
  • Product Code: MS-870S

    Description

    Elitech MS-870S 4-Way Smart Digital Manifold Gauge

    Description:

    The Elitech MS-870 digital manifold gauge is a 4-in-1 manifold for HVAC systems. It combines pressure and temperature measurement, pressure holding, vacuum testing, and data logging. It offers high accuracy (±0.5% F.S.), supports 18 refrigerants, and connects via Bluetooth to the Elitech app for real-time monitoring, report viewing, and remote data management. Designed for durability, it boasts a long battery life of up to 150 hours and operates reliably even in harsh environments. Technical Data: Measuring Range: -14.5 to 800 psi Accuracy: ±0.5% F.S. Resolution: 0.5 psi style="line-height:1.5em;">Unit of Measurement: psi, kPa, MPa, bar, inHg

  • Selectable Refrigerants (preset in device): R11, R12, R13, R22, R290, R32, R134a, R404A, R410A, R407C, R408A, R409A, R458A, R448A, R449A, R500, R502, R600
  • Interface: 1/4 SAE ×3, 3/8 SAE ×1
  • Power Supply: 3*AA 1.5V battery
  • Battery Life: At least 150 hours (Bluetooth and backlight off)
  • Display: LCD
  • Dimensions: 186×186×66 mm
  • Weight: 1300g
  • Working Temperature: -10 to 50°C / 14 to 122°F
  • Storage Temperature: -20 to 60°C / -4 to 140°F
  • Product Code: MS-870S

    MARQUE by Elitech

    Elitech MS-870S 4-Way Intelligent Digital Manifold Gauge

    SKU:MS-870S

    Regular price
    430,24 €
    Sale price
    430,24 €
    Regular price
    Tax included. Shipping calculated at checkout.
    Delivery in 2 to 3 days
    Fast delivery throughout Belgium. Free on orders over €200.
    You have 30 days to return your product.
    Free returns for any product not installed in its original packaging.
    2-year warranty
    Parts and labor covered. 24/7 STS technical support included.
