Technical Information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.8 / 3.5 / 4.0 kW

• Heating capacity (Min./Nom./Max):

  0.9 / 4.0 / 6.6 kW

• Power consumption - cooling (Min./Nom./Max):

  - / 0.91 / - kW

• Power consumption - heating (Min./Nom./Max):

  - / 1.02 / - kW

• Capacity (BTU):

  12,000 BTU

• Seasonal cooling efficiency SEER:

  8.6

• SCOP:

  4.6

• Annual energy consumption (Cooling/Heating):

  142 / 1020 kWh

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A++

• Operating range (cooling):

  -10 ~ 46 °C

• Operating range (heating):

  -25 ~ 24 °C

• Suitable for rooms up to:

  25 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1 ~ / 50 / 220 to 240

• Indoor unit
• Size:

  280 x 838 x 229 H x W x D (mm)

• Weight:

  10 kg

• Sound pressure - cooling (High/Nom./Low/Silent):

  47 / 42 / 36 / 19 dB

• Sound pressure - heating (High/Nom./Low/Silent):

  52 / 49 / 42 / 19 dB

• Outdoor unit
• Size:

  714 x 800 x 285 H x W x D (mm)

• Weight:

  40 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound pressure - cooling (High/Nom./Low/Silent):

  49 / - / - / - dB

• Sound pressure - heating (High/Nom./Low/Silent):

  52 / - / - / - dB

• Basic
• Capacity (BTU):

  12,000 BTU

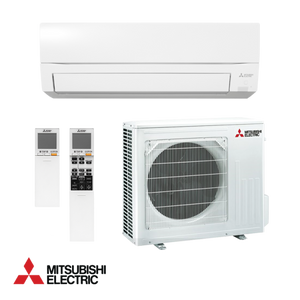

• Shipping Package - MITSUBISHI NINJA MSZ-FT35VGK INDOOR
• Number of packages:

  1 piece

• Package size (HxWxD cm):

  30 x 86 x 28; Weight: 12 kg.

• Shipping Package - MITSUBISHI NINJA MUZ-FT35VGHZ OUTDOOR
• Number of packages:

  1 piece

• Package size (HxWxD cm):
