Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  3.9 / 10.2 / 11.0 kW

• Heating capacity (Min./Nom./Max):

  4.1 / 10.5 / 14.0 kW

• Power consumption - cooling (Min./Nom./Max):

  - / 2.8 / - kW

• Power consumption - heating (Min./Nom./Max):

  - / 2.28 / - kW

• Capacity (BTU):

  34,000 BTU

• SEER seasonal cooling efficiency:

  8.21

• SCOP:

  4.65

• Energy label (Cooling / Heating) - Average climate:

  A++ / A++

• Operating range (cooling):

  -10 ~ 46 °C

• Operating range (heating):

  -15 ~ 24 °C

• Maximum number of indoor units:

  5

• Suitable for rooms up to:

  65 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1 ~ / 50 / 220 to 240

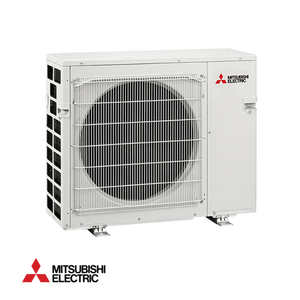

• Outdoor unit
• Size:

  796 x 950 x 330 H x W x L (mm)

• Weight:

  62 kg

• Sound pressure - cooling (high/nominal/low/silent):

  52 / - / - / - dB

• Sound pressure - heating (high/nominal/low/silent):

  56 / - / - / - dB

• Shipping package - MITSUBISHI MXZ-5F102VF MULTI
• Number of packages:

  1 piece

• Package size (HхWхD cm):

  79.6 x 95 x 33; Weight: 69 kg.
