Technical information

• Basic
• Cooling capacity (Min./Nom./Max) :

  2.9 / 5.4 / 6.8 kW

• Heating capacity (Min./Nom./Max) :

  2.6 / 7.0 / 9.0 kW

• Power input - cooling (Min./Nom./Max) :

  - / 1.32 / - kW

• Power input - heating (Min./Nom./Max) :

  - / 1.4 / - kW

• Capacity (BTU) :

  18 000 BTU

• EER:

  4.09

• SEER:

  8.52

• FLIC:

  5

• SCOP:

  4.61

• Annual energy consumption (Cooling/Heating) :

  222 / 1520 kWh

• Energy label (Cooling / Heating) - Average climate :

  A+++ / A++

• Operating range (cooling) :

  -10 ~ 46 °C

• Operating range (heating) :

  -15 ~ 24 °C

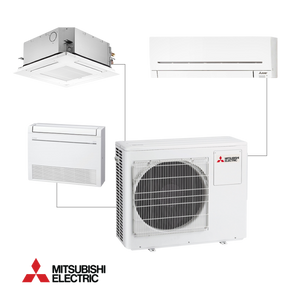

• Maximum number of indoor units :

  3

• Suitable for rooms up to :

  45 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage) :

  1 ~ / 50 / 220 to 240

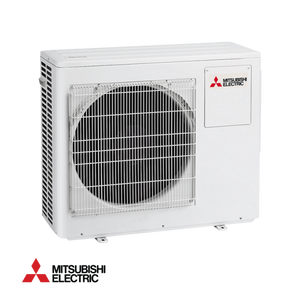

• Outdoor unit
• Size:

  710 x 840 x 330 H x W x L (mm)

• Weight:

  58 kg

• Sound pressure - cooling (high/nominal/low/silent) :

  46 / - / - / - dB

• Sound pressure - heating (high/nominal/low/silent) :

  50 / - / - / - dB

• Transport package - MITSUBISHI MXZ-3F54VF MULTI
• Number of packages :

  1 piece

• Package size (HхWхD cm) :

  75 x 90 x 40; Weight: 64 kg.
