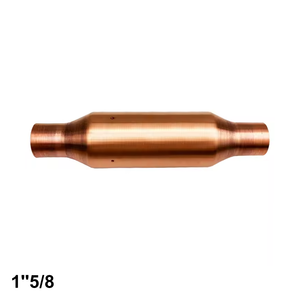

1 5/8 Copper Magnetic Check Valve for Refrigeration Circuit

Description:

This 1 5/8 copper magnetic check valve for refrigeration circuits is a component designed to prevent the return of refrigerant fluid in the system, thus ensuring unidirectional flow.

General characteristics:

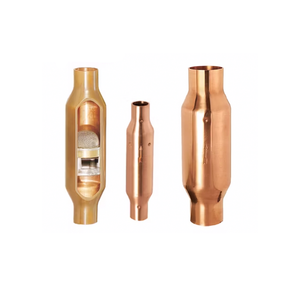

Magnetic valve seat, technical coating diaphragm. 1 5/8 copper connection.
Near-zero internal leakage rate.
Compatible with all CFC, HCFC, and HFC refrigerants and oils.
Operating temperature range: -40 °C to +130 °C.
- Minimal flow resistance, high flow rate.
- Compact size, lightweight, and installable in all positions.
- Unprotected valve body: no more need for protection. More than a check valve, it is also a filter. Specifications: Copper body, ideal for refrigeration applications. Size: 1 5/8" connections (approx. 41.28 mm diameter). Magnetic operation: Uses a magnetic mechanism for better sealing and optimal flow. Application: Suitable for commercial refrigeration and air conditioning systems. Compatibility: Can be used with common refrigerants such as R22, R134a, R404A, R407C, R410A, and R507. />Installation: Welds directly to copper pipes, ensuring a secure and durable connection.

Data:

Connection: 1 5/8
Allowable operating pressure (kPa): 3000
Outer Diameter (OD): 80 mm
Length: 267 mm
Mesh No.: 40
Liquid capacity: 397.7 kW

Product code: MCV-42
