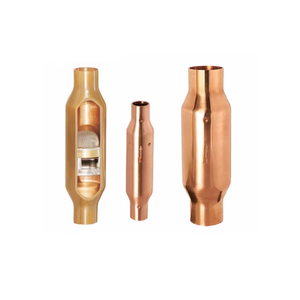

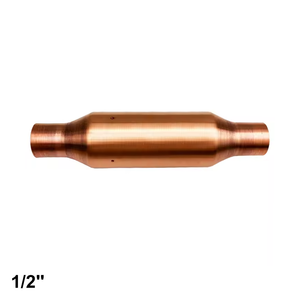

1/2" Copper Magnetic Check Valve for Refrigeration Circuit

Description:

A 1/2" copper magnetic check valve for refrigeration circuit is a component designed to prevent the backflow of refrigerant in the system, ensuring unidirectional flow. General features: Magnetic valve seat, thermometric membrane. 1/2" copper connection. Almost zero internal leakage. Compatible with all CFC, HCFC, and HFC refrigerants and oils. Operating temperature range: -40 °C to +130 °C. Low flow resistance, high flow rate. Compact size, light weight, and can be installed in any position. Valve body without thermal protection. Not just a check valve, but also a filter.

Specifications:

Material: Copper body, ideal for refrigeration applications.
Size: 1/2" connections (approximately 12.7 mm diameter).
Magnetic operation: Uses a magnetic mechanism to improve sealing and flow responsiveness.
Application: Suitable for commercial refrigeration and air conditioning systems.
Compatibility: Can be used with common refrigerants such as R22, R134a, R404A, R407C, R410A, and R507.
Installation: Solders directly onto copper pipes, ensuring a secure and durable connection.

Data:

Connection: 1/2"
Allowable operating pressure (Kpa): 5200
Outer diameter (OD): 29 mm
Length: 127 mm
Mesh No.: 40
Liquid capacity: 38.2 kW

Product Code: MCV-12
