ADVANCED DIGITAL CORDLESS MOTOR 20V
DESCRIPTION:
The 3085 "20V Max" is an extraordinarily powerful two-speed cordless hammer drill with high torque and is part of the SKIL "XP brushless" range. "XP" offers exceptional performance and durability, thanks to its high specifications and advanced digital "brushless" technology. Like all other "20V Max" cordless tools, this model is powered by the industry-leading "PWRCORE 20" advanced battery and charger technology. The SKIL 3085 is a "brushless" battery-operated impact drill with hammer function. Thanks to its exceptional performance and intelligent power management, this tool is the right choice for drilling into wood, metal and also masonry. In addition, it is suitable for both most heavy-duty screwdriving tasks and for making large diameter holes at high speed. The "brushless" digital model offers more power, greater efficiency, and a 10 times longer lifespan than a similar brushed motor. The intelligent anti-kickback braking technology improves user protection by stopping the tool in case of kickback during jamming. The tool is equipped with two speeds and 24+1+1 torque settings, for smooth and impact drilling and precise screwdriving. Thanks to the function selector, you can easily switch between screwdriving, drilling and hammer drilling functions. This tool is equipped with an integrated 13 mm self-tightening metal ratcheting chuck, for optimal bit grip. The advanced LED headlight with 2 modes, including flashlight mode, ensures optimal visibility on the workpiece. The automatic spindle lock allows for easy accessory replacement. In summary, this versatile tool offers truly exceptional performance. Reliable lithium battery, variable high speed for total control and a soft grip for greater working comfort. The SKIL "PWRJUMP™" automatically recharges the "PWRCORE 20" battery from 0% to 15% in the first 5 minutes, so you can get back to work in no time. The "PWRASSIST" USB adapter allows you to charge your mobile devices on the go. The SKIL 3085 HB is supplied in a case with two "KEEPCOOL" 4.0 Ah batteries, an "Auto PWRJUMP" ultra-fast charger and a 6.0 A charger and a "PWRASSIST" USB charging adapter.
FEATURES:
• "Brushless" digital: more power, greater efficiency and 10 times longer lifespan
• High torque, for effortless drilling and screwdriving
• Side handle for safe two-hand control
• Hammer drill function for drilling in masonry
• Anti-kickback braking technology: shuts off the tool in case of kickback during jamming, for better user protection
• Ergonomic design and soft grip for optimal comfort and control
• "ACTIVCELL™": patented intelligent interaction between battery and tool, for maximum performance and battery protection
• Automatic "PWRJUMP™": Recharges from 0% to 15% in the first 5 minutes (4.0 Ah battery / 100% in 50 min.)
• SKIL "XP": exceptional performance thanks to high specifications, "brushless" advanced and industry-leading battery technology
• Advanced portable LED headlight with 2 modes, including flashlight mode with auto-off function after 10 minutes
• Belt clip for easy tool transport
• The "**Keep Cool ™" battery technology increases battery life by 25% and doubles its lifespan
• Function selector for easy switching between screwdriving, drilling and hammer drilling functions
• Variable speed ensures smooth start-up and full control at all times
• 24 torque settings for more precise screwdriving 1 setting for regular drilling and 1 for hammer drilling
• Automatic spindle lock for quick and easy accessory change
• Lithium technology: no memory effect, no self-discharge and always ready to use
• 13 mm metal keyless chuck for optimal bit grip
• Part of the *PWRCore 20 ™ system by SKIL: THE flexible battery system.
• Two speeds: high speed for drilling and high torque for heavy-duty screwdriving tasks
• "PWRASSIST™": the USB adapter allows you to charge mobile devices on the go
< span style='font-size: 12pt; color: #ff0000;'>TECHNICAL DATA:
| Voltage: | 20 V |
| Max. battery capacity: | 4.0 Ah |
| Battery cells: | Li-Ion |
| Number of batteries: | 2 |
| No-load speed: | 0-500/0-1800 /min |
| Max. torque in hard joints: | 130 nm |
| Brushless: | Yes |
| Perforation medium type: | Quick opening ring with lock and locking mechanism |
| Drilling capacity in masonry: | 13 mm |
| Drilling capacity in wood: | 50 mm |
| Drilling capacity in steel: | 13 mm |
| Clutch settings: | 24+1 +1+1 |
| Max. impacts: | 0-7500/0-27000 /min |
| Recharge time: | 0.8 h |
| Voltage/frequency (charger): | 220-240 V / 50-60 Hz |
| Charging current: | 6 A |
| LED light: | Yes |
CONTENTS:

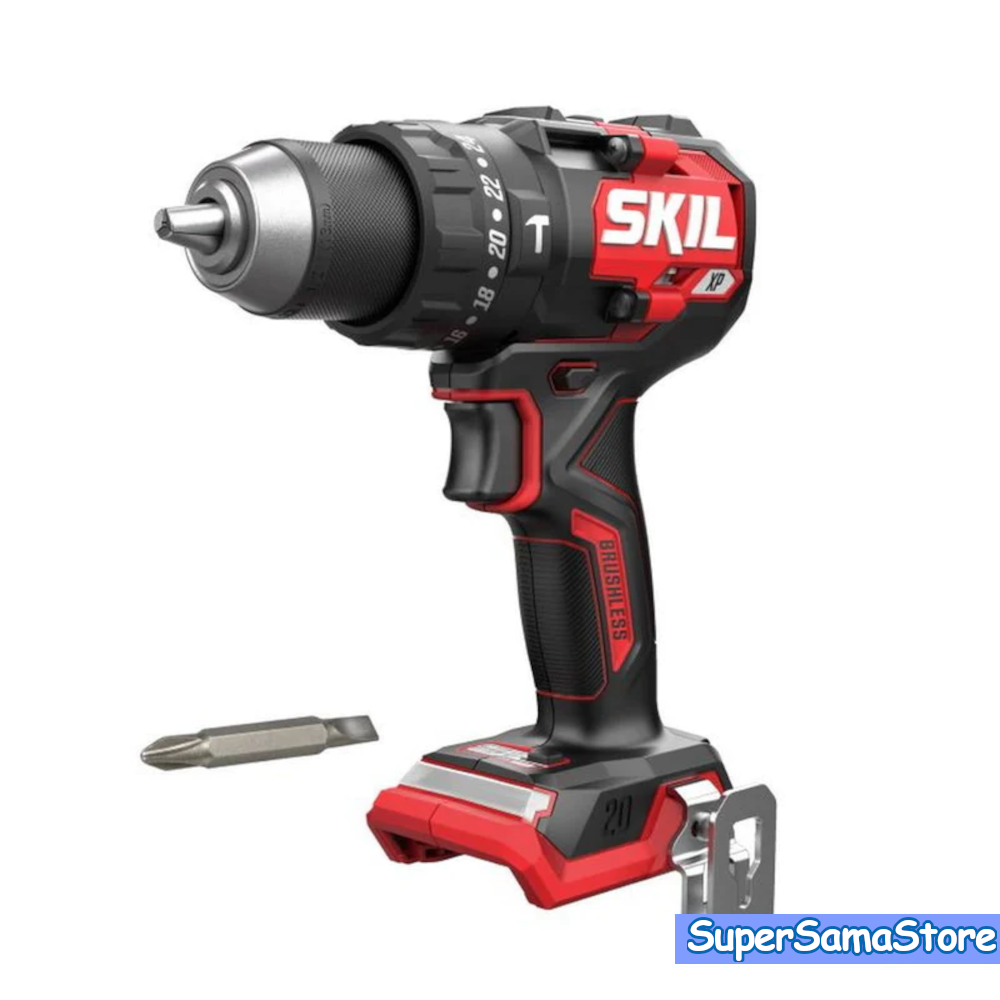

✓ SKIL 3085 "XP" Cordless "Brushless"
✓ 2 "PWRCORE 20°" lithium batteries from 4.0 Ah (3104)
✓ "Auto PWRJUMP™" 6.0 A (3123)
✓ "PWRASSIST™" USB battery charging adapter (3162)
✓ Carry case
✓ Instruction manual
✓ Keyless chuck with "SDS+" adapter
✓ Screw bits, 10 pieces (PH1, PH2, PH3, PZ1, PZ2, PZ3, S4, S6, T20, T25)
✓ Instruction manual
Product code: CD1E3085HB
*PWRCORE 20 ™ TOP ↑
EXTREME POWER AND PERFORMANCE
12V lithium batteries guarantee optimal flexibility, as they can power all PWRCore 12V power tools. PWRCore 20 ™ are available with and without batteries to give you the flexibility to add more power tools to your kit without having to purchase new batteries and chargers.
**KEEP COOL ™ TOP ↑
OUR BEST INNOVATION
Energy Plattform cordless power tools incorporate Keep Cool ™ technology, which increases battery life by 25% and doubles its useful life. Each cell is embedded in the Keep Cool ™ phase change material, which transitions from solid to liquid when the cell emits heat. This phase change material absorbs heat and keeps the battery operating at its optimal temperature for longer. This patented technology prevents batteries from overheating, thereby improving their performance.
