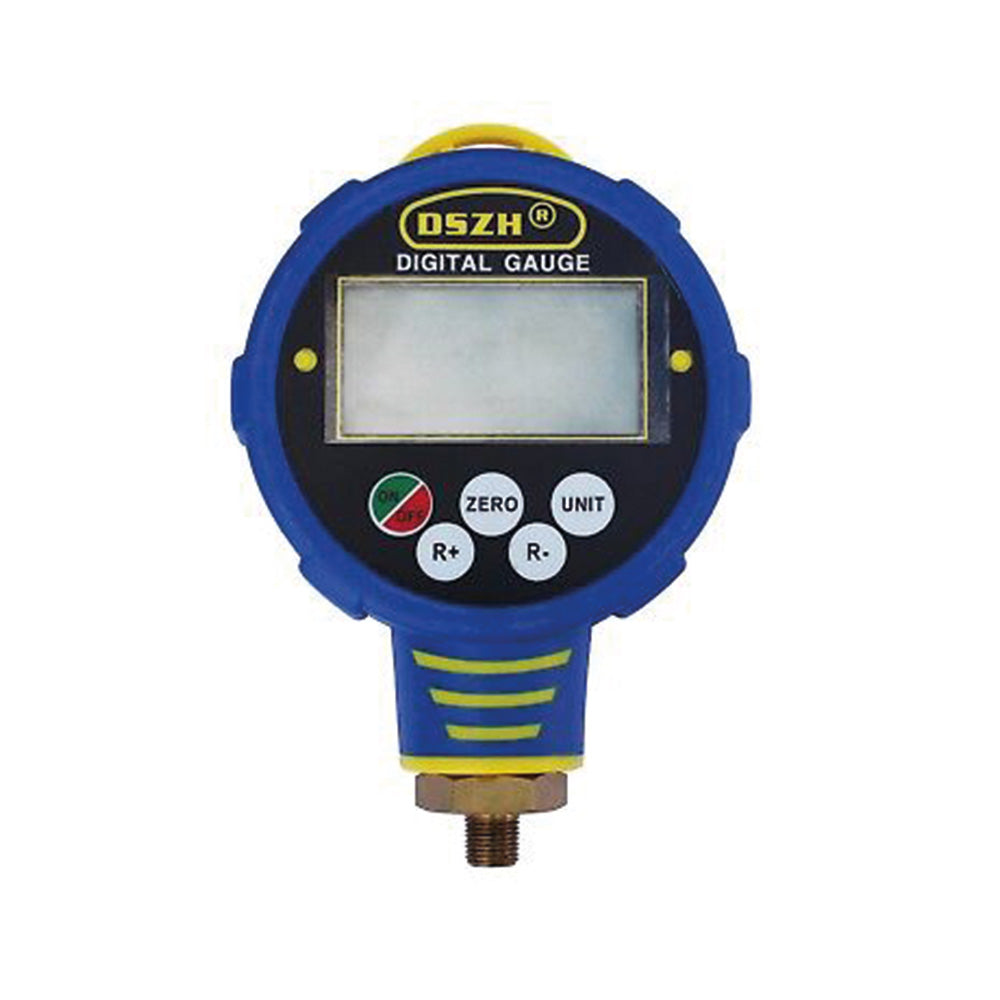

DIGITAL LOW-PRESSURE GAUGE
universal for refrigerant gas
Digital pressure gauges adopt high-precision sensors used to detect working pressures and temperatures of 82 different types of refrigerants, including vacuum degree control.
Features.
Quick selection with press/empty button.
Database for 82 different types of refrigerated products
Vacuum measurement with drilling value< / p>
Battery charge indicator.
1 /8' npt male threaded connection
Specifications.
| Measurement units |
Pressure: Psi / Kpa / bar / inHg / KgF/cm² / Torr Temperature: °F / °C |
| Connections | 1/8' Npt | < /tr>
| Measurement ranges |
Low pressure / High pressure: 0 – 6 MPa resolution 1 Kpa accuracy ±0.5% of reading Vacuum: 0 - 100kPa ± 5 microns |
| Overpressure | 100 bar, 10 Mpa | < /tr>
| Refrigerants | R11, R113, R114, R115, R116, R12, R123, R124, R125, R13, R134a, R14, R141b, R142b, R143a, R152a, R170, R21, R218, R22, R23, R290, R32, R401a, R401b, R401c, R402a, R402b, R403a, R403b, R404a, R407a, R407b, R407c, R407d, R407e, R408a, R409a, R409b, R41, R410a, R410b, R411a, R411b, R412a, R413a, R414a, R414b, R415a, R415b, R416a, R417a, R418a, A, R420a, R421a, R421b, R422a, R422b, R422c, R422d, R423a, R424a, R425a, R426a, R427a, R428a, R50, R500, R501, R502, R503, R504, R507a, R508a, R508b, R509a, R600, R600a, R717, , R744< /span> |
| Working Conditions |
Working temperatures: -20 +60°C< / span> Humidity: 10 - 90% H.R. |
| Dimensions and weight | 130x90x40 mm. 250gr. (without batteries) |
| Batteries | 1 x 9v duration 30 continuous hours without backlight |
Contents
Digital pressure gauge
Instructions in Italian
Battery not included
< p>Product code: WK-688L
