WALL-HUNG SANITARY INSTALLATION KIT
INCLUDES:
1 OTER WC BRACKET
1 EUROPA DUO STIR BLITZ BUILT-IN WC CISTERN1 DOUBLE-BUTTON WHITE PLATE
CISTERN SPECIFICATIONS:
- Brand: STIR BLITZ
- Model: EUROPA DUO
- Double flush cistern
- Possibility to flush 3-6 Lt - or 6-9 Lt
- Polyethylene shell covered with an anti-condensation system
- Complete with D.50/40mm exhaust pipe

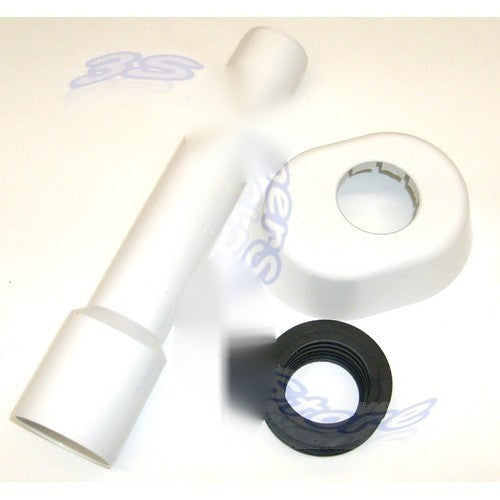

- Complete with clamping sleeve and rosette for external toilet connection
- COMPLETE WITH DOUBLE BUTTON WHITE PLATE
-
BRACKET SPECIFICATIONS:
• Bracket for fixing sanitary ware only, whether WC or BIDET.
• Compliant with standard: UNI EN 997:2004 - Installed in the wall, it is tested for a load of 400 kg.
• Sanitaryware interaxial distance: 160 - 180 - 200 - 230 [mm].
< p align="LEFT" style="font-size: 12px; margin: 0.5em 0px 0cm; padding: 0px; line-height: 15px;">• Material: high-strength Sendzimir hot-dip galvanized structural sheet metal, 20/10 thick. < p align="LEFT" style="font-size: 12px; margin: 0.5em 0px 0cm; padding: 0px; line-height: 15px;">• The assembly between the uprights and the crossbars is carried out through a PLUG/HOLE coupling, blocked by three-lobe self-tapping screws, which guarantees the rigidity of the structure and the maintenance of the set distance.< /p >• Possibility to adjust the height of the sanitaryware fixings during the installation of the pipes.
• The upper crossbar allows the installation of the wastewater drainage pipe from the cistern, without any interference, even when insulated.
• Assembles using a PH3 Phillips screwdriver and a 19 mm wrench.
KIT Product Code: 9600241-SAS0001x2
