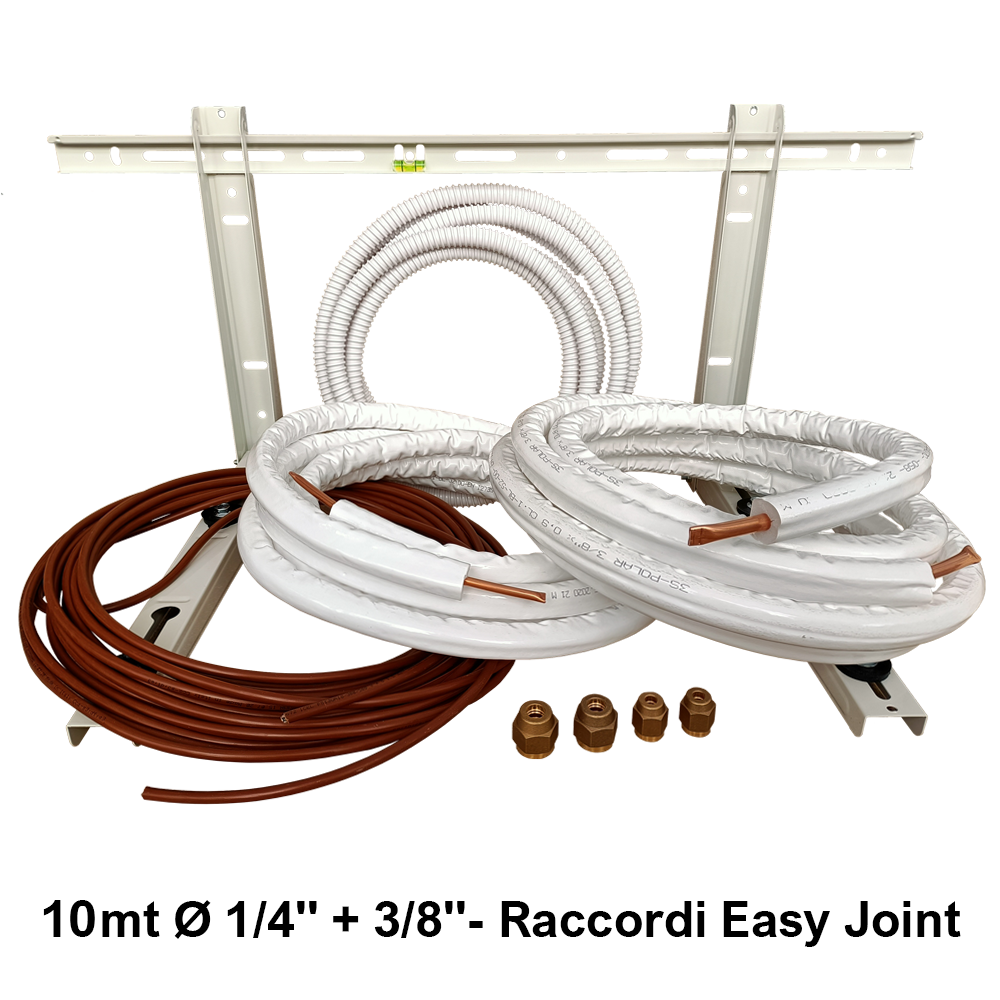

INSTALLATION KIT FOR MONO-SPLIT AIR CONDITIONING
- 10 METERS OF 1/4 INSULATED COPPER PIPES
- 10 METERS OF 3/8 INSULATED COPPER PIPES

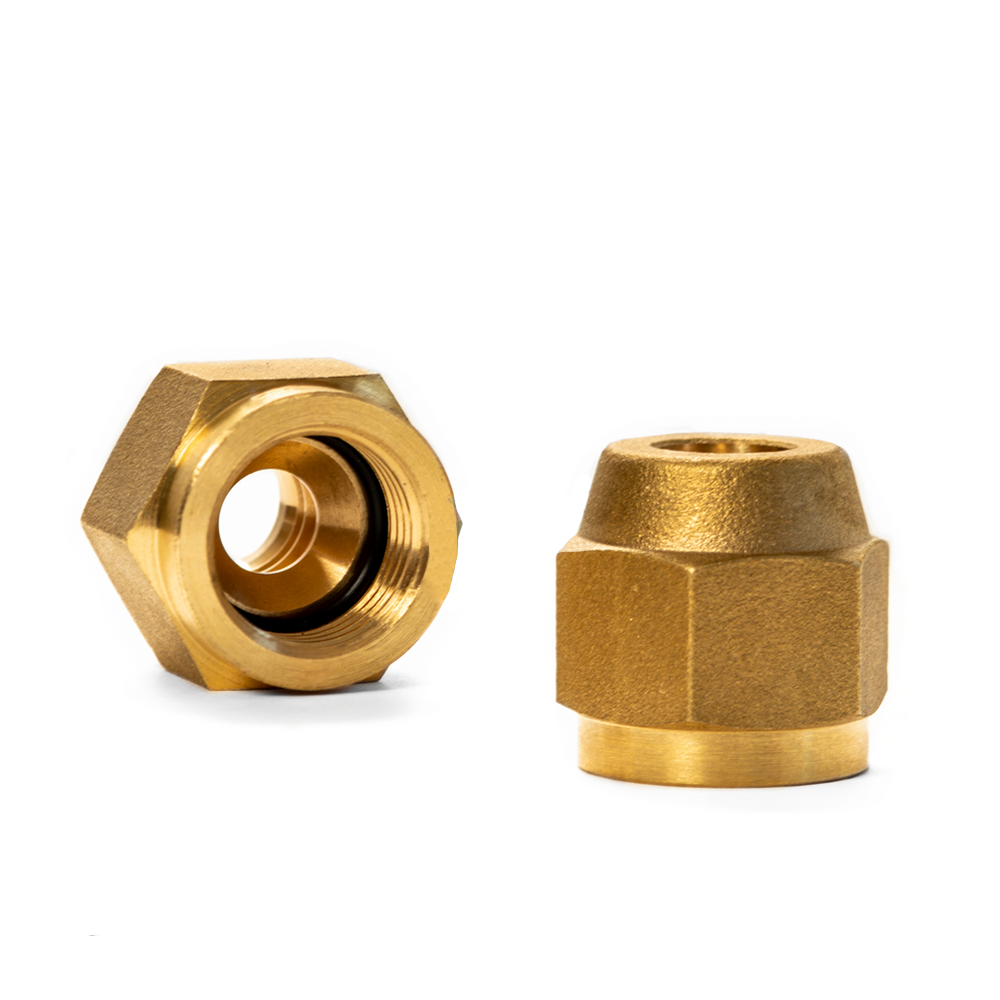

- 2 x 1/4 FITTINGS
- 2 x 3/8 FITTINGS
- 10 METERS OF CONDENSATE DRAINAGE PIPE

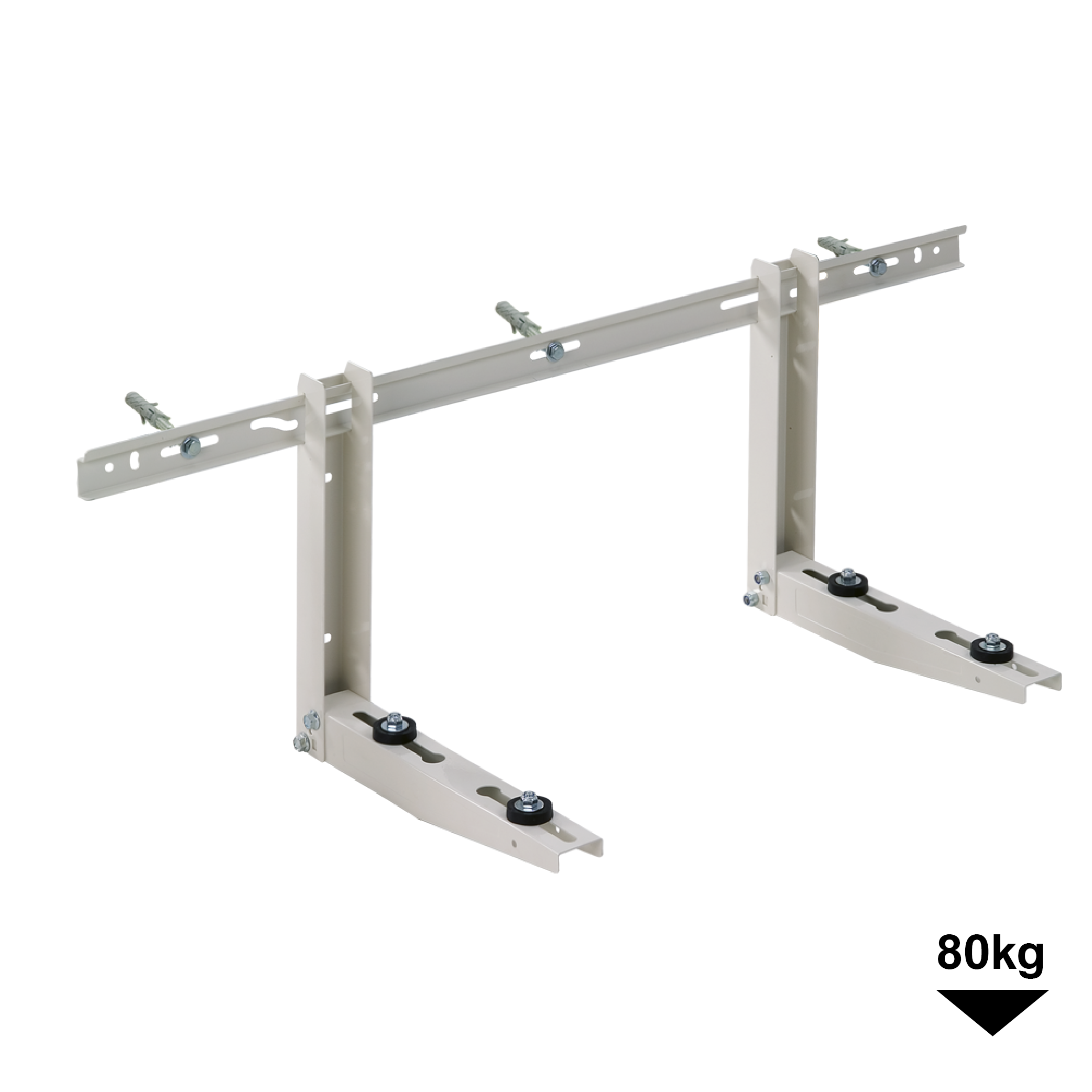

- 1 x EXTERNAL UNIT WALL MOUNT
- 10 METERS OF PENTAPOLAR REFRIGERATION ELECTRICAL CABLE
COPPER PIPE CHARACTERISTICS:
- Annealed ACR (R220), mechanical characteristics, dimensions, tolerances, and eccentricity conformity to UNI EN 12735-1 standard.
- Usable with refrigerants R407C and R410A, internal cleaning and dehumidification with inert gas with maximum total residual of 0.034 gr/m² and sealed ends according to ASTM B280.
- Coating:
- Insulating sheath of physically cross-linked closed-cell polyethylene foam with the following technical values:
- Thermal conductivity at 40°C λ ≤ 0.040 W/m*K
- Water vapor diffusion resistance factor (condensation) μ ≥ 10,000
- Fire reaction class 1
- Operating temperature -80° / +120°C
- Does not contain CFCs
- External covering in extruded white polyethylene (LDPE), additives with flame retardant to ensure a high degree of condensation, excellent resistance to abrasion and tearing.
Reference Code: KI.10.1/4-3/8
