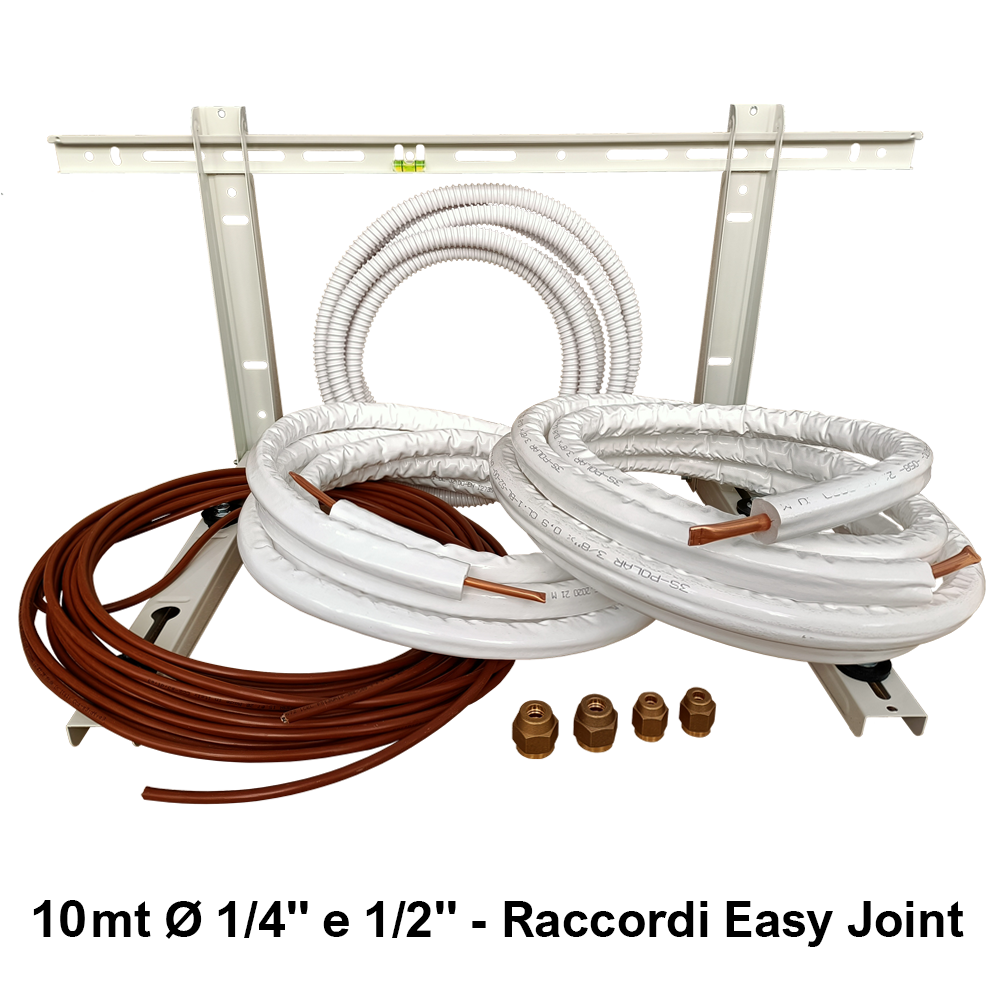

INSTALLATION KIT FOR MONO-SPLIT AIR CONDITIONING SYSTEM
- 10 METERS OF INSULATED COPPER PIPE 1/4
- 10 METERS OF INSULATED COPPER PIPE 1/2

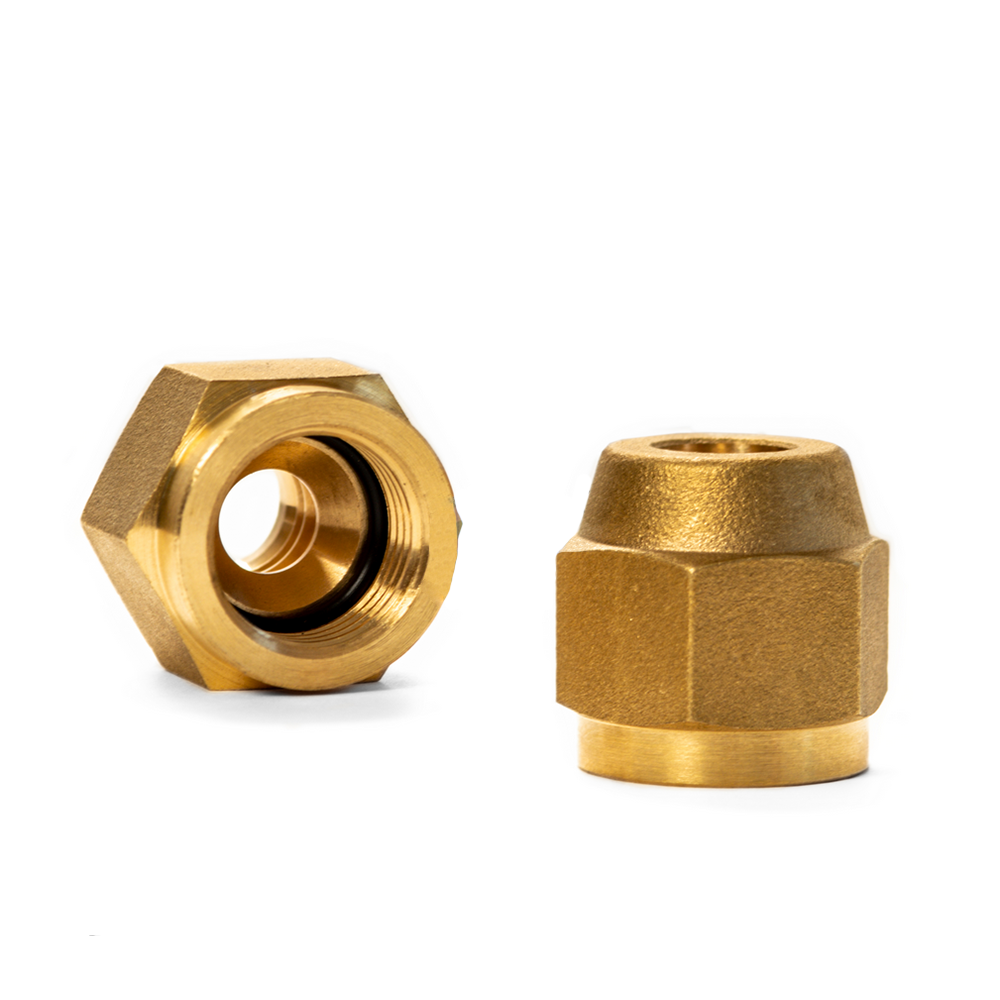

- 2 x 1/4 FITTINGS
- 2 x 1/2 FITTINGS
- 10 METERS OF CONDENSATE DRAIN TUBE

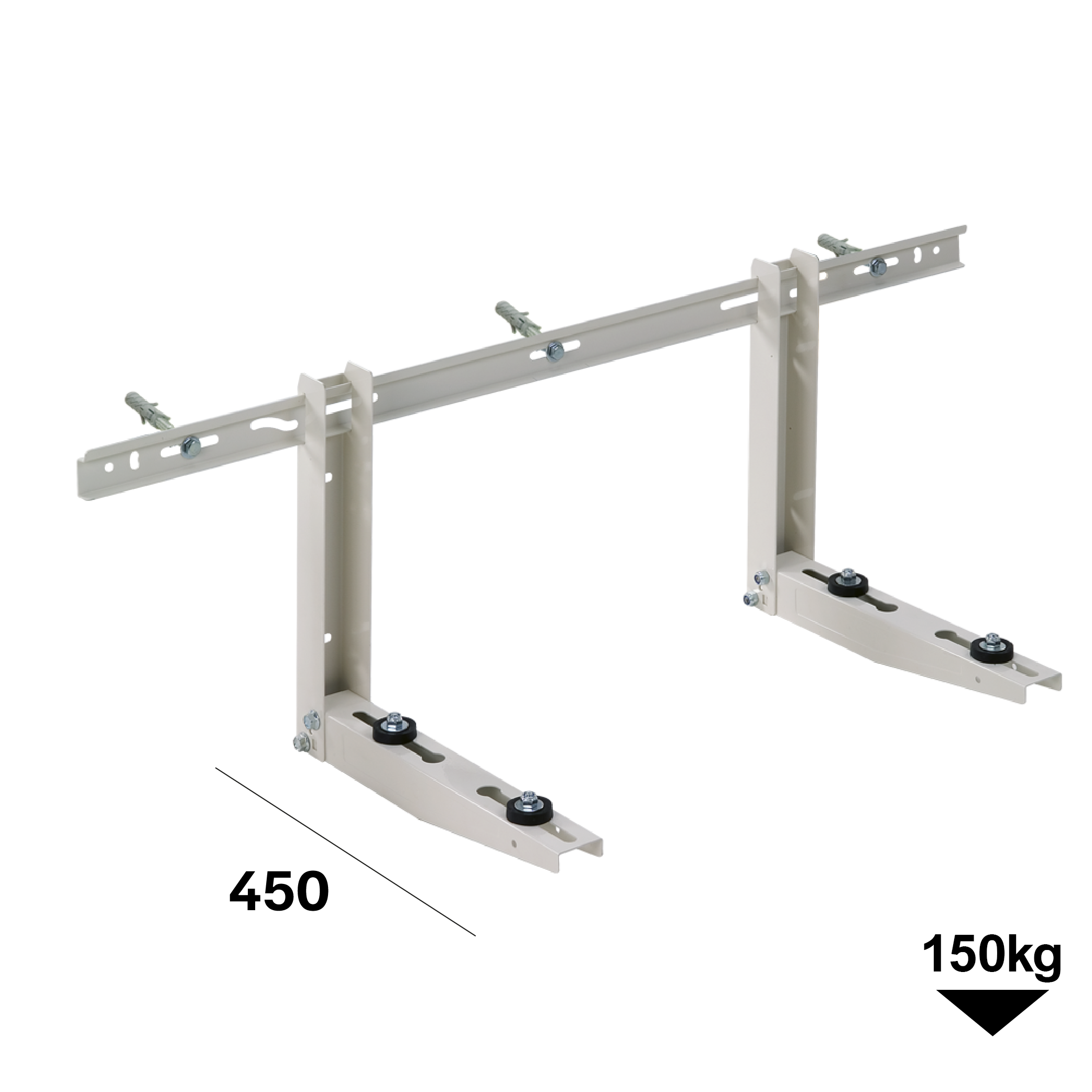

- 1 x EXTERNAL UNIT WALL MOUNTING BRACKET
- 10 METERS OF PENTA-POLAR REFRIGERATION ELECTRICAL CABLE
COPPER TUBE CHARACTERISTICS:
Annealed ACR (R220), mechanical properties, dimensions, tolerances, and eccentricity conformity to UNI EN 12735-1 standard.
Usable with R407C and R410A refrigerants, internal cleaning and dehumidification with inert gas with maximum total residue 0.034 gr/m² and sealed ends according to ASTM B280.
Coating:
Insulating sheath of physically cross-linked closed-cell polyethylene foam with the following technical values:
- Thermal conductivity at 40°C λ ≤ 0.040 W/m*K
- Water vapor diffusion resistance factor (condensation) μ ≥ 10,000
- Fire reaction class 1
- Operating temperature -80° / +120°C
- Does not contain CFC
External covering in extruded polyethylene (LDPE) in white, with flame retardant additives to ensure a high degree of condensation, excellent abrasion and tear resistance.
