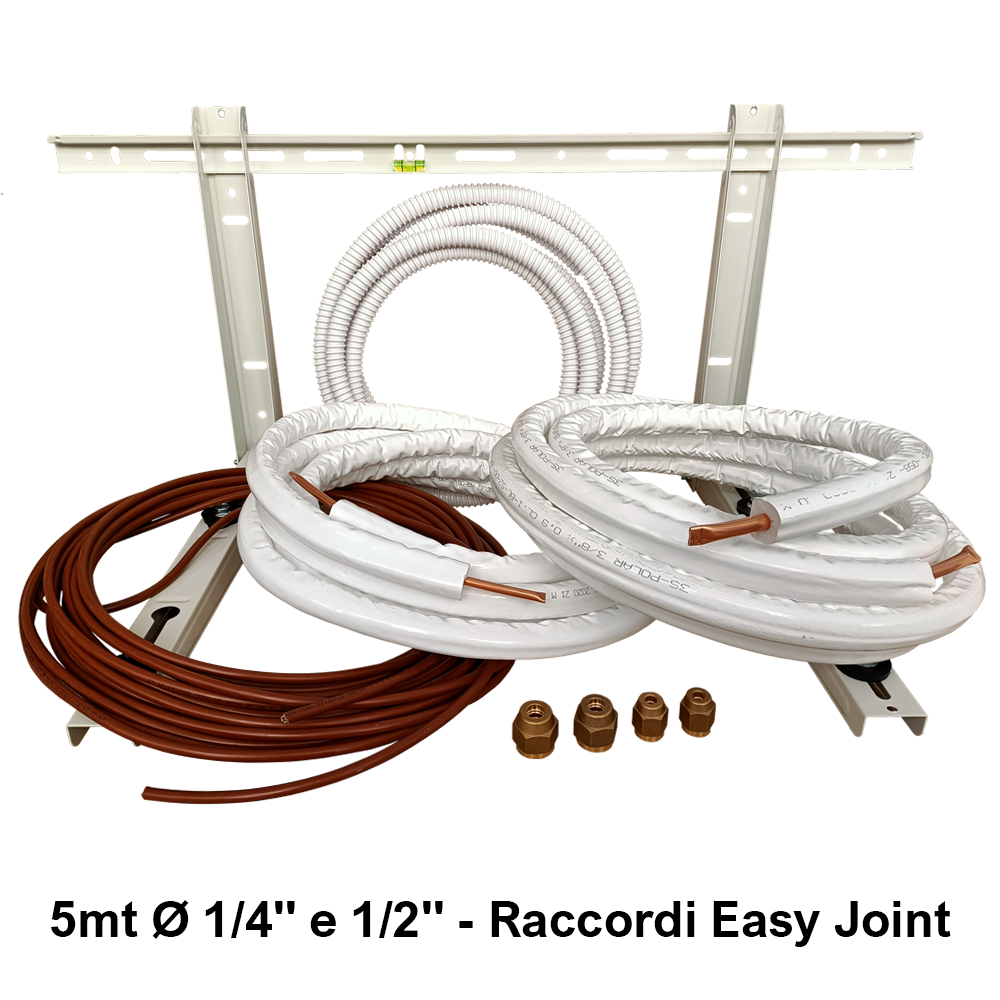

INSTALLATION KIT FOR MONO-SPLIT AIR CONDITIONING
- 5 METERS OF 1/4 INSULATED COPPER PIPES
- 5 METERS OF 1/2 INSULATED COPPER PIPES

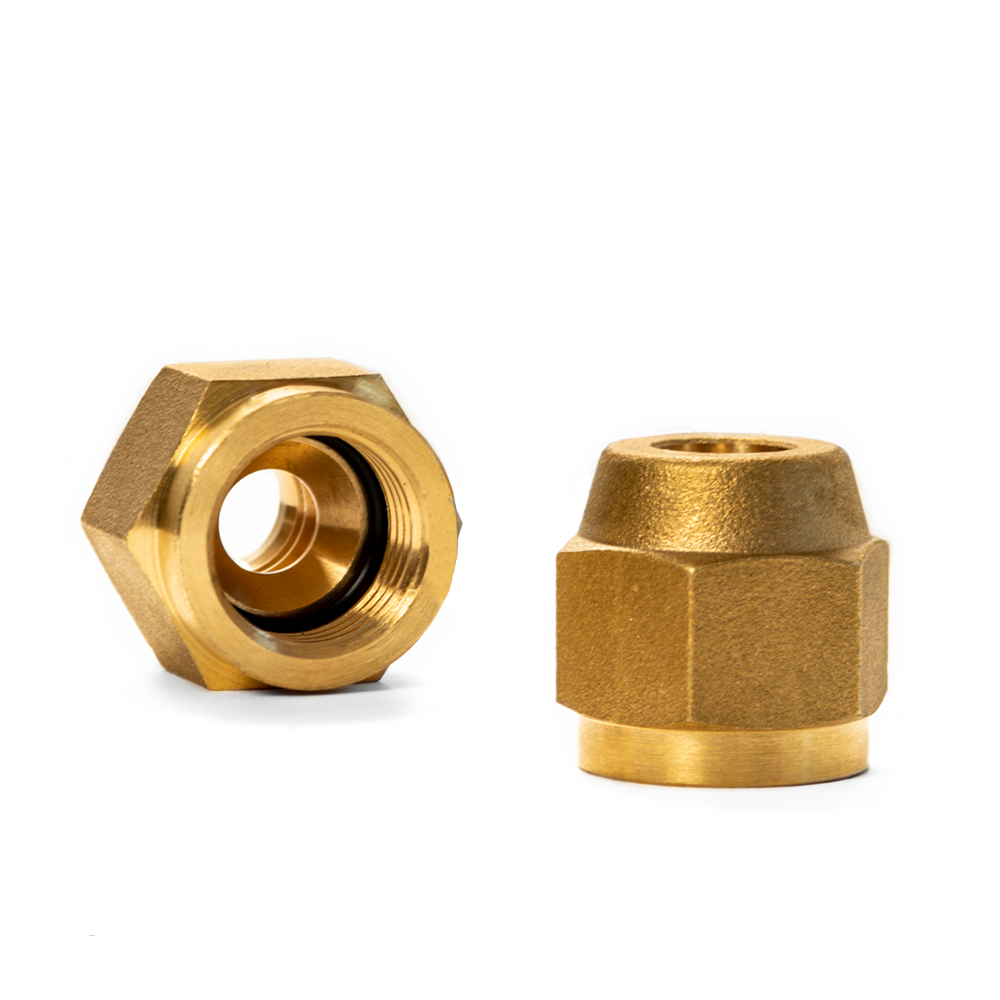

- 2 x 1/4 FITTINGS
- 2 x 1/2 FITTINGS
- 5 METERS OF CONDENSATE DRAIN TUBE

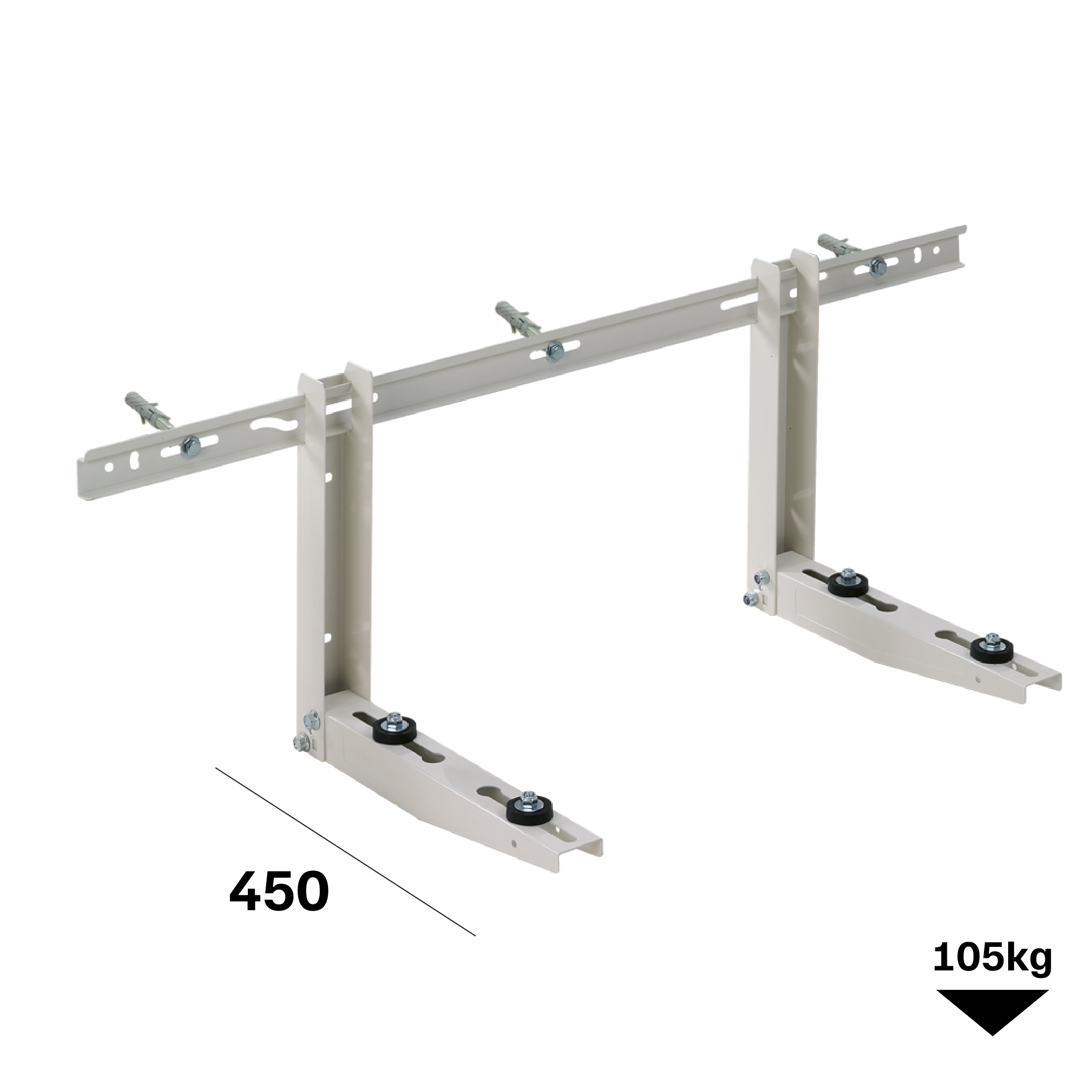

- 1 x EXTERNAL UNIT WALL MOUNT
- 5 METERS OF PENTAPOLAR REFRIGERATION ELECTRICAL CABLE
COPPER TUBE CHARACTERISTICS: Annealed ACR (R220), mechanical characteristics, dimensions, tolerances and eccentricity conformity to UNI EN 12735-1 standard.
Usable with R407C and R410A refrigerants, internal cleaning and dehumidification with inert gas with maximum total residue of 0.034 gr/m² and sealed ends according to ASTM B280.
Coating:
Insulating sheath of physically cross-linked polyethylene foam with closed cells and the following technical values:
- Thermal conductivity at 40°C λ ≤ 0.040 W/m*K
- Water vapor diffusion resistance factor (condensation) μ ≥ 10,000
- Fire reaction class 1
- Operating temperature -80° / +120°C
- Does not contain CFCs
External covering in extruded polyethylene (LDPE) of white color, additives with flame retardant to ensure a high degree of condensation, excellent resistance to abrasion and tearing.
