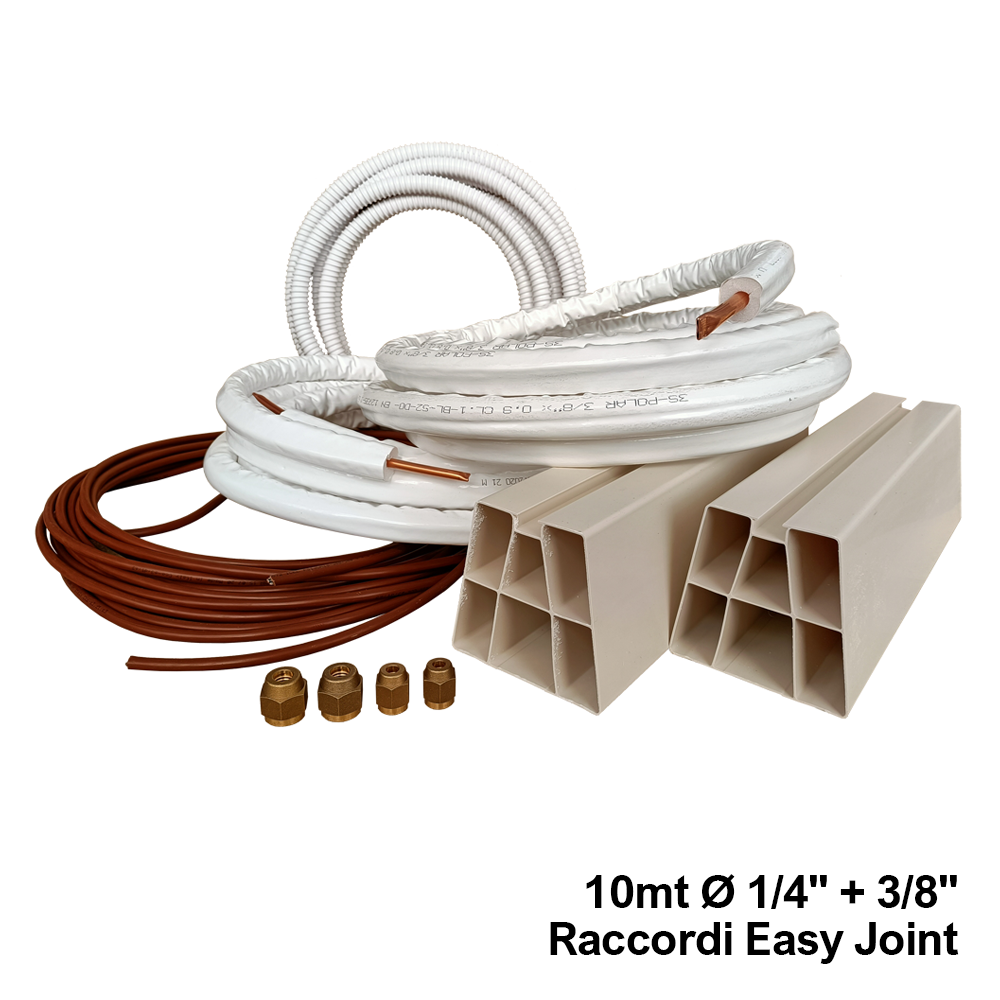

INSTALLATION KIT FOR MONO-SPLIT AIR CONDITIONING
- 10 METERS OF INSULATED COPPER PIPE 1/4
- 10 METERS OF INSULATED COPPER PIPE 3/8

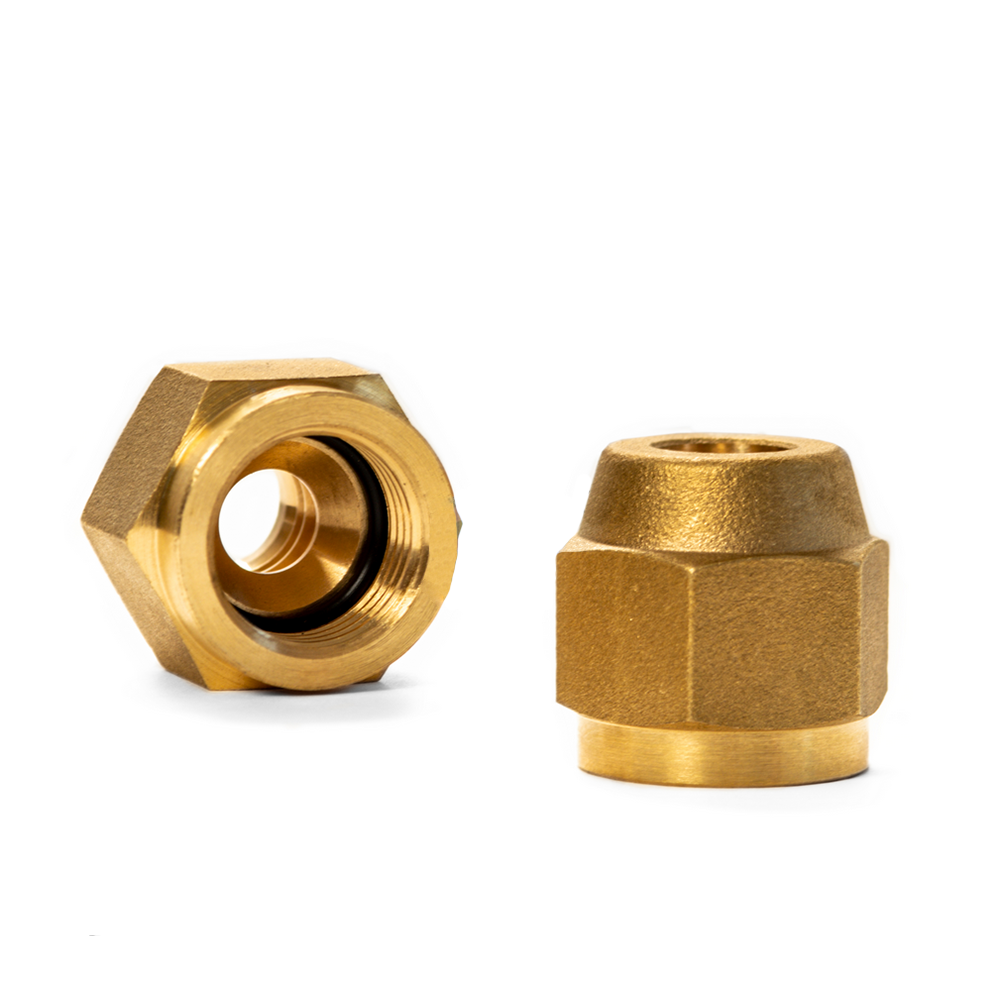

- 2 x 1/4 FITTINGS
- 2 x 3/8 FITTINGS
- 10 METERS OF CONDENSATE DRAIN TUBE

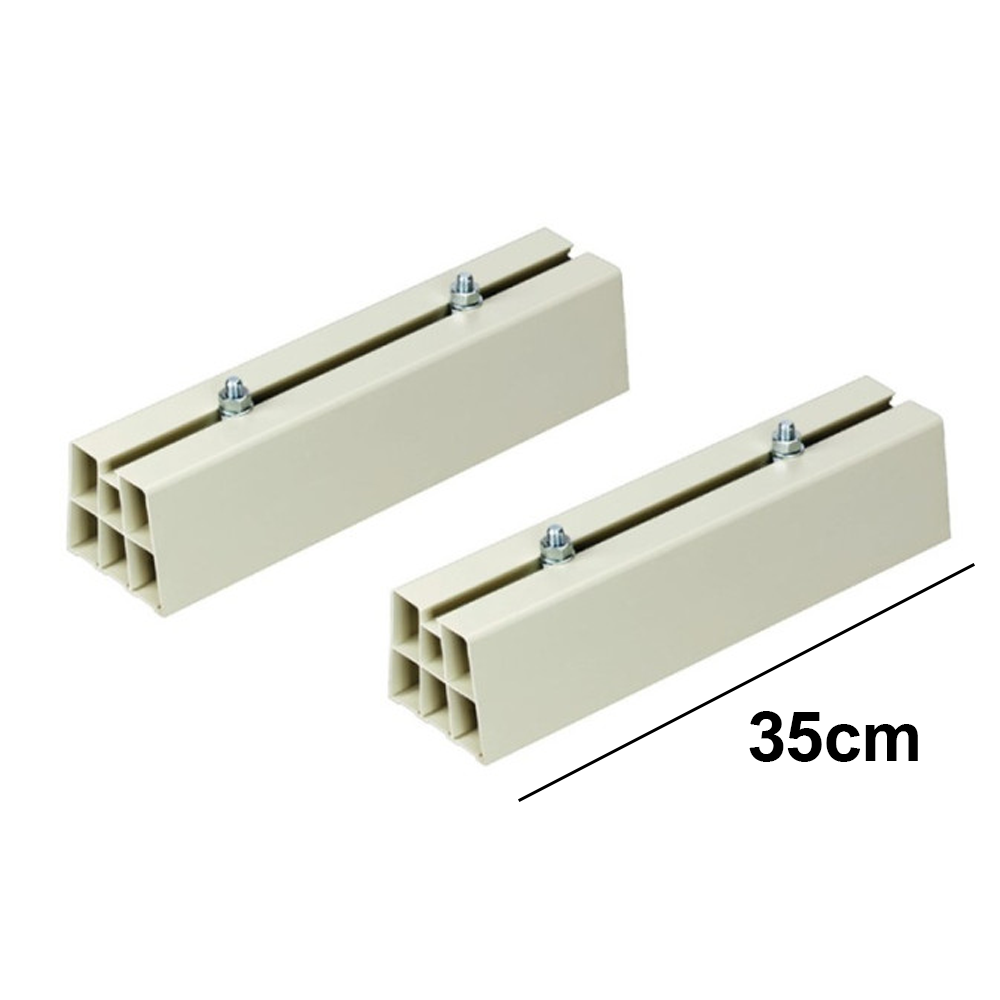

- 1 x 45 CM WHITE PVC BASE
- 10 METERS OF PENTAPOLAR REFRIGERATION ELECTRICAL CABLE
CHARACTERISTICS OF THE COPPER TUBE:
Annealed ACR (R220), mechanical characteristics, dimensions, tolerances and eccentricity conformity to UNI EN 12735-1 standard.
Usable with refrigerants R407C and R410A, internal cleaning and dehumidification with inert gas with maximum total residual of 0.034 gr/m² and sealed ends according to ASTM B280.
Coating:
Closed-cell physically cross-linked polyethylene foam insulating sheath with the following technical values:
- Thermal conductivity at 40°C λ ≤ 0.040 W/m*K
- Water vapor diffusion resistance factor (condensation) μ ≥ 10,000
- Fire reaction class 1
- Operating temperature -80° / +120°C
- Does not contain CFCs
External cover in extruded polyethylene (LDPE) in white, additives with flame retardant to ensure a high degree of condensation, excellent resistance to abrasion and tearing.
