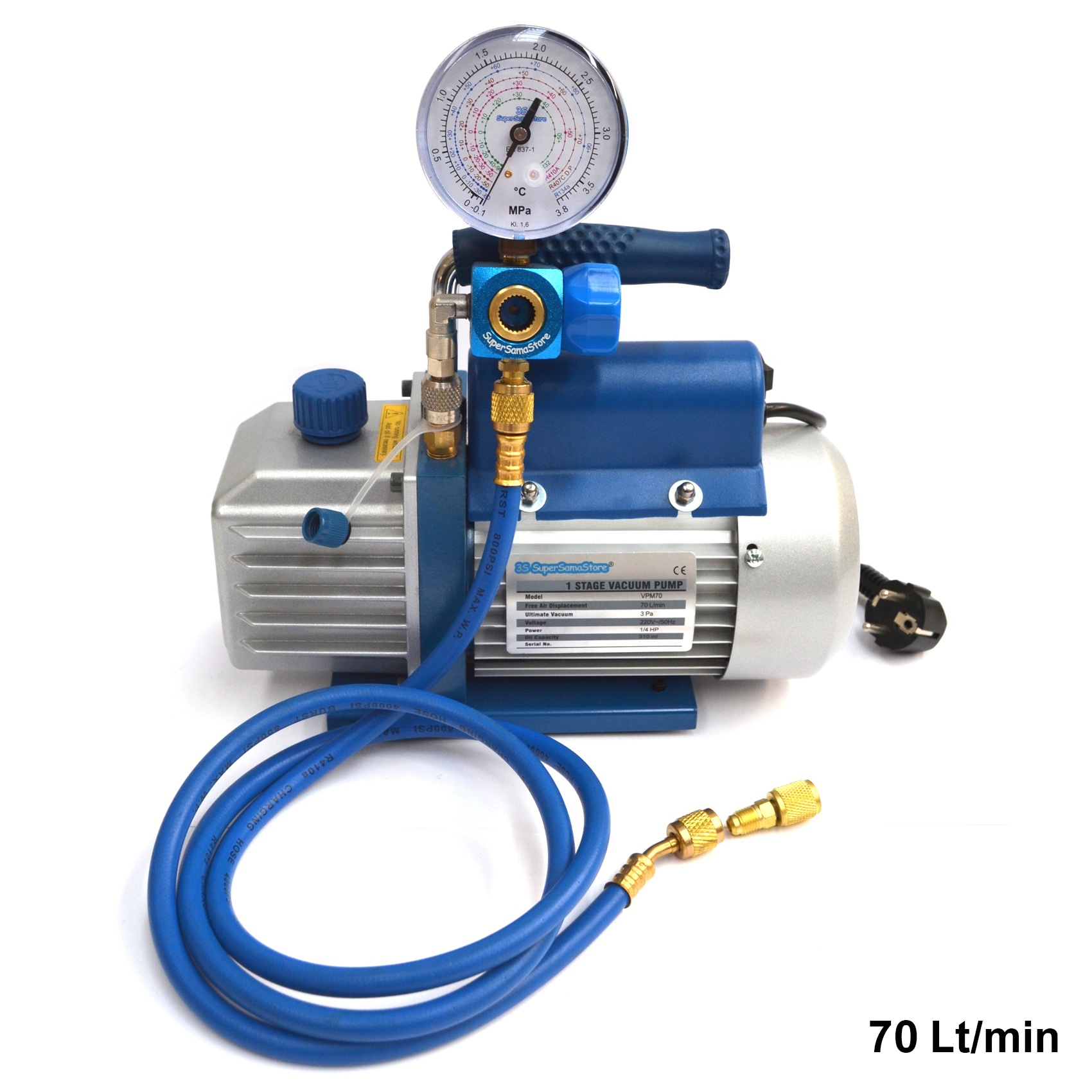

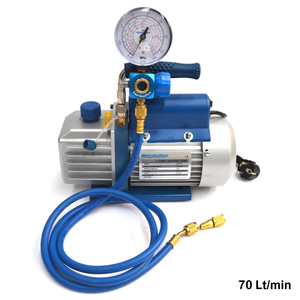

VACUUM AND CHARGE KIT
CONDITIONING - PUMP 70 LT/MIN
air conditioning maintenance and installation
< /span>

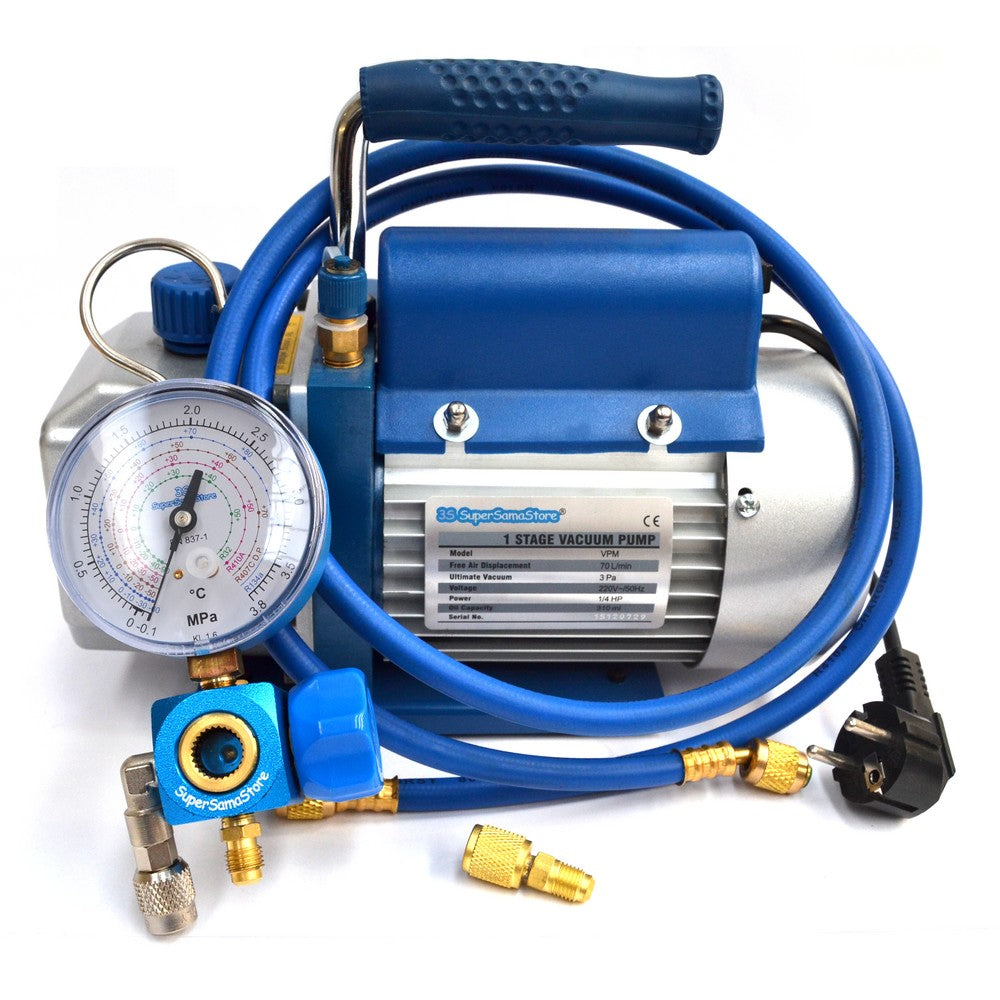

INCLUDING:
- SINGLE STAGE VACUUM PUMP 70 Lt - with OIL

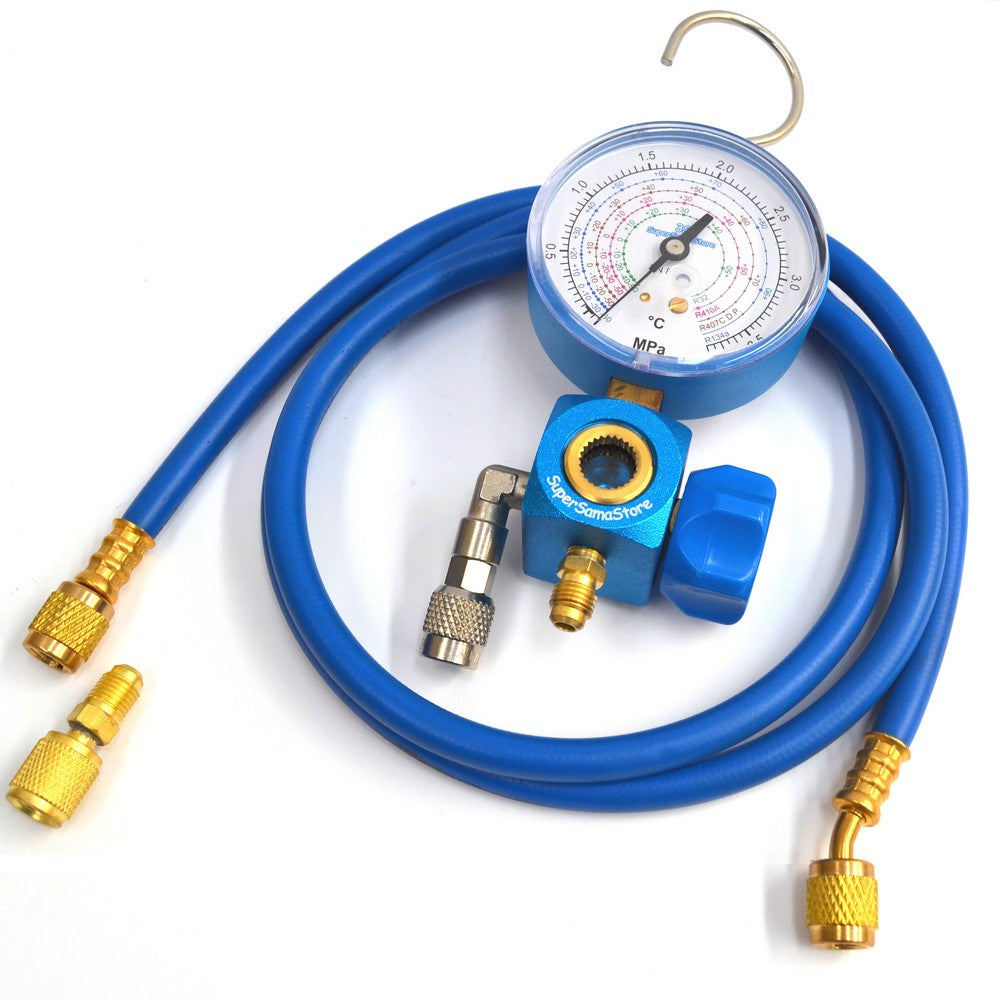

- PRESSURE GAUGE - VACUUM GAUGE with SCALE for GAS R410a - R407c - R32 - R134A
- HOSE 150 cm 1/4 sae with PIN PRESS
- SAE REDUCTION M 1/4 x 5/16 F with swivel

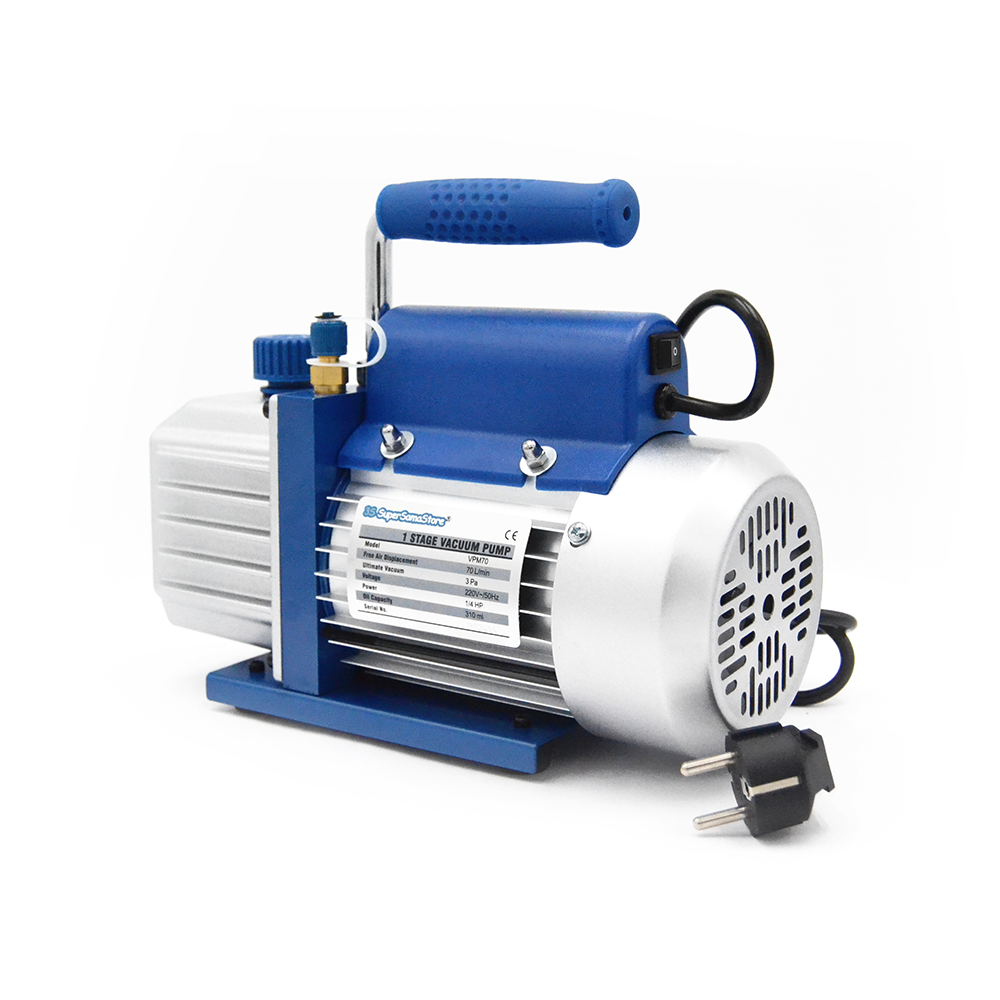

VACUUM PUMP CHARACTERISTICS:
- INSTRUCTIONS IN ITALIAN
- SINGLE STAGE 70 LITERS PER MINUTE MODEL
- EQUIPPED WITH ON-OFF SWITCH
- OIL LEVEL INDICATOR
- 1 PACK OF OIL INCLUDED< /li>
- POWER CORD WITH SCHUKO PLUG
- ERGONOMIC CARRYING HANDLE
TECHNICAL DATA:
- SINGLE STAGE MODEL
- SUCTION CAPACITY IN LITERS PER MINUTE 70 - 2.5 CFM
- MOTOR POWER 1/4 HP
- POWER SUPPLY 220 V - 50 Hz
- ULTIMATE VACUUM: 5 Pa
- OIL IN PUMP 310 ML.
- DIMENSIONS 310X130X240 (mm)
- WEIGHT 7.20 KG
- CONNECTION 1/4' SAE
Kit suitable for vacuum and charging operations on outdoor units for air conditioners operating with R410a - R32 - R407c - R134A gas
The set includes everything necessary to create vacuum in the system and check the tightness of the vacuum, thanks to the pressure gauge.< /p>

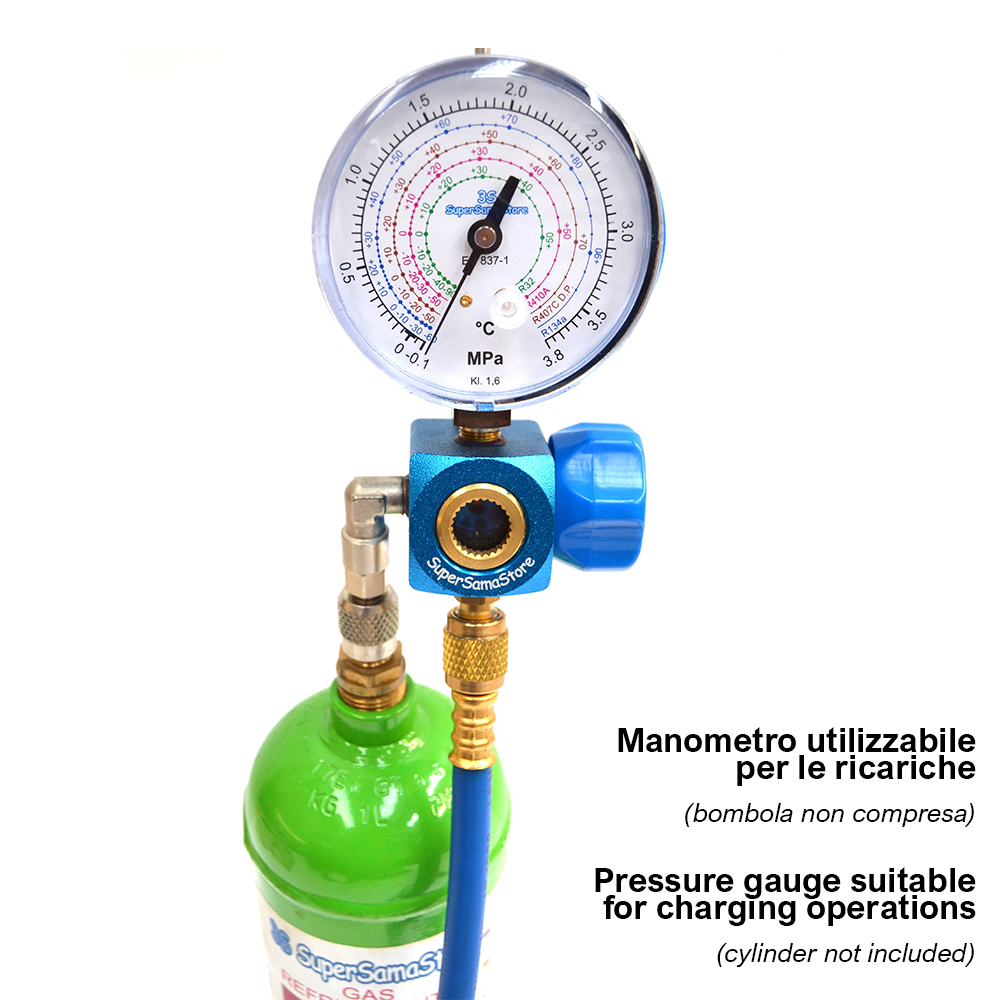

The pressure gauge and the hose connected to a gas cylinder (not included) will also allow you to fill the air conditioner by testing the real pressure of the air conditioner;plant
ATTENTION:
- for connection to R410A gas cylinders, it is necessary to purchase a 1/4' x 5/16 sae reduction
- for connection to R32 gas cylinders it is necessary to purchase the faucet adapter
Product code: KT.VC70
