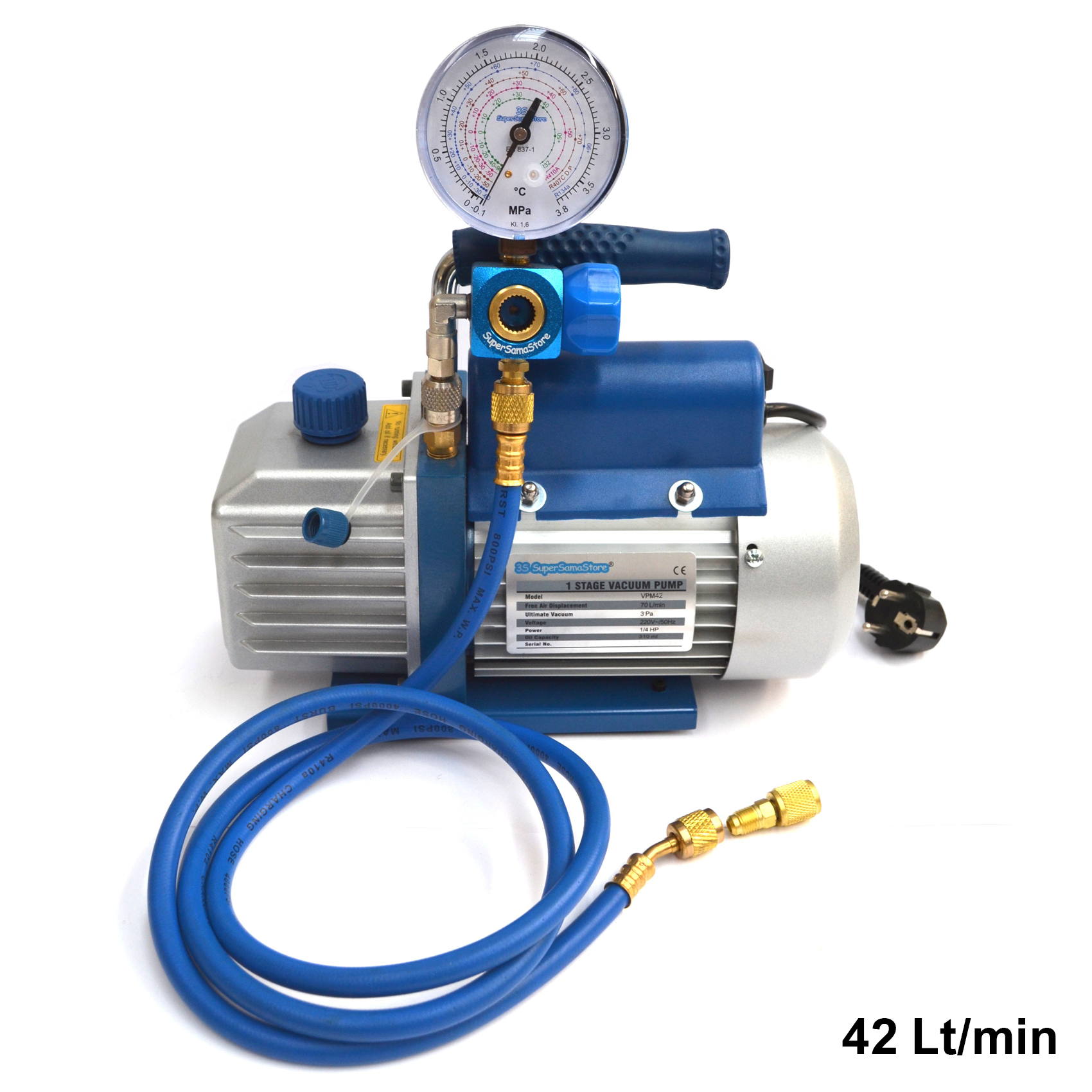

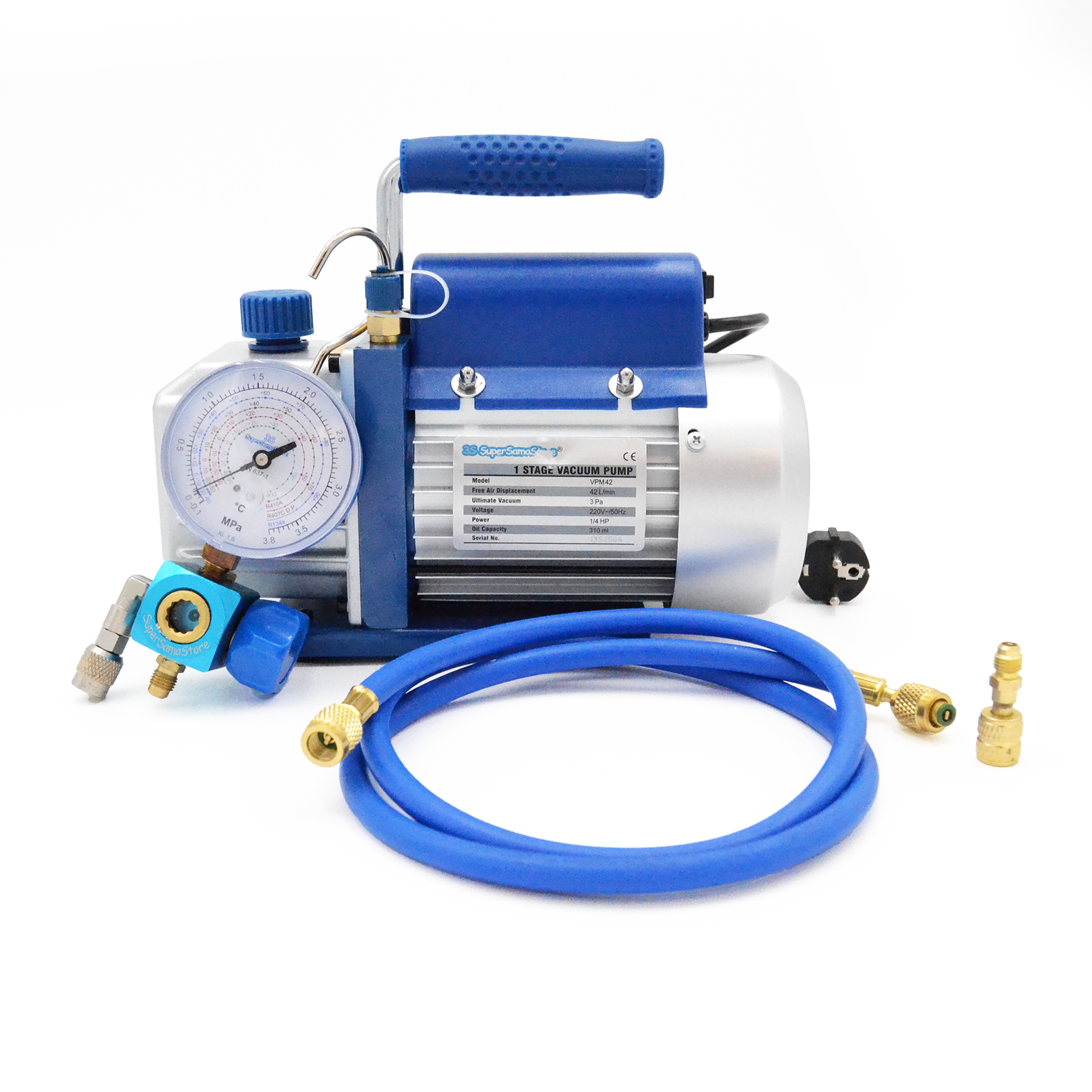

VACUUM AND CHARGE KIT
CONDITIONING - 42 LT/MIN PUMP
air conditioner maintenance and installation
INCLUDING:
- 42 Lt SINGLE STAGE VACUUM PUMP - with OIL

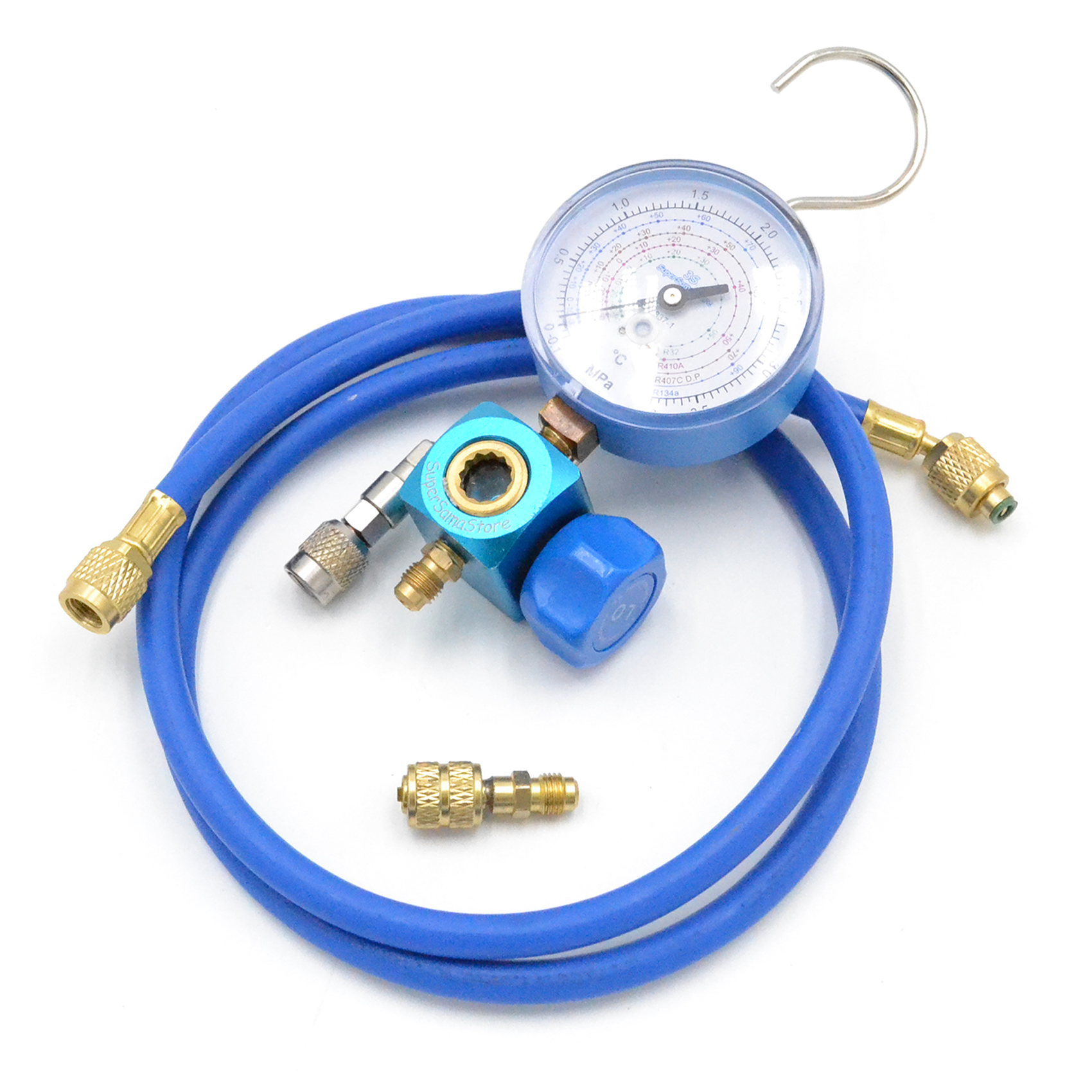

- PRESSURE GAUGE - VACUUM GAUGE with SCALES for R410a - R407c - R22 GAS
- 150 cm 1/4 sae HOSE with PIN PRESS
- 1/4 sae M x 5/16 F REDUCER with swivel

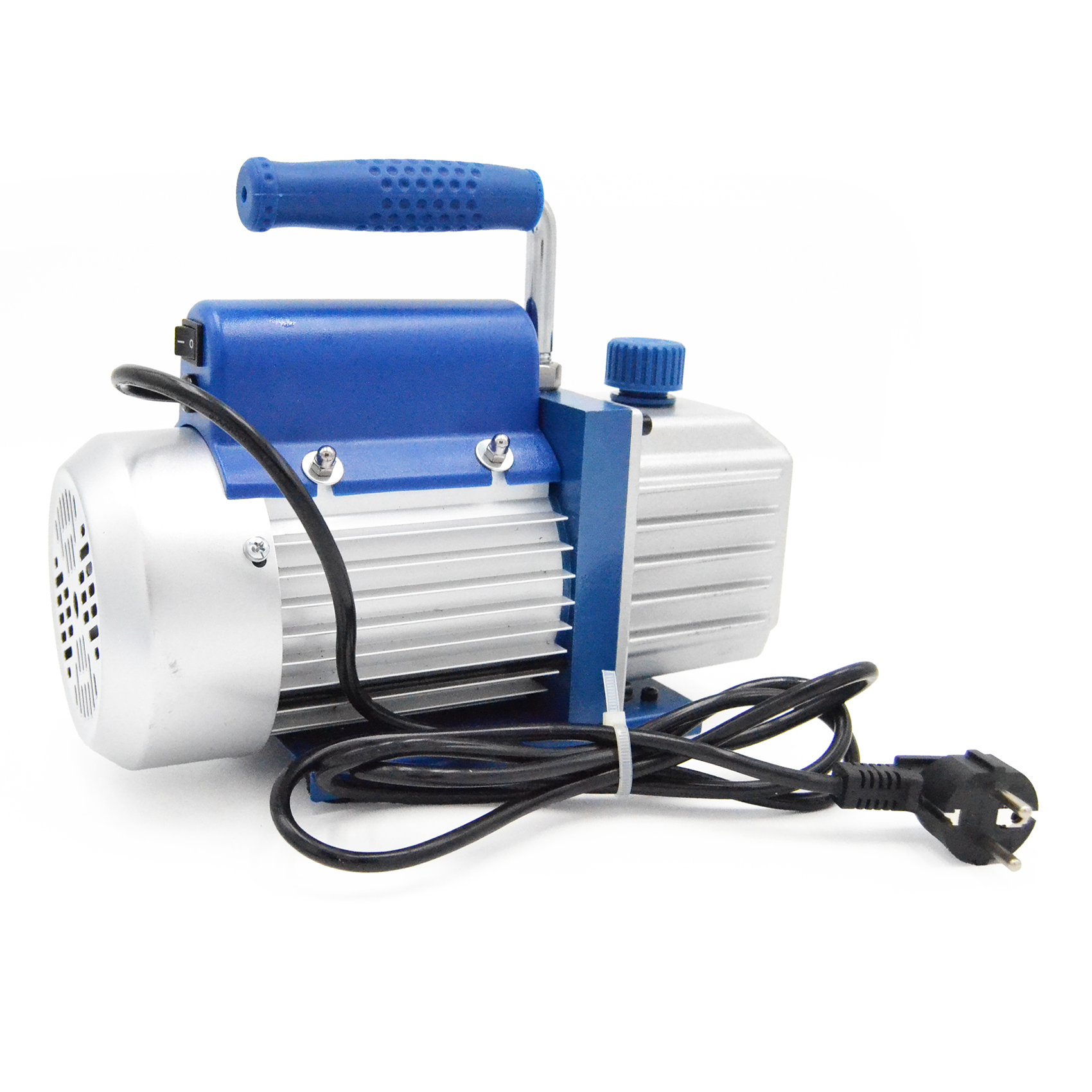

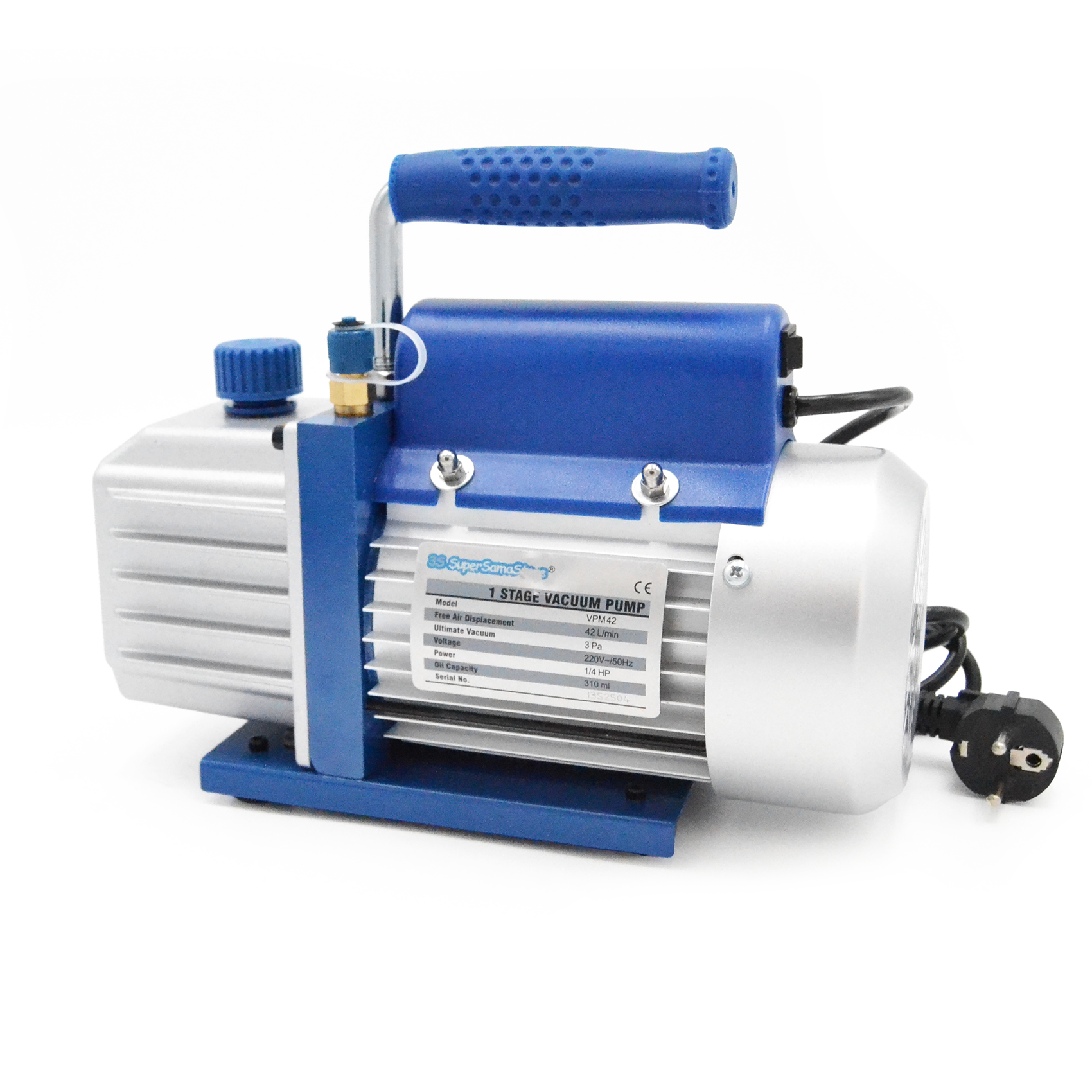

VACUUM PUMP FEATURES:
- < li>INSTRUCTIONS IN ITALIAN
- 42 LITERS PER MINUTE SINGLE STAGE MODEL
- EQUIPPED WITH ON-OFF SWITCH
- OIL LEVEL INDICATOR
- 1 BOTTLE OF OIL INCLUDED < li>POWER CABLE WITH SCHUKO PLUG
- ERGONOMIC CARRYING HANDLE
TECHNICAL DATA:
- SINGLE STAGE MODEL
- SUCTION CAPACITY IN LITERS PER MINUTE 42
- MOTOR POWER 1/4 HP
- POWER SUPPLY 220 V - 50 Hz
- FINAL VACUUM 3 Pa - 0.03 mbar
- OIL IN PUMP 310 ML.
- DIMENSIONS 290X110X240 (mm)
- WEIGHT 6.20 KG
- 1/4' SAE CONNECTION
Kit suitable for external vacuum and charging operations unit for air conditioners running on R410a - R32 - R407c - R134A gas
The kit includes everything needed to create a vacuum in the system and check for vacuum leaks, thanks to the pressure-vacuum gauge.
The pressure gauge and the hose connected to a gas cylinder (not included), will also allow you to fill the air conditioner by testing the actual pressure of the system
ATTENTION:
- for connection to R410A gas cylinders, it is necessary to purchase an additional 1/4' x 5/16 sae reducer
- for connection to R32 gas cylinders it is necessary to purchase the adapter tap
< span>< span style="font-size: 12pt;"> Product Code: KT.VC42
