OPEN CHAMBER INSTANTANEOUS GAS WATER HEATER
LOW EMISSIONS - IONIZED IGNITION LPG
Innovita instantaneous gas water heaters:
Many years of experience in the design and manufacture of instantaneous gas water heaters.
Innovita is now able to offer a complete and varied range of water heaters with low nitrogen oxide (NOx) emissions for indoor and outdoor use.
Designed to withstand harsh temperature conditions and can also be controlled from inside your home thanks to the remote control.
Innovita instantaneous gas water heaters manage the water temperature supplied thanks to the wide flame modulation that equips the range.
The simplest and consolidated "proportional" open chamber versions, to the maximum; sophisticated and powerful electronic modulation of sealed chamber versions.
Advantages:
• Low polluting emissions
• High performance
• Minimal starting water pressure
• Proportional flame modulation as standard
• Gas saver as standard to optimize consumption
• Possibility to select water flow for better comfort
• Compact size
• Simple installation and maintenance
• Possibility of choice between methane gas and LPG
• Ideal for residential and commercial installation
Features:
• Battery powered ignition
• Fume control device
• Water overheating control device
• Ionization flame ignition and control
• Display with water temperature display
• ErP ready
• CE certification

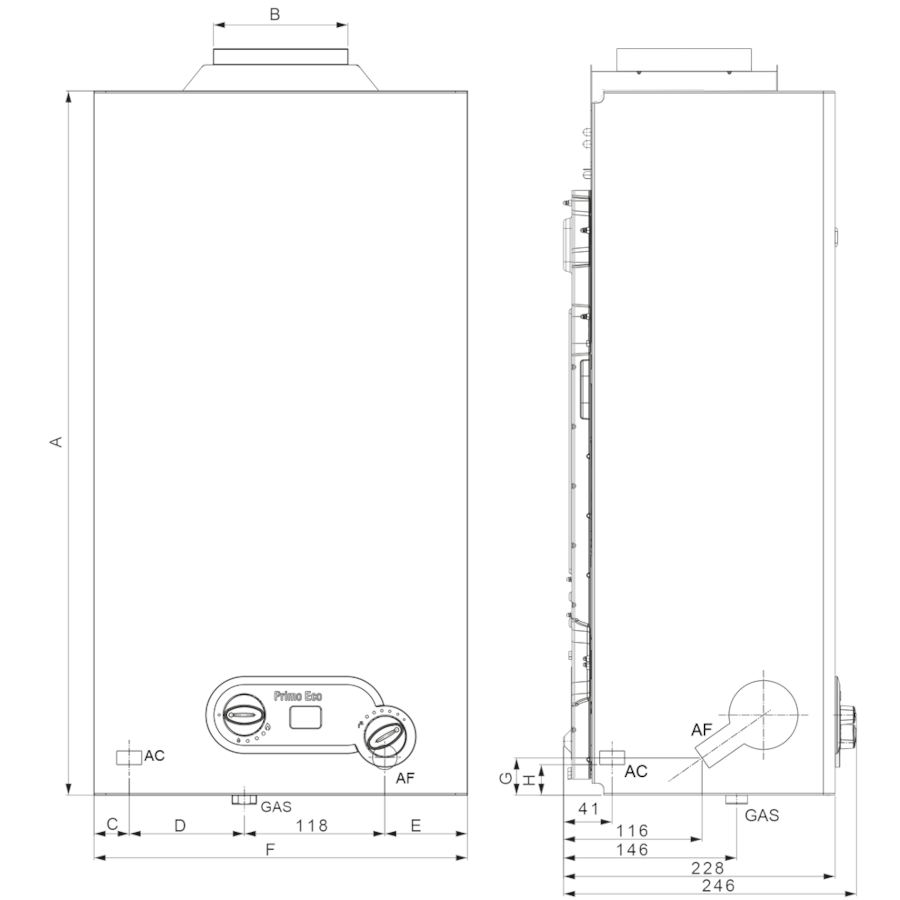

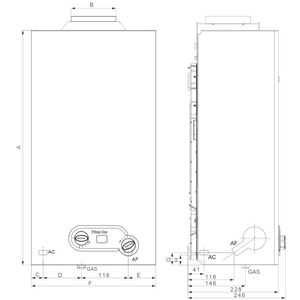

Dimensions in mm:
| Innovita 11 ic D |
Innovita 14 ic D |
|
|---|---|---|
| A | 592 | 650 |
| B ø | 110 | 130 |
| C | 29.5 | 34 |
| D | 97 | 117 |
| E | 69.5 | 94 |
| F | 314 | 363 |
| G | 31 | 51 |
| H | 26 | 45 |
| AC | 1/2 M | 1/2 M |
| GAS | 1/2 M | 1/2 M |
| AF | 1/2 M | 1/2 M |
Hot water outlet AC
Gas inlet GAS
Cold water inlet AF
ErP Directive Data:
Innovita |
Innovita |
|
|---|---|---|
| Profile load | M | L |
| Energy efficiency class | A | A |
| Water heating energy efficiency | 72% | 75% |
| Sound power level | 62 dB | 62 dB |
| Annual energy consumption | 0 kWh | 0 kWh |
| Annual consumption of fuel |
6 Gj | 12 Gj |
| Nitrogen oxide emissions G20 |
26 | 34 |
Technical data:
Data valid for the following gases: MTN (G20) - LPG (G30) - LPG (G31)
| Innovita 11 ic D | Innovita 14 ic D | |
|---|---|---|
| Nominal technical capacity (kW) | 21.7 | 27.2 |
| Nominal useful power (kW) | 19.3 | 24.3 |
| Minimum heat input (MTN - LPG) (kW) | 9.8 - 10.8 | 10.8 - 13.9 |
| Minimum useful power (MTN - LPG) (kW) |
8.7 - 9.6 | 9.7 - 12.3 |
| Starting water flow (l/min) |
2.5 | 2.5 |
| Max. water inlet pressure (bar) |
10.0 | 10.0 |
| Min. water inlet pressure (bar) |
0.2 | 0.2 |
| Flue gas duct diameter (mm) |
110 | 130 |
Product code: 30001041
