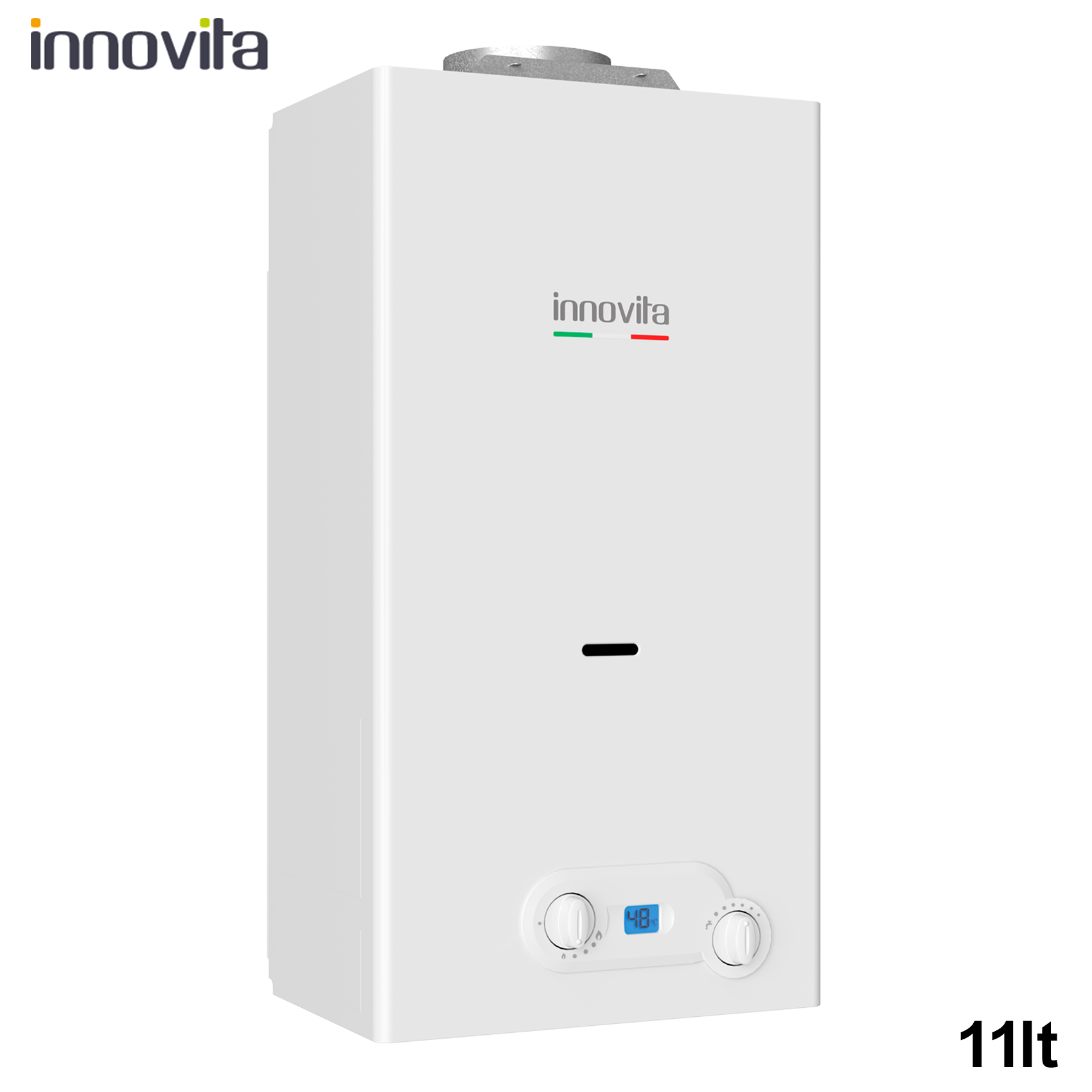

OPEN CHAMBER GAS INSTANTANEOUS WATER HEATER
LOW EMISSION - IONIZED IGNITION MTN
Innovita instantaneous gas water heaters:
Many years of experience in the design and manufacture of instantaneous gas water heaters.
Innovita is now able to offer a complete and varied range of low NOx emission water heaters for indoor and outdoor use.
Designed to withstand harsh temperature conditions and can also be controlled from inside your home using the remote control.
Innovita instantaneous gas water heaters manage the supplied water temperature thanks to the wide flame modulation that equips the range.
the simplest and consolidated "proportional" open chamber versions, to the maximum; sophisticated and efficient electronic modulation of sealed chamber versions.
Advantages:
• Low polluting emissions
• High performance
• Minimum starting water pressure
• Proportional flame modulation as standard
• Gas saver as standard to optimize consumption
• Possibility to select water flow for better comfort
• Compact size
• Easy installation and maintenance
• Possibility to choose between natural gas and LPG
• Ideal for residential and commercial installation
Features:
• Battery-powered ignition
• Fume control device
• Water overheating control device
• Ionization flame ignition and control
• Display with water temperature display
• ErP ready
• CE certification

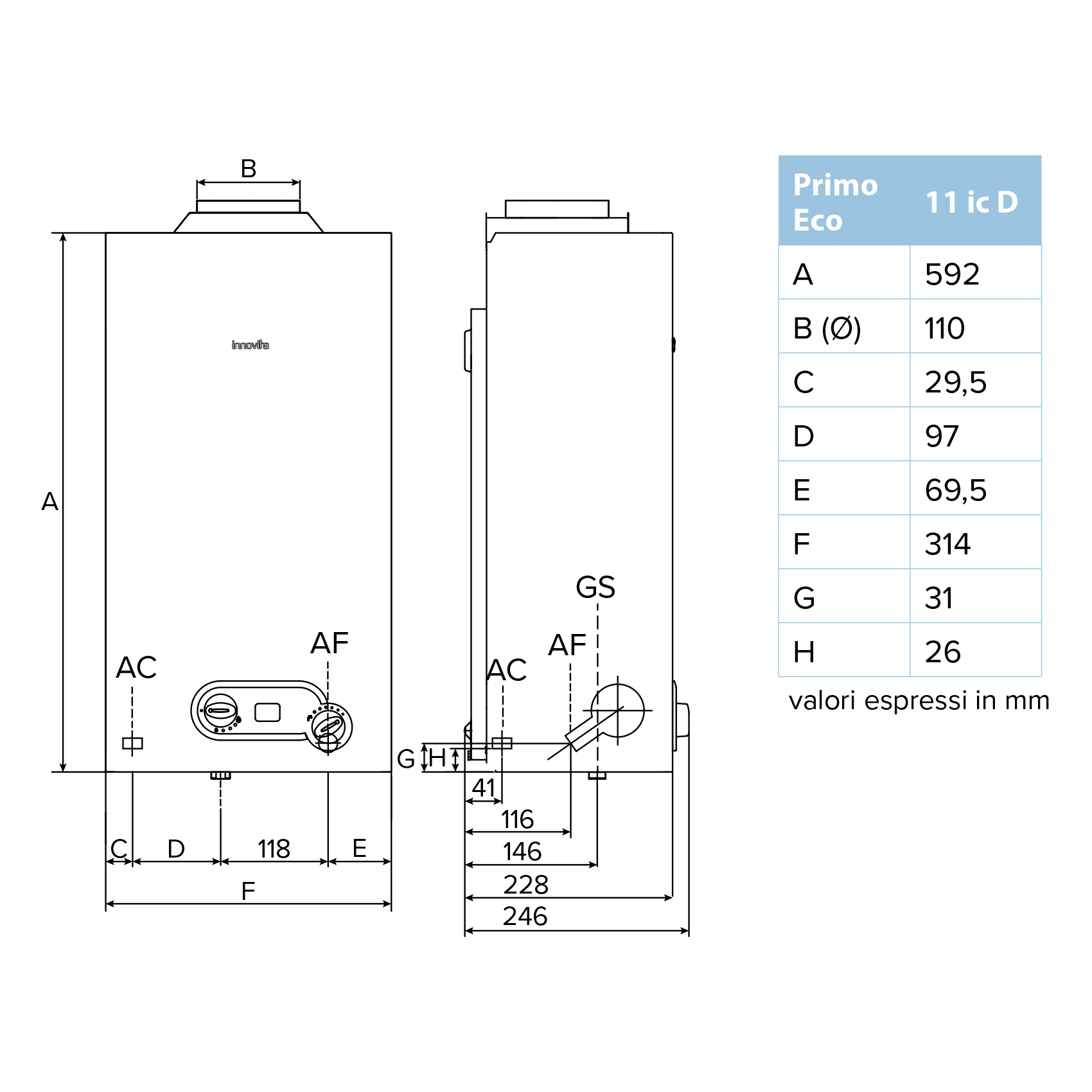

Dimensions in mm:
| 11 premier echo ic D |
First echo 14 ic D |
|
|---|---|---|
| A | 592 | 650 |
| B ø | 110 | 130 |
| C | 29.5 | 34 |
| D | 97 | 117 |
| E | 69.5 | 94 |
| F | 314 | 363 |
| G | 31 | 51 |
| H | 26 | 45 |
| HW | 1/2 M | 1/2 M |
| GAS | 1/2 M | 1/2 M |
| CW | 1/2 M | 1/2 M |
Hot water outlet HW
Gas inlet GAS
Cold water inlet CW
ErP directive data:
First echo |
First echo |
|
|---|---|---|
| Loading profile | M | L |
| Energy efficiency class | A | A |
| Water heating energy efficiency | 72% | 75% |
| Sound power level | 62 dB | 62 dB |
| Annual energy consumption | 0 kWh | 0 kWh |
| Annual consumption of fuel |
6 Gj | 12 Gj |
| Emissions of nitrogen oxides G20 |
26 | 34 |
Technical data:
Data valid for the following gases: MTN (G20) - LPG (G30) - LPG (G31)
| First echo 11 ic D | First echo 14 ic D | |
|---|---|---|
| Nominal technical capacity (kW) | 21.7 | 27.2 |
| Nominal useful power (kW) | 19.3 | 24.3 |
| Minimum heat input (MTN - LPG) (kW) | 9.8 - 10.8 | 10.8 - 13.9 |
| Minimum useful power (MTN - LPG) (kW) |
8.7 - 9.6 | 9.7 - 12.3 |
| Starting water flow (l/min) |
2.5 | 2.5 |
| Max. water inlet pressure (bar) |
10.0 | 10.0 |
| Min. water inlet pressure (bar) |
0.2 | 0.2 |
| Flue diameter (mm) |
110 | 130 |
Product code: 30001040
