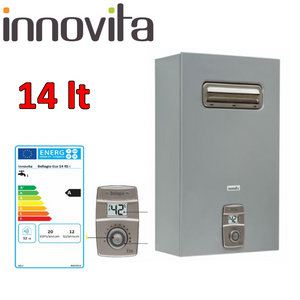

BELLAGIO INSTANTANEOUS GAS WATER HEATER

SEALED CHAMBER - LOW EMISSIONS 14Lt - MTN

Innovita instantaneous gas water heaters:

Many years of experience in the design and manufacture of instantaneous gas water heaters.

Innovita is now able to offer a complete and varied range of water heaters with low nitrogen oxide (NOx) emissions for indoor and outdoor use.

Designed to withstand difficult temperature conditions and can also be controlled from inside your home with a remote control.

Innovita instantaneous gas water heaters manage the water temperature provided thanks to the wide flame modulation that equips the range.

The simplest and consolidated "proportional" open-chamber versions, to the maximum; sophisticated and efficient electronic modulation of the sealed-chamber versions.

Advantages:

• Low polluting emissions
• High performance
• Minimum starting water pressure
• Electronic flame modulation
• ACC (Automatic Combustion Control) system to control and verify combustion
• High comfort in terms of healthcare and stability of hot water temperature
• Rapid response to user demands thanks to the standard flow meter
• Compact size
• Simple maintenance thanks to the accessibility of each component from the front
• Choice between methane gas and LPG
• Ideal for residential and commercial installations
• Intuitive display interface

FEATURES:

- 14L/min;

- Low polluting emissions;

- High performance;

- Type A2 installation (designed for outdoor installation in a partially protected location): does not require smoke extraction/evacuation systems;

- High resistance to UV rays and atmospheric agents thanks to the polyester paint coating and the use of materials subjected to specific treatments;

- Minimum starting water pressure;

- Electronic flame modulation;

- ACC (Automatic Combustion Control) system to control and verify combustion;

- High health comfort with stable hot water temperature;

- Rapid response to user demands thanks to the standard flow meter;

- Anti-freeze protection (-15°C) as standard;

- Compact size;

- Simple maintenance thanks to the accessibility of each component from the front;

- Choice between methane and LPG;

- Ideal for residential and commercial installation;

- Interface with intuitive display;

- Possibility of connection with remote control;

- IPX5D protection rating;

- Water overheating control device;

- NTC temperature control probe;

- Ignition and flame control by ionization with a single electrode;

- Display indicating operating status, temperature and alarms;

- ErP Ready;

- CE Certified;

TECHNICAL DATA:

- Electrical consumption with the device running: 59W;

- Electrical consumption in anti-freeze mode: 85W;

- Nominal heat input: 27.0 kW;

- Nominal useful load: 24.3 kW;

- Minimum heat input: 10.0 kW;

- Minimum useful flow: 9.0 kW;

- Starting water flow: 2.0 l/min;

- Maximum water inlet pressure: 10 bar;

- Minimum water inlet pressure: 0.13 bar;

SIZE:

- H 619 x W 385 x D 245;

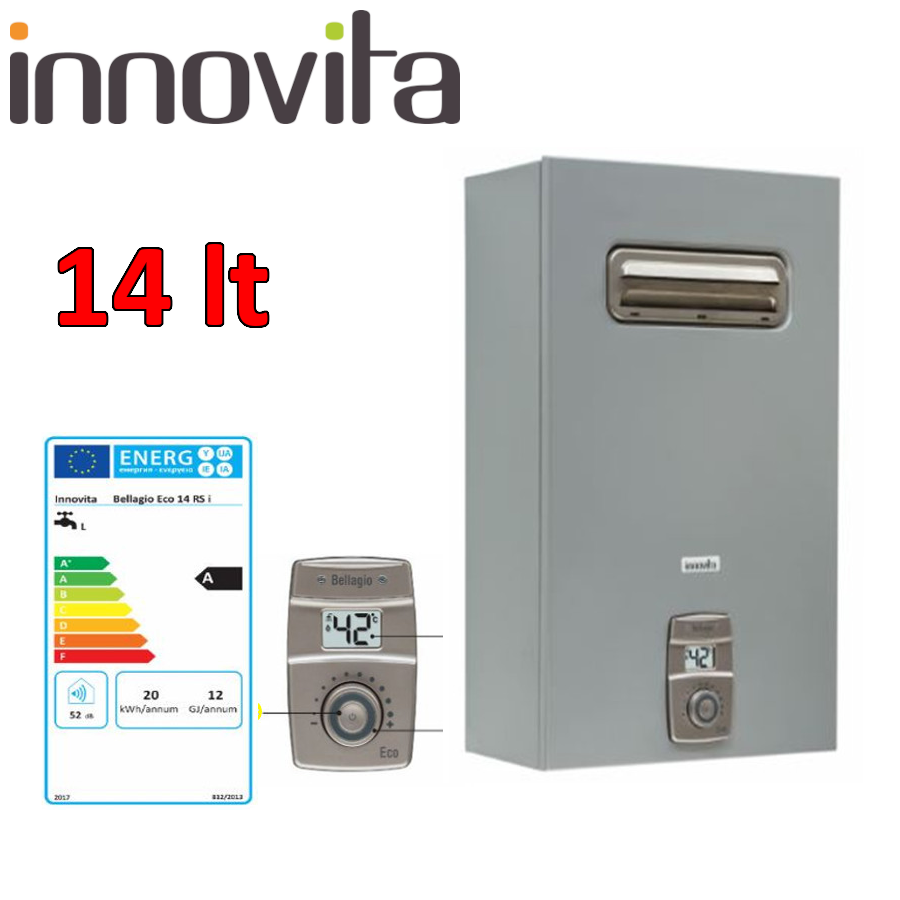

USER INTERFACE:

A - Digital display;

B - On/off/RESET button;

C - Water temperature setting selector;

Product code: 30006805
