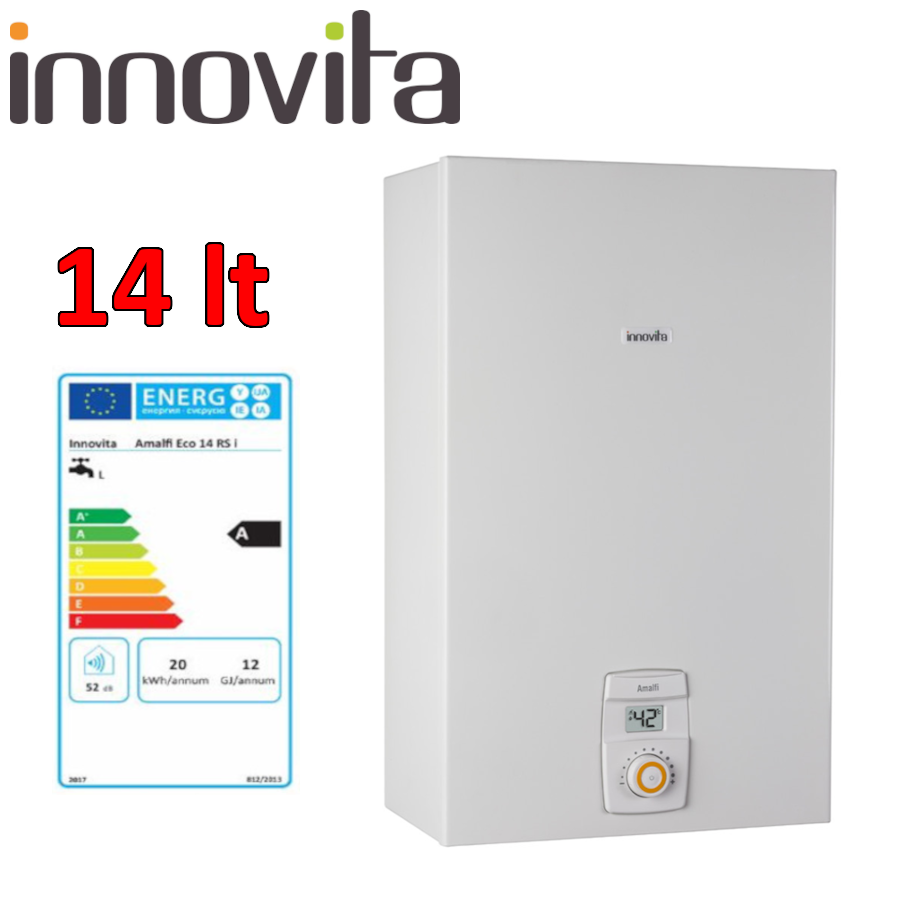

AMALFI INSTANTANEOUS GAS WATER HEATER
SEALED CHAMBER - LOW EMISSIONS 14Lt - MTN
Innovita instantaneous gas water heaters:
Many years of experience in the design and manufacture of instantaneous gas water heaters.
Innovita is now able to offer a complete and varied range of water heaters with low nitrogen oxide (NOx) emissions for indoor and outdoor use.
Designed to withstand harsh temperature conditions and can also be controlled from inside your home thanks to the remote control.
Innovita instantaneous gas water heaters manage the water temperature supplied thanks to the wide flame modulation that equips the range.
the simplest and consolidated "proportional" versions with an open chamber, to the maximum; sophisticated and high-performance electronic modulation of the sealed chamber versions.
Advantages:
• Low polluting emissions
• High performance
• Minimum starting water pressure
• Electronic flame modulation
• ACC (Automatic Combustion Control) system to control and verify combustion
• High comfort in terms of healthcare and hot water temperature stability
• Quick response to user demands thanks to the standard flow meter
• Compact size
• Easy maintenance thanks to the accessibility in front of each component
• Possibility of choosing between natural gas and LPG
• Ideal for residential and commercial installations
Intuitive display interface
Features:
• Electrical protection rating IPX5D
• Water overheating control device
• NTC temperature control probe
• Ignition and flame ionization control with a single electrode
• Display indicating operating status, temperature and alarms
• ErP ready
• CE Certification
Dimensions in mm:
| Amalfi Eco 14 RS i | |
|---|---|
| AC | 1/2 M |
| G | 3/4 M |
| AF | 1/2 M |
Hot water outlet AC
Gas inlet G
Cold water inlet AF
ErP Directive Data:
| Amalfi Eco 14 RS i | |
|---|---|
| Load profile | M |
| Energy efficiency class | A |
| Water heating energy efficiency | 71% |
| Sound power level | 52 db(A) |
| Annual energy consumption | 16 kWh |
| Annual fuel consumption | 6 Gj |
| Nitrogen oxide emissions from G20 | 35 |
Technical Data:
Data valid for the following gases: MTN (G20) - LPG (G30) - LPG (G31)< /p>
| Amalfi Eco 11 RS i | |
|---|---|
| Power consumption (W) | 59 |
| Nominal technical capacity (kW) | 27.0 |
| Nominal useful power (kW) | 19.3 |
| Minimum heat input (kW) | 4.5 |
| Minimum useful power (kW) |
4.2 |
| Starting water flow rate (l/min) |
2.0 |
| Max. water inlet pressure (bar) |
10.0 |
| Min. water inlet pressure (bar) |
0.13 |
| Flue gas exhaust/air intake pipe diameter (mm) |
60/100 80/80 |
Product code: 30006809
