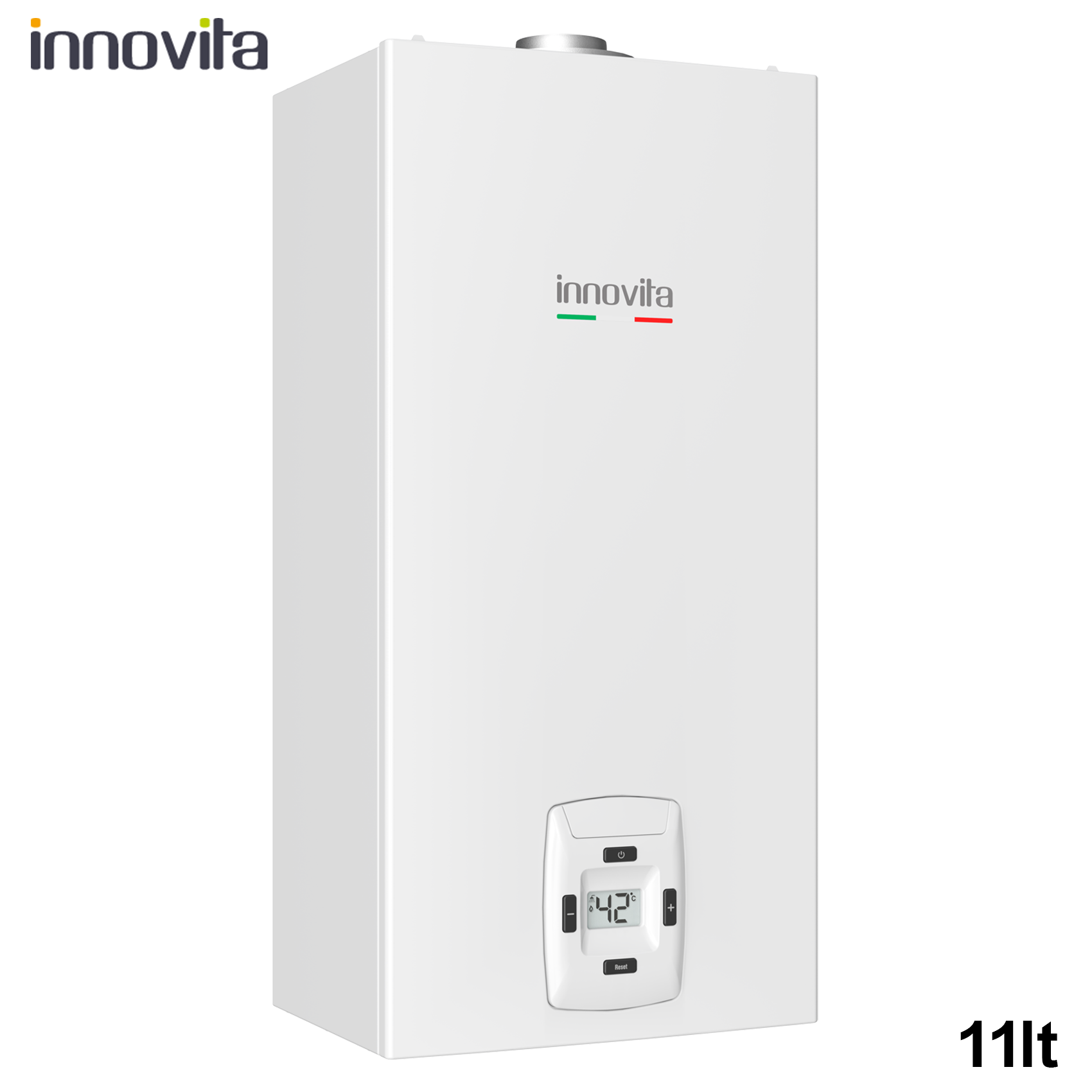

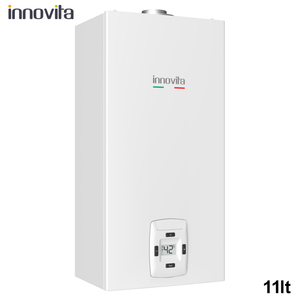

AMALFI INSTANTANEOUS GAS WATER HEATER
SEALED CHAMBER - LOW EMISSION MTN
Innovita instant gas water heaters:
Many years of experience in the design and manufacture of instantaneous gas water heaters.
Innovita is today able to offer a complete and varied range of water heaters with low nitrogen oxide (NOx) emissions for indoor and outdoor use.
Designed to withstand difficult temperature conditions and can also be controlled from inside your home thanks to the remote control.
Innovita instant gas water heaters manage the temperature of the supplied water thanks to the wide flame modulation that equips the range.
the simplest and consolidated "proportional" open chamber versions, to the maximum; sophisticated and performing electronic modulation of the sealed chamber versions.
Advantages:
• Low polluting emissions
• High performance
• Minimum starting water pressure
• Electronic flame modulation
• ACC (Automatic Combustion Control) system to control and verify combustion
• High comfort in healthcare and hot water temperature stability
• Quick response to user requests thanks to the standard flow meter
• Compact size
• Easy maintenance thanks to the accessibility in front of each component
• Possibility of choice between methane gas and LPG
• Ideal for residential and commercial installations
Intuitive display interface
Features:
• Electrical protection rating IPX5D
• Water overheating control device
• NTC temperature control probe
• Ignition and flame ionization control with a single electrode
• Display indicating operating status, temperature and alarms
• ErP ready
• CE certification

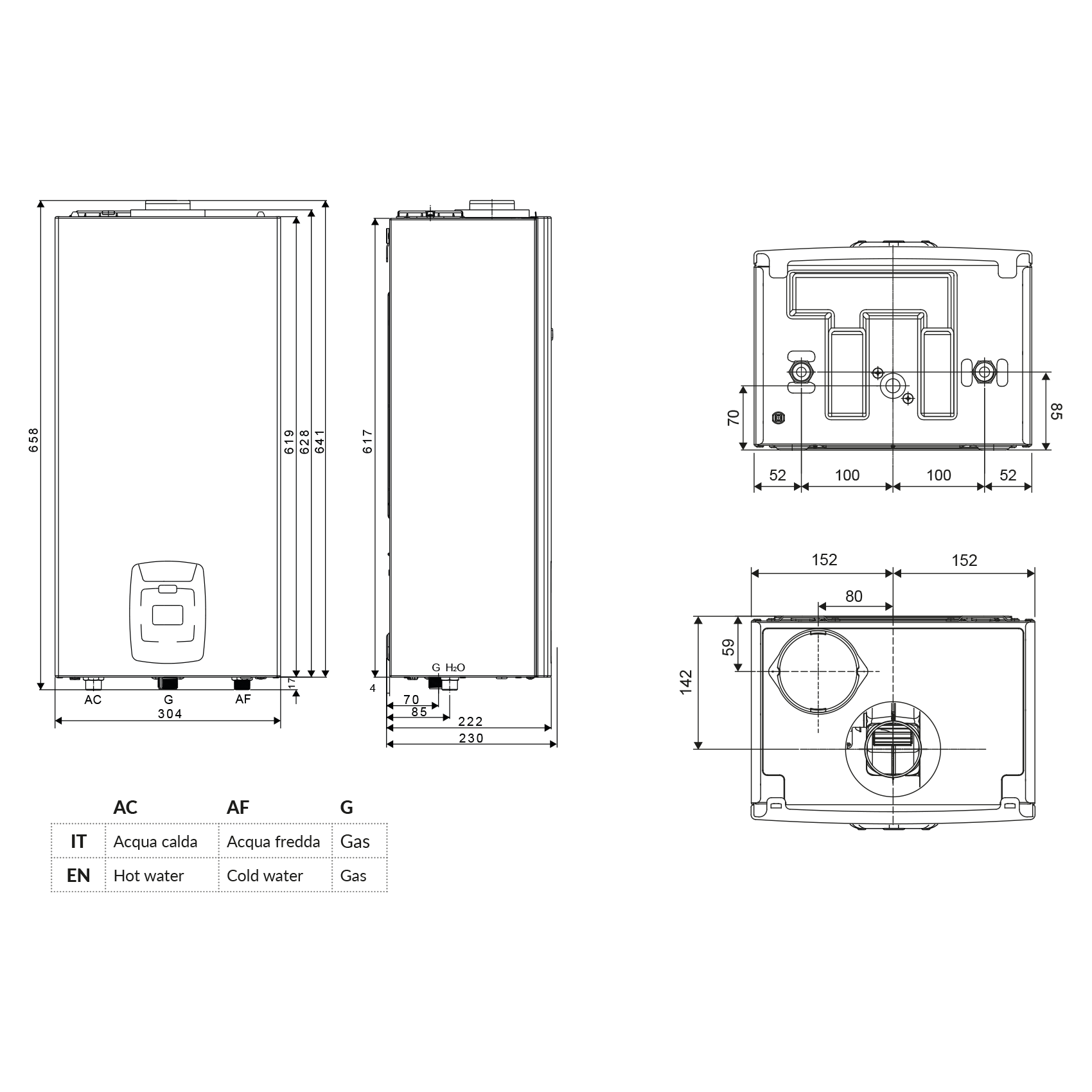

Dimensions in mm:
| Amalfi Eco 11 RS i | |
|---|---|
| AC | 1/2 M |
| G | 3/4 M |
| AF | 1/2 M |
Hot water outlet AC
Gas inlet G
Cold water inlet AF
ErP directive data:
| Amalfi Eco 11 RS i | |
|---|---|
| Loading profile | M |
| Energy efficiency class | A |
| Water heating energy efficiency | 71% |
| Sound power level | 52 db(A) |
| Annual energy consumption | 16 kWh |
| Annual fuel consumption | 6 Gj |
| Nitrogen oxide emissions from G20 | 35 |
Technical data:
Data valid for the following gases: MTN (G20) - LPG (G30) - LPG (G31)< /p>
| Amalfi Eco 11 RS i | |
|---|---|
| Power consumption (W) | 41 |
| Nominal technical capacity (kW) | 21.5 |
| Useful nominal power (kW) | 19.3 |
| Minimum heat input (kW) | 9.5 |
| Minimum useful power (kW) |
8.6 |
| Starting water flow (l/min) |
2.0 |
| Max. water inlet pressure (bar) |
10.0 |
| Min. water inlet pressure (bar) |
0.13 |
| Diameter of flue gas/air intake pipes (mm) |
60/100 80/80 |
Product code: 30006797
