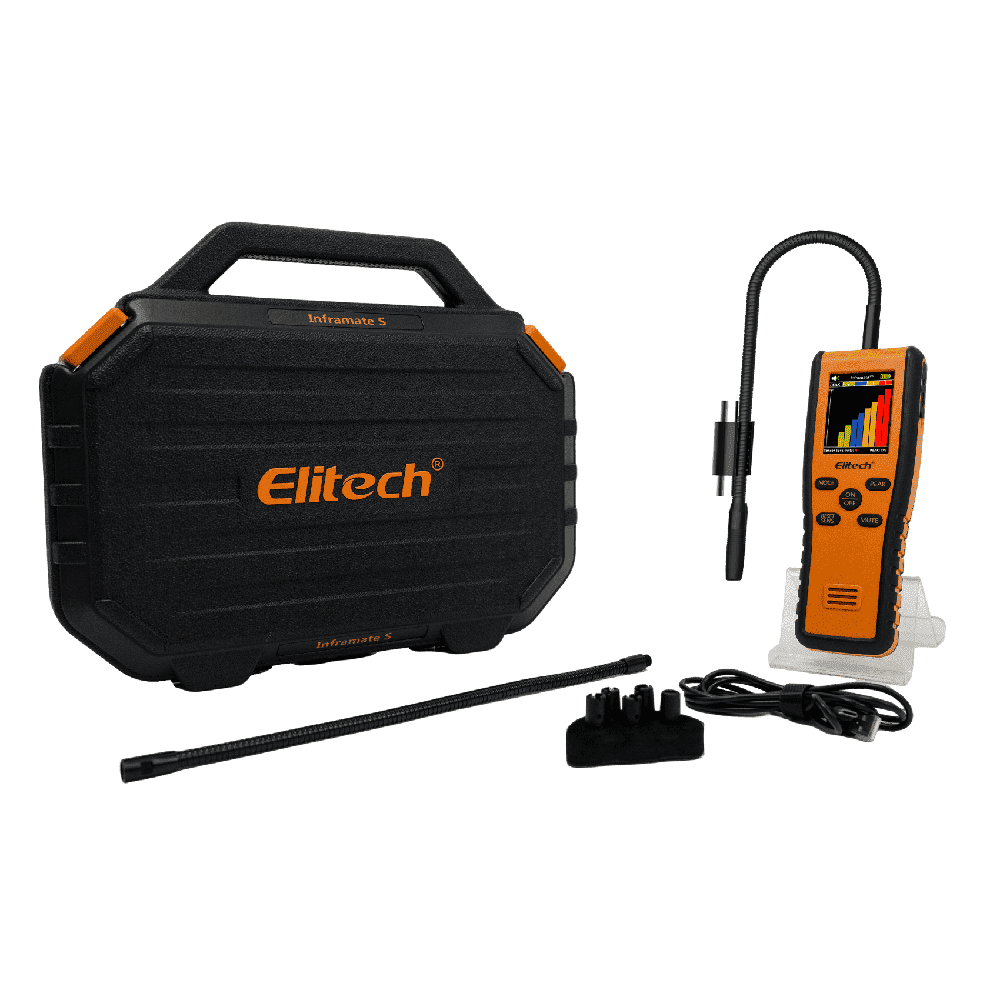

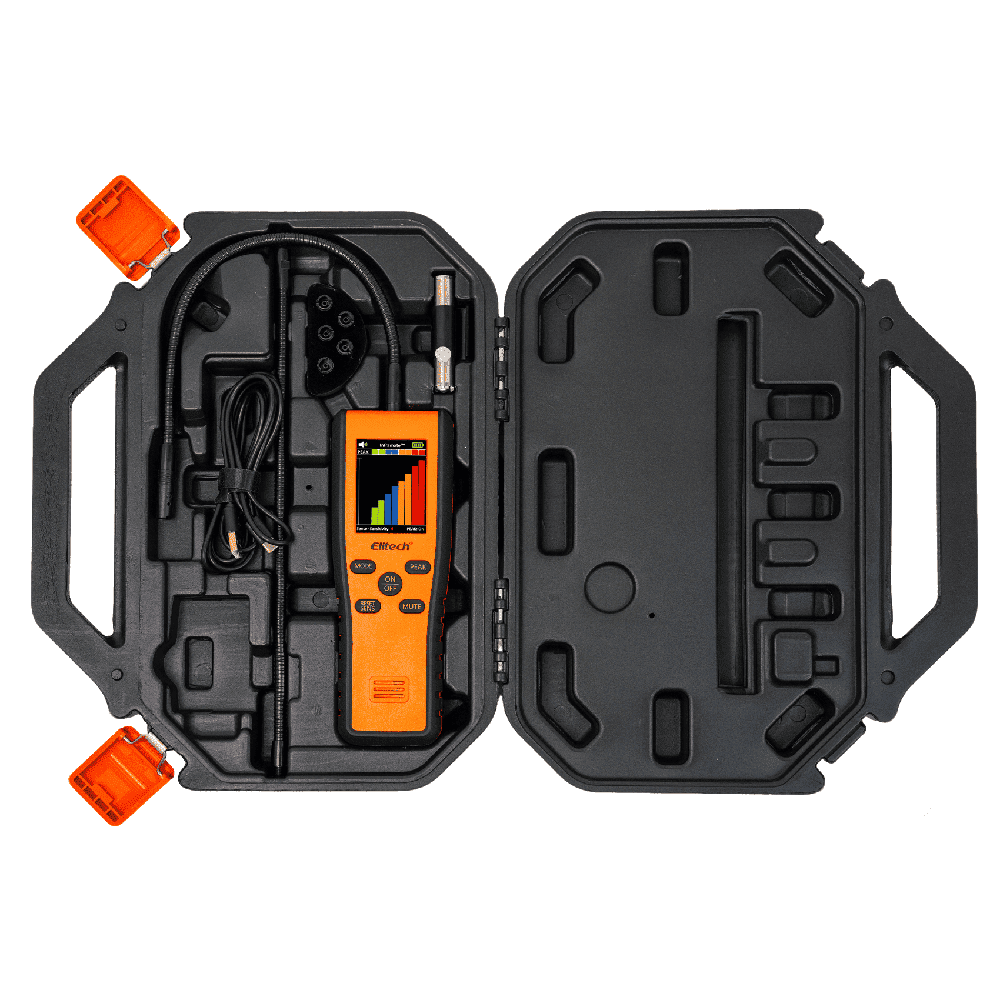

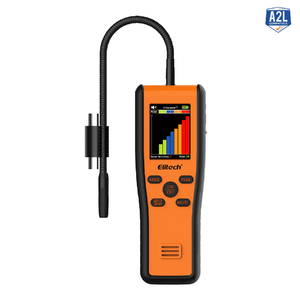

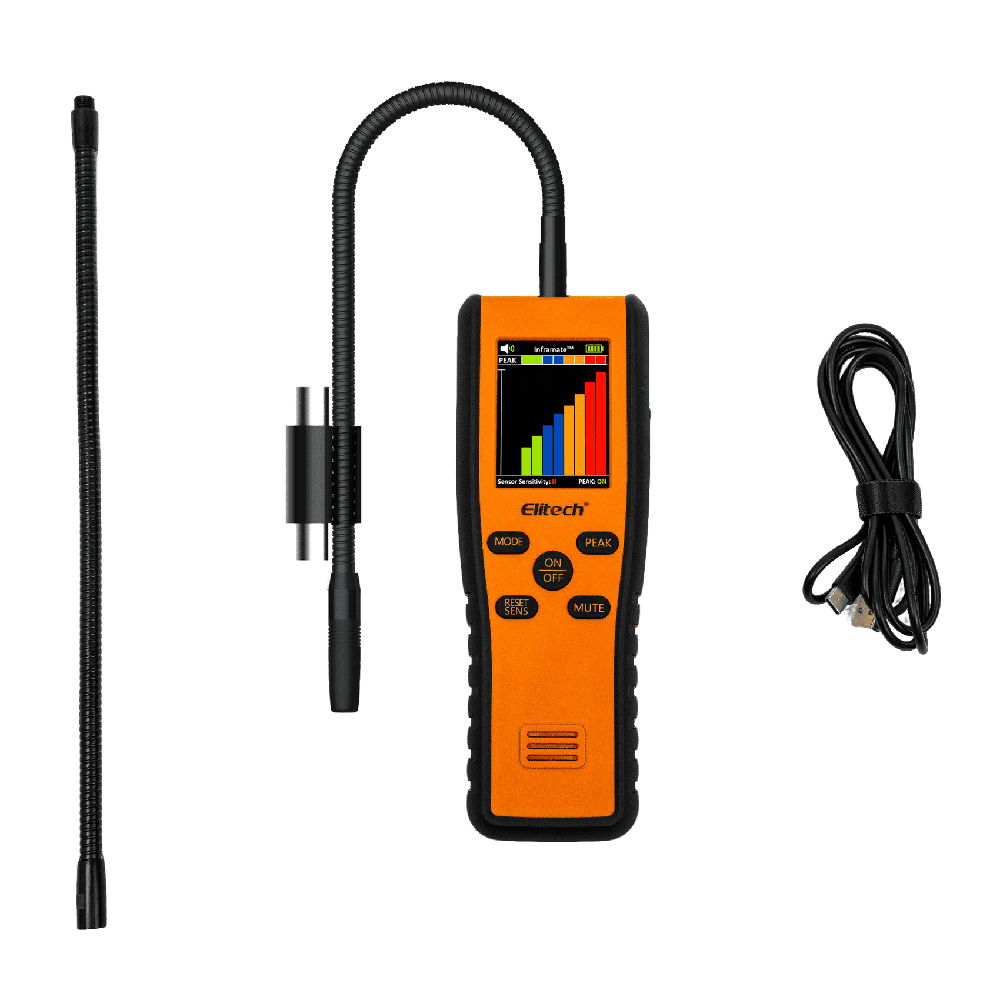

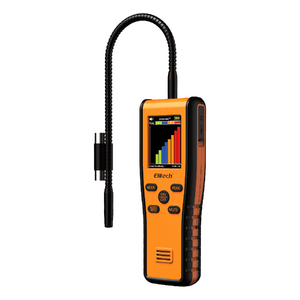

INFRAMATE-D Elitech Electronic Refrigerant Leak Detector 4g/year

Description:

The Inframate D is a portable refrigerant leak detector that features an advanced combination of infrared sensors and heating diodes. This detector combines infrared sensors and heating diodes and offers two operating modes. It makes it easy to detect refrigerant leaks in commercial refrigeration systems, restaurant soda fountains, or any other system. It easily locates even the most subtle leaks. The Inframate D detects leaks down to 4 grams per year (0.14 oz/year) and features a TFT screen. It has three sensitivity levels to minimize false alarms. A quick, automatic 30-second self-calibration upon power-up ensures optimal performance. It is equipped with a removable and rechargeable lithium-ion battery that powers the IR-200 for 8 hours of continuous operation before needing a recharge.
Main feature
Compatible with many devices. Refrigerants, including HFC, HC, HCFC, CFC, HFO-1234
Range and fixed-point detection, applicable to all complex conditions
Real-time display of concentration curve and peak recording
Low power consumption and extended battery life
High-performance sensor tip, prevents water infiltration
Automatic shutdown after 10 minutes

Features:

• Alarm modes: audible and visual alarm; TFT indication
• Automatic shutdown: after 10 minutes of inactivity
• Operating time: 8 hours of continuous use on a single charge
• Operating environment: Temperature: -10 °C to 52 °C; Humidity: Maximum 90% RH (non-condensing) Dimensions: 201 × 72 × 35 mm (7.9 × 2.8 × 1.4 inches) Weight: 450 g (15.9 oz) Charging voltage/current: 5 V DC, 1 A Charging time: approximately 4 minutes hours
• Battery: 2 18650 lithium batteries
• Complies with standards: CE, EN14624:2012, RoHS, SAE_J1627, SAE_J2791, SAE_J2913

Product Code: INFRAMATE-D
