LIQUID and MOISTURE INDICATOR
for REFRIGERATED SYSTEMS
1/2 male/male - GAR SPU-4MM
FEATURES:

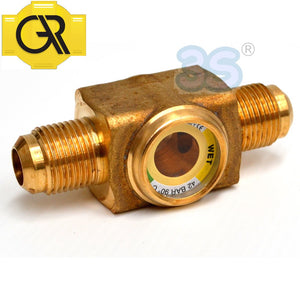

GAR liquid and moisture indicators are constructed from a single forged brass monobloc with a riveted sight glass to ensure a perfect seal.
SPU models are equipped with a color changer highly sensitive to moisture, acid-resistant, and compatible with all refrigerants.
These features allow for safe and immediate control of the moisture content and the liquid state of the refrigerant thanks to the color change of the card (yellow = moisture / green = dry).
Construction materials
Forged brass body CW 617N
Operating conditions
Temperature - 40°C + 70°C
Working pressure 42 bar
Applied standards: EN 378-2 97/23/CE (PED) 2002/95/EC (RoHS)
Product code: SPU-4MM
